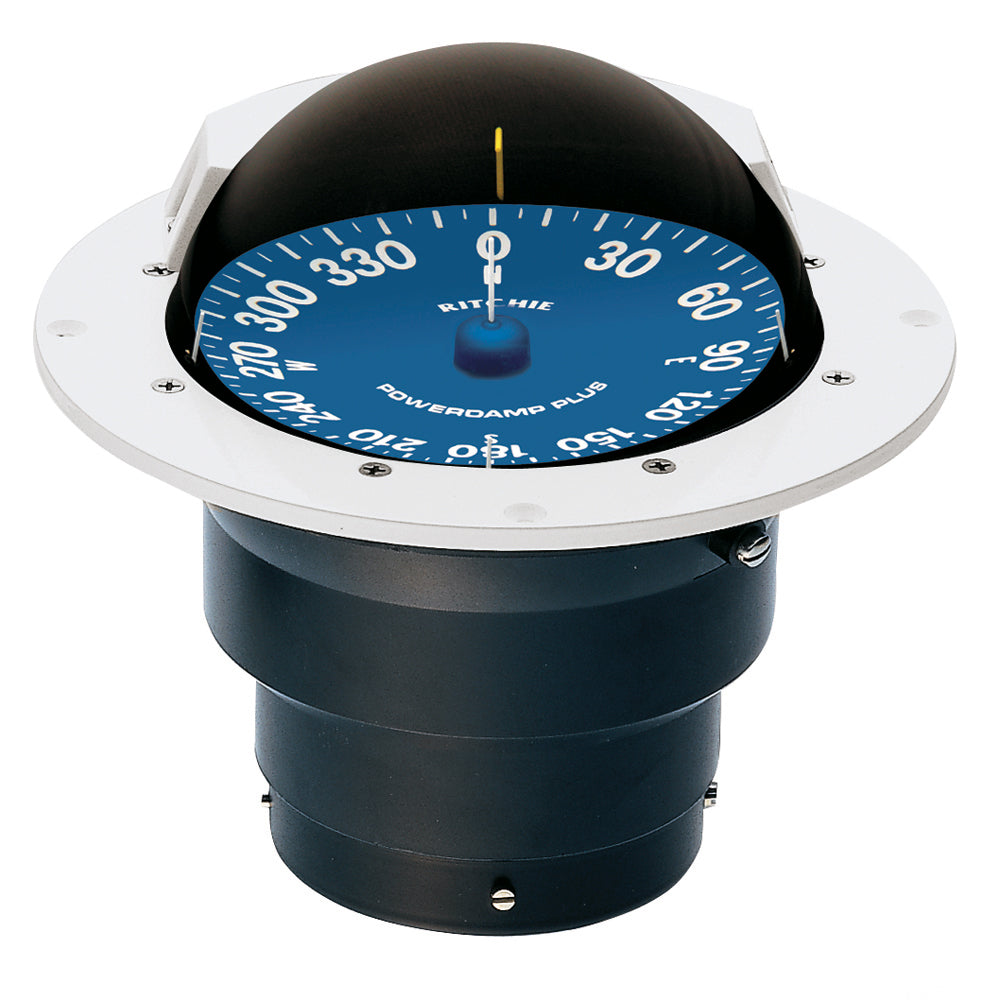

Ritchie SS-5000W SuperSport Compass - Flush Mount with PowerDamp Plus Dial and 12V LED Lighting

SuperSport Compass

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp Plus dial. This dial technology features the PowerDamp dial skirt to prevent oscillation, larger DirectiveForce magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 5" (127 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals

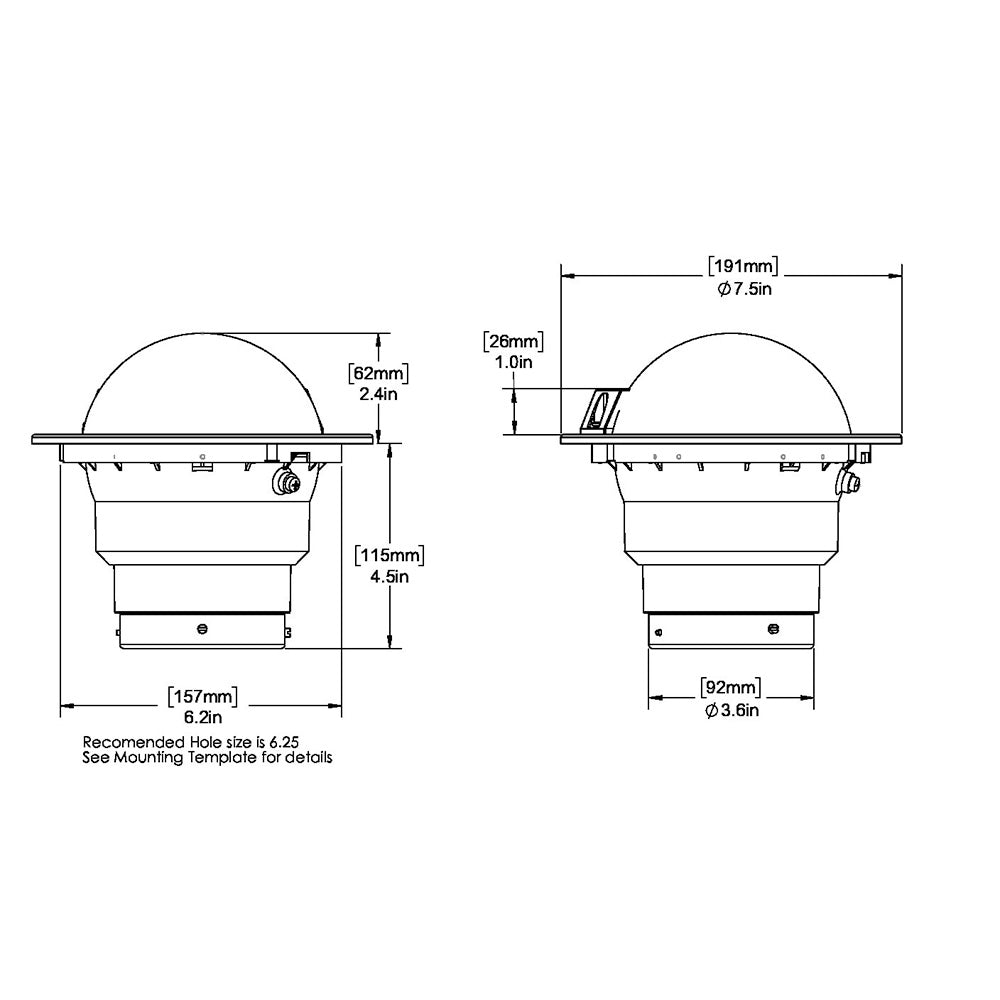

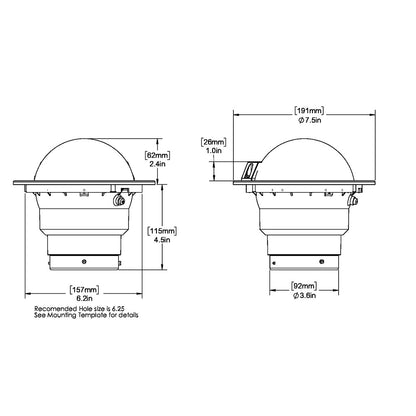

• Easily Installed, Fits 6 1/4 (15.88 cm) Mounting Hole
• Built-in Compensators to Easily Adjust for deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting Standard
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 5 lbs 12 oz (2.6 kg)

Notes:

12v lighting standard 24 32v lighting options are available.

The Ritchie SS-5000W SuperSport Compass is engineered for offshore race boats, delivering precision navigation with advanced features. The 5-inch (127 mm) PowerDamp Plus dial ensures stable readings by incorporating a dial skirt that prevents oscillation, along with larger DirectiveForce magnets for quick lock-on. The compass also features extra-large steel pivots and jewels that facilitate smooth and rapid movement, making it ideal for high-performance marine environments. Its high-visibility blue open face dial is equipped with large white numerals, ensuring easy readability even in challenging conditions. Designed for straightforward installation, it fits a 6 1/4 inch mounting hole, allowing for seamless integration into various vessel dashboards. Built-in compensators enable easy adjustment for deviation, ensuring accurate navigation, while the internal gimbal system maintains maximum stability during pitch and roll movements, critical in rough seas. The compass is equipped with 12V green LED lighting as standard, providing clear visibility during night navigation. It is fully repairable and backed by Ritchie's exclusive 5-year warranty, offering durability and long-term reliability. The compass weighs approximately 5 pounds 12 ounces (2.6 kg), making it suitable for most marine applications. Optional lighting voltages at 24V and 32V are available to match different electrical systems. For detailed installation and operation instructions, refer to the provided owners manual link. Overall, the Ritchie SS-5000W SuperSport Compass combines advanced technology, durability, and ease of use, making it an essential instrument for offshore racing and demanding marine navigation scenarios.

Features:

• 5-inch PowerDamp Plus high-visibility blue open face dial with large white numerals

• Easily installed with a 6 1/4 inch mounting hole

• Built-in compensators for easy deviation adjustment

• Internal gimbal system for maximum stability during pitch and roll

• Standard 12V green LED lighting for night visibility

• Fully repairable for long-term maintenance

• Exclusive 5-year Ritchie warranty
