SKU:225252
Many years of Polaris ATV’s used the SurePower ECM module that controlled many things on the vehicle, including circuit breakers, cooling fan operation, and most importantly voltage regulation for the battery charging system. Most of these functions are reliable, except for the most important, the voltage regulator rectifier! The voltage regulator often fails, and leaves you faced with replacing the entire module just for this one function, which is likely to fail again.

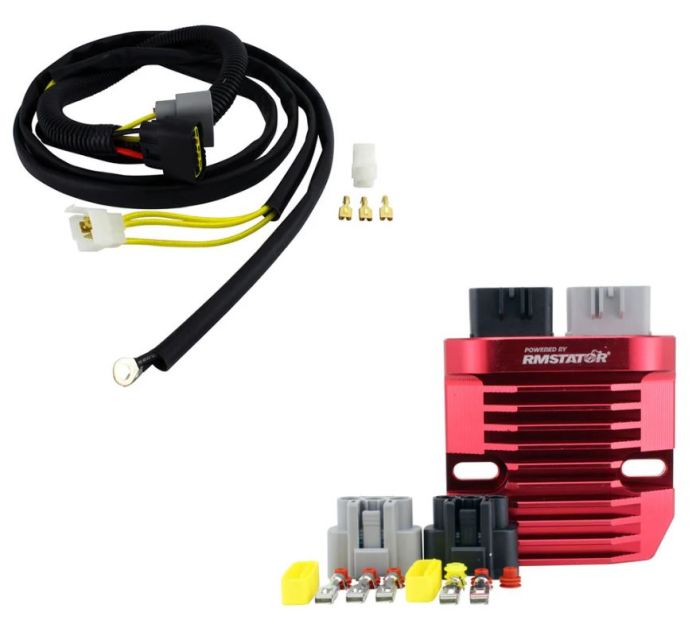

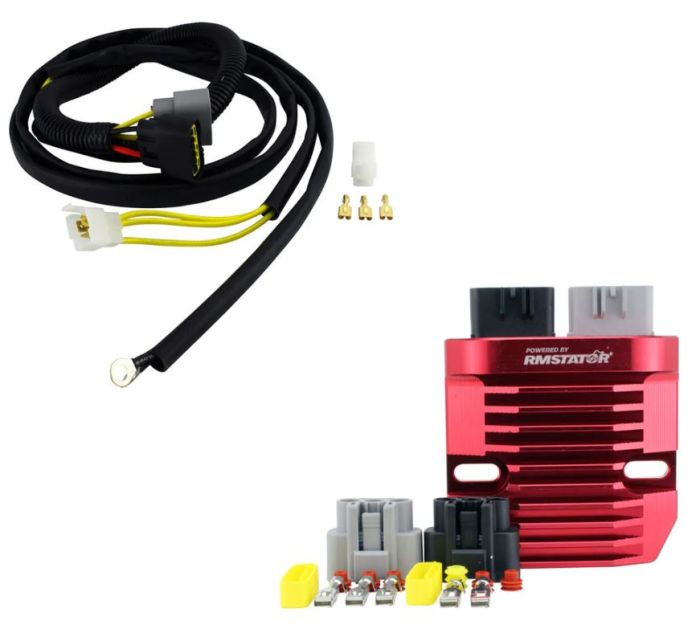

RMSTATOR now provides a SurePower module Regulator Bypass kit to eliminate this problem on these popular ATVs. Our kit includes our heavy duty CNC aluminum SERIES voltage regulator rectifier, a plug & play wiring harness, and mounting hardware. Simply mount the new voltage regulator on your frame, plug in and route the harness directly to the stator connector and battery terminals, and you’re ready to ride. You’ll never have to worry about a failing voltage regulator or SurePower replacement again.
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.
Moreover, the regulator has our new machined billet aluminum casing which dissipate heat 33% better than standard molded casing.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.
INSTALL LIKE A PRO
We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Automotive grade wiring harness with OEM-quality heavy-duty connectors
Made with the same Delphi connectors as OEM Polaris parts, our wiring harnesses are manufactured in a factory with controlled quality processes. They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.
Plug & Ride design
Our voltage regulator housings are manufactured to OEM specifications for a fast and easy installation.

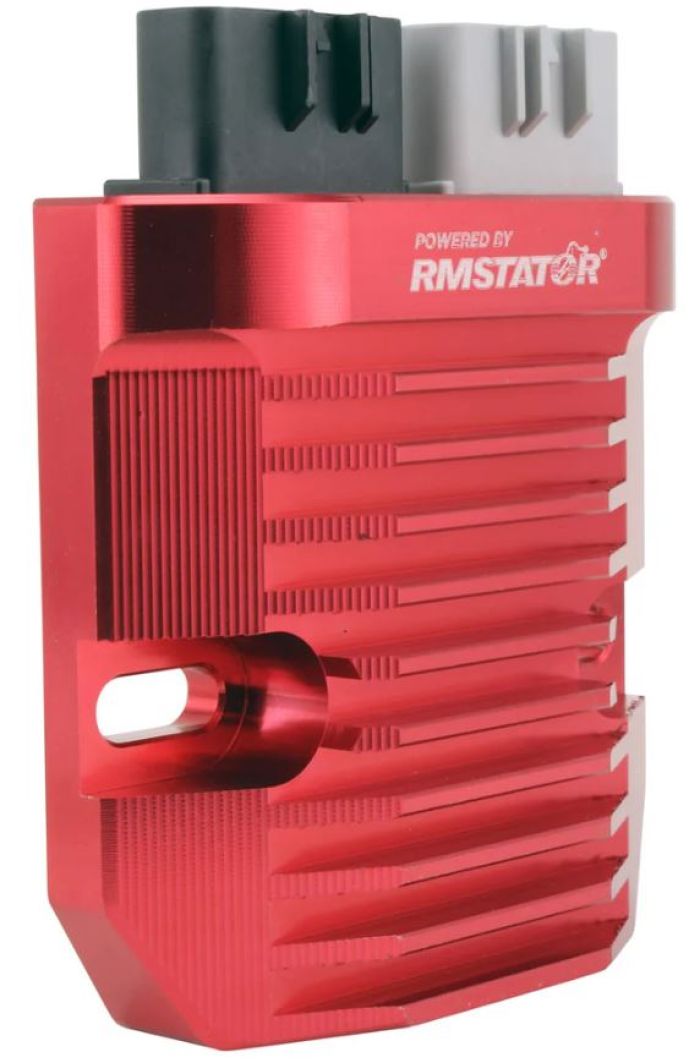

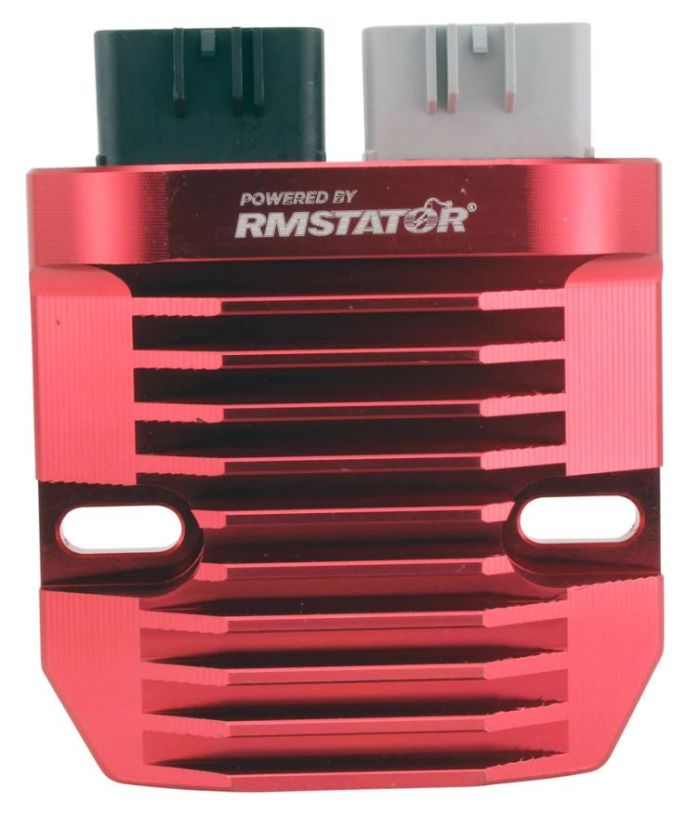

Machined Billet Aluminum SERIES Voltage Regulator Rectifier:
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Polaris SurePower Module Regulator Bypass Harness:
Wires length: 1580 mm
Number of yellow wires: 3
Number of red wires: 1
Number of black wires: 1
Number of plugs: 3
Before installing your new machined billet aluminum SERIES Voltage Regulator Rectifier :
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Vehicle Fitments
2009 Polaris Ranger 500 2x42008 Polaris Ranger 500 2x42008 Polaris Sportsman 500 6x62008 Polaris Sportsman 500 HO2007 Polaris Sportsman X2 5002007 Polaris Sportsman 500 EFI2007 Polaris Ranger 500 4x42007 Polaris Ranger 500 EFI 4x42007 Polaris Ranger 500 2x42007 Polaris Sportsman 500 6x62007 Polaris Sportsman 4502006 Polaris Ranger 700 XP2006 Polaris Ranger 700 6x6 EFI
The RMSTATOR Aluminum Regulator with SurePower ECM Bypass Harness Kit is designed to ensure reliable voltage regulation for your vehicle's electrical system. Crafted with durable aluminum, this regulator offers improved heat dissipation and long-lasting performance, making it suitable for demanding applications. The included SurePower ECM bypass harness simplifies installation and enhances system stability by seamlessly bypassing the engine control module where necessary. This kit provides a comprehensive solution for maintaining consistent electrical output, especially in custom or upgraded setups.
Installation is straightforward with all necessary components included, allowing for a secure connection to your existing wiring harness. The lightweight design minimizes additional stress on your vehicle's electrical system while providing robust regulation capabilities. Whether you're restoring a classic or upgrading a modern vehicle, this regulator kit delivers dependable power management that helps prevent voltage fluctuations and electrical issues. Trust RMSTATOR’s quality with this complete kit to enhance your vehicle's electrical reliability and performance.
Features:
