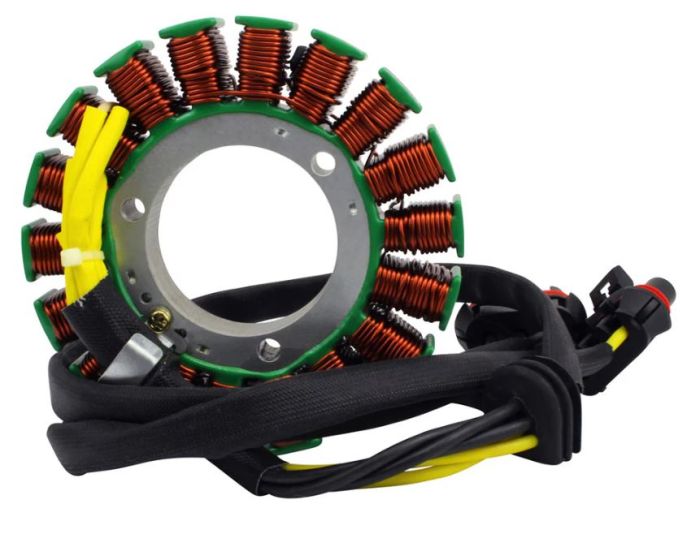

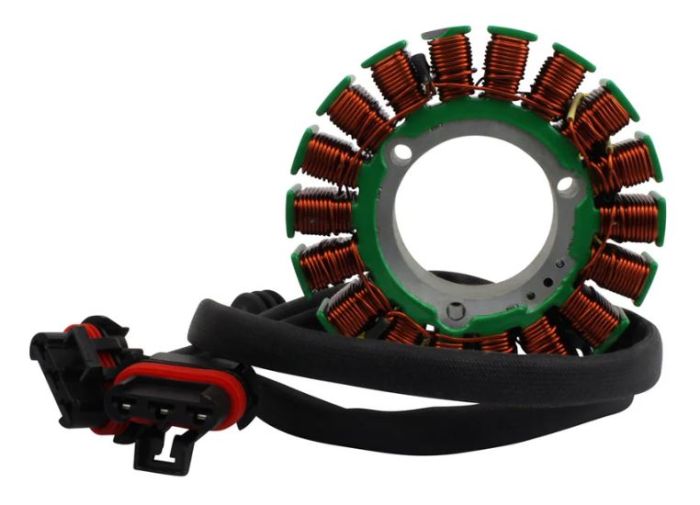

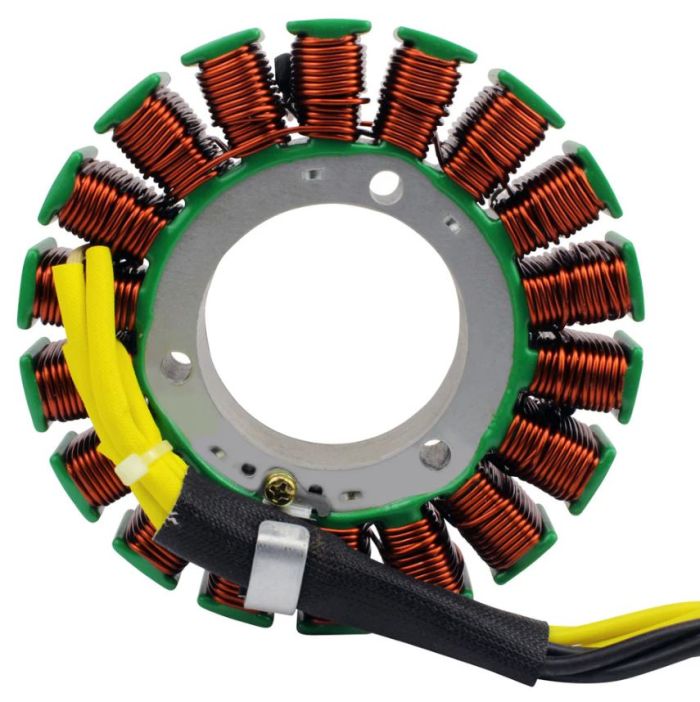

RMSTATOR Generator Stator 900W Dual Output - Part RMS010-108596

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

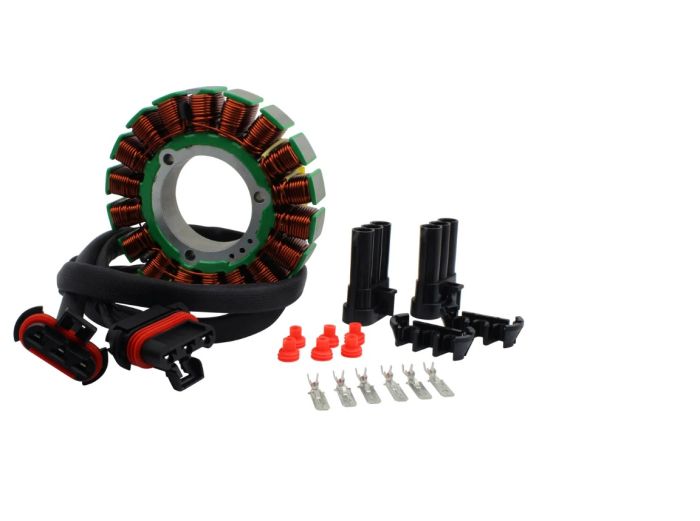

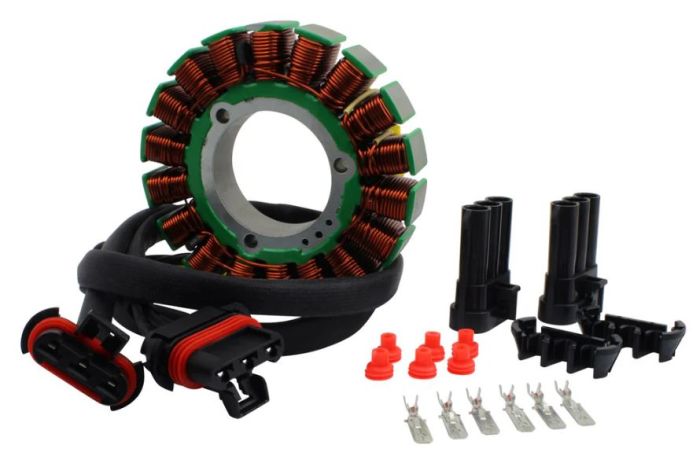

• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 126 mm
Thickness: 20 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 550 mm

Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +/-20%
Alternator: Black to Black = 0.7 ohms +/-20%

Before installing your new generator stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010"".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2025 Polaris RZR PRO XP 42025 Polaris RZR PRO XP2025 Polaris RZR PRO XP 4 Ultimate2025 Polaris RZR PRO S2025 Polaris RZR PRO XP Ultimate2025 Polaris RZR PRO S 4 Premium2025 Polaris RZR PRO S 4 Sport2025 Polaris RZR PRO S 4 Ultimate2024 Polaris RZR PRO XP 42024 Polaris RZR PRO XP2024 Polaris RZR PRO XP 4 Ultimate2024 Polaris RZR Turbo R 42024 Polaris RZR PRO XP Ultimate2024 Polaris RZR Turbo R Sport2024 Polaris RZR Turbo R Ultimate2024 Polaris RZR Turbo R Premium2023 Polaris RZR PRO XP 42023 Polaris RZR PRO XP2023 Polaris RZR PRO XP 4 Ultimate2023 Polaris RZR Turbo R 42023 Polaris RZR PRO XP Ultimate2023 Polaris RZR Turbo R Sport2023 Polaris RZR Turbo R Ultimate2023 Polaris RZR Turbo R Premium2022 Polaris RZR PRO XP 4

The RMSTATOR Generator Stator Part RMS010-108596 delivers reliable power with a robust 900-watt output, designed specifically for high-performance applications. Crafted for durability, this stator features dual output capability, providing enhanced electrical efficiency and stable power delivery for your generator system. Constructed with precision, it ensures optimal fit and function, making it an essential component for maintaining generator performance over time. The rugged design and high-quality materials used in this stator help resist wear and tear, even under demanding conditions, ensuring longevity and dependable operation. Easy to install, this part is suitable for a variety of generator models requiring a powerful and reliable stator solution.

Features:

• Power Output: 900 watts for reliable energy supply

• Dual Output: Provides two separate electrical outputs for versatile use

• Durable Construction: Built with high-quality materials for long-lasting performance

• Precision Fit: Designed for easy installation and compatibility with specific generator models

• Robust Design: Engineered to withstand demanding operational environments
