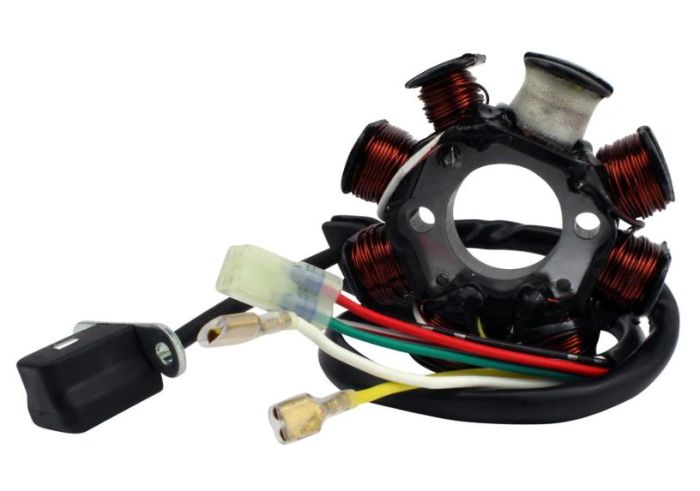

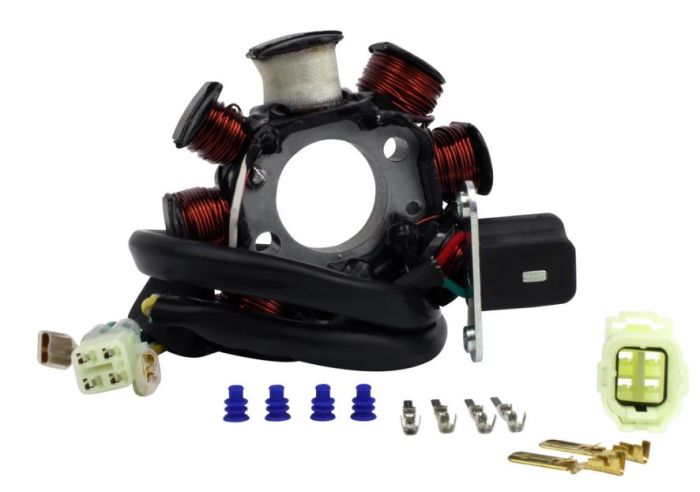

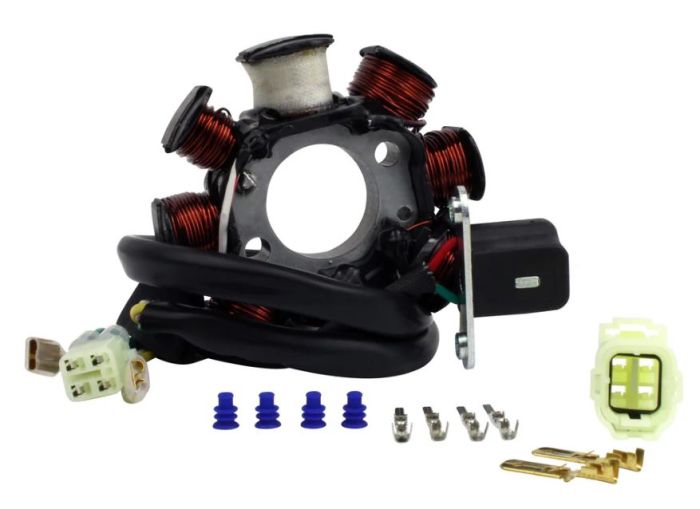

RMSTATOR Generator Stator Coil 2K-3 - Part RMS010-108513

Brand new aftermarket stator

• Direct replacement to your original unit
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included

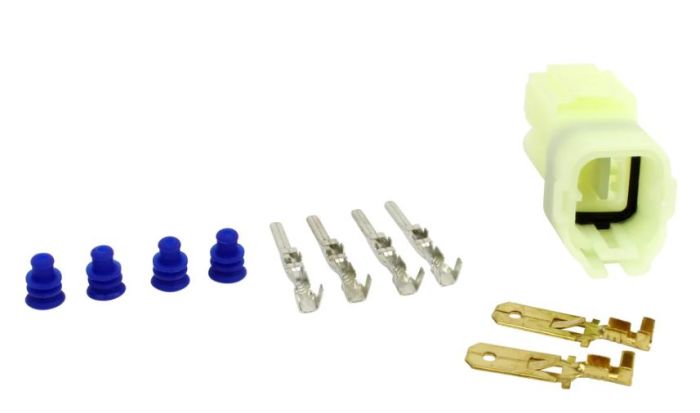

• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 13 mm
Length of wires stator to grommet: 70 mm
Length of wires grommet to plug: 420 mm
Length of pickup coil's wire to grommet: 45 mm

Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.4 ohms +-20%
Pickup: Red to Green = 101.7 ohms +-20%
Source: Black/Red to Red/White = 15.1 ohms +-20%

Before installing your new stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2016 KTM 125 EXC Euro2016 Husqvarna TE 1252016 Husqvarna TE 125 Euro2015 KTM 125 EXC Euro2015 Husqvarna TE 1252015 Husqvarna TE 125 Euro2014 KTM 125 EXC Euro2014 Husqvarna TE 125 Euro2013 KTM 125 EXC Euro2013 Husqvarna TE 125 Euro2012 KTM 200 XC-W2012 KTM 200 EXC2012 KTM 125 EXC Euro2012 KTM 200 EXC Euro2012 Husqvarna TE 125 Euro2011 KTM 200 XC-W2011 KTM 200 EXC2011 KTM 125 EXC Euro2011 KTM 200 EXC Euro2010 KTM 200 XC-W2010 KTM 200 EXC2010 KTM 125 EXC Euro2010 KTM 200 EXC Euro2009 KTM 200 XC-W2009 KTM 200 EXC2009 KTM 200 XC2009 KTM 125

The RMSTATOR Generator Stator Coil 2K-3, model RMS010-108513, is a high-quality replacement component designed to ensure optimal performance of your generator. Crafted with precision, this coil provides reliable electrical conduction essential for efficient power generation. Its durable construction is built to withstand demanding operating conditions, offering longevity and consistent performance over time. Designed for compatibility with specific generator models, this coil is an ideal choice for maintenance and repair projects to restore your equipment's functionality.
This stator coil features a robust design that emphasizes durability and electrical efficiency. Its precise manufacturing ensures a perfect fit and secure installation, reducing downtime and enhancing the overall reliability of your generator. Whether you're performing routine maintenance or addressing a faulty coil, the RMSTATOR RMS010-108513 offers a dependable solution that meets OEM standards.
Installation is straightforward for qualified technicians, and the coil's material quality helps prevent common issues such as overheating or insulation failure. Invest in this essential component to maintain the performance and longevity of your generator, ensuring it continues to operate smoothly in demanding environments. Trust RMSTATOR for quality parts designed to keep your equipment running efficiently and reliably for years to come.

Features:

• High-quality replacement generator stator coil

• Durable construction for demanding conditions

• Designed for reliable electrical conduction

• Perfect fit for specific generator models

• Easy installation for qualified technicians
