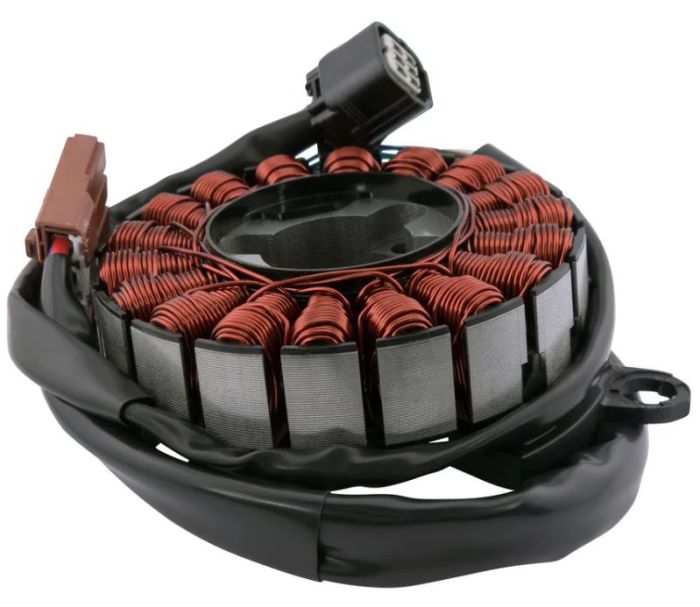

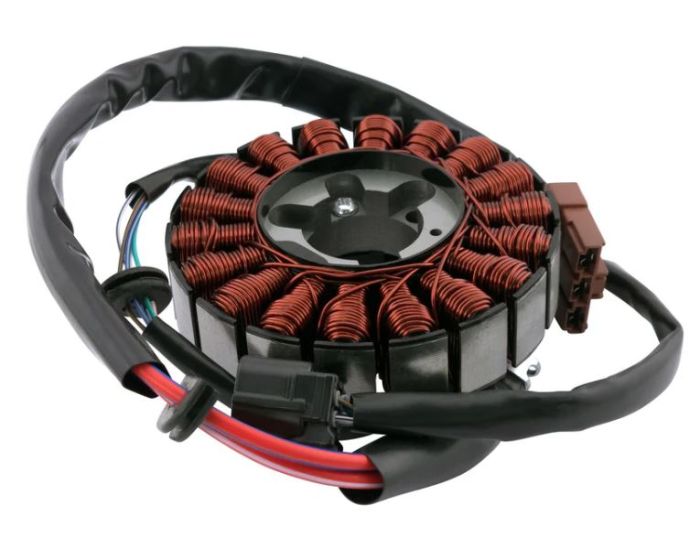

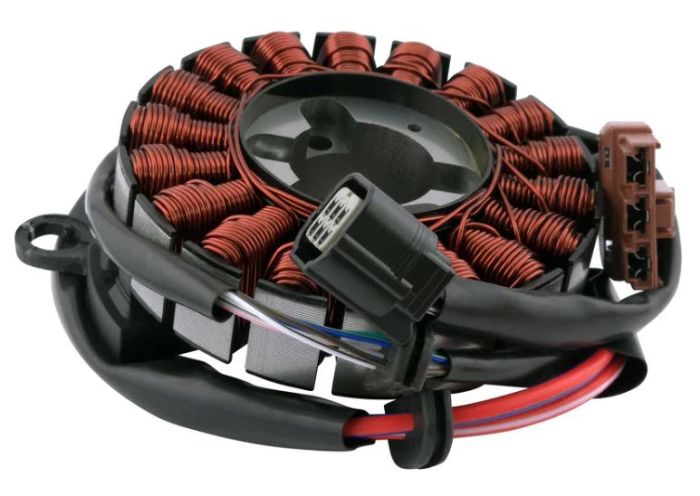

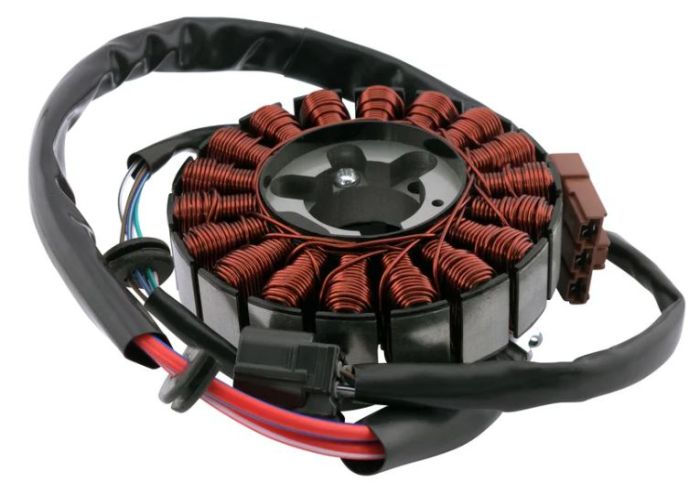

RMSTATOR Generator Stator RMS010-108527 for Reliable Engine Performance

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Crank position sensor included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:
Interior diameter: 33 mm
Exterior diameter: 108 mm
Thickness: 21 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 420 mm

Other specifications:
Number of wires: 9
Number of plugs: 2
Number of pins: 9
Number of poles: 18
Wire to wire resistance:
Alternator: Between Red/Yellow, Red/Blue and Red/White = 0.6 ohms +/-20%
Alternator: Red/Yellow, Red/Blue and Red/White to ground = O.L

Before installing your new generator stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2024 Honda SH 125i2023 Honda SH 125i2022 Honda SH 125i2021 Honda SH 125i2020 Honda SH 125i2019 Honda SH 125i2018 Honda SH 125i2017 Honda SH 125i2016 Honda SH 125i2015 Honda SH 125i2014 Honda SH 125i2013 Honda SH 125i

The RMSTATOR Generator Stator RMS010-108527 is engineered to ensure optimal electrical performance and durability in your engine system. Crafted with precision, this stator is designed to fit seamlessly within a variety of generator setups, providing consistent power output and long-lasting operation. Its high-quality construction guarantees resistance to wear and environmental factors, making it a dependable choice for both professional and DIY applications. Installation is straightforward, allowing for quick replacement and minimal downtime, which helps keep your equipment running smoothly. Whether you're maintaining machinery or upgrading existing components, the RMSTATOR RMS010-108527 stands out as a reliable and efficient solution for your generator needs.

Features:

• Designed for reliable electrical performance in generator systems

• Constructed with durable materials for long-lasting operation

• Easy to install with seamless fitment for compatible models

• Engineered to withstand environmental stressors and wear

• Optimizes engine performance through efficient power transfer
