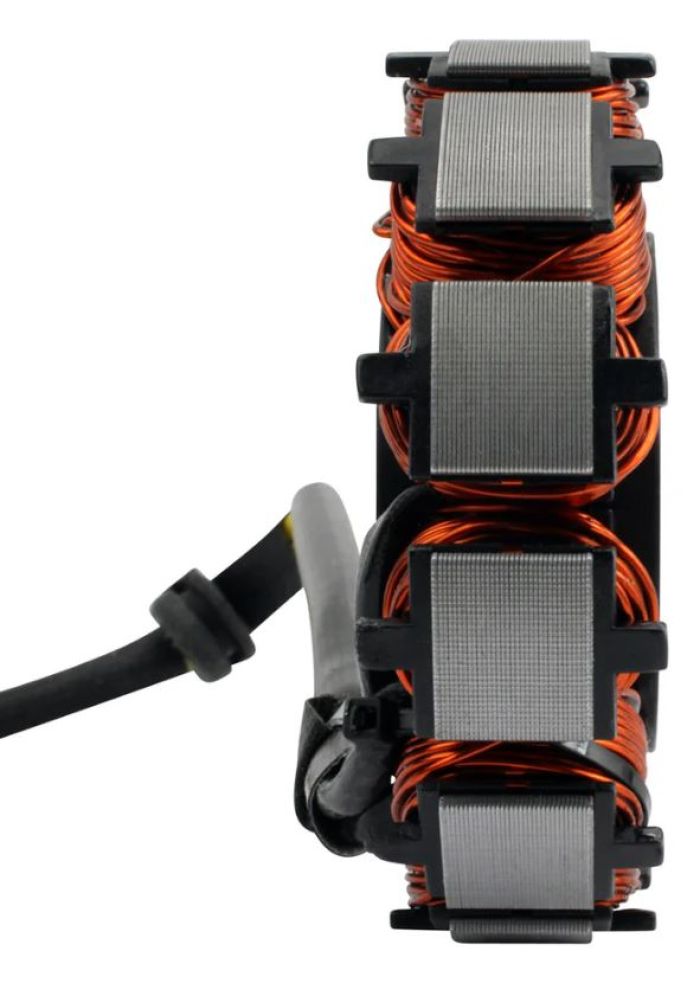

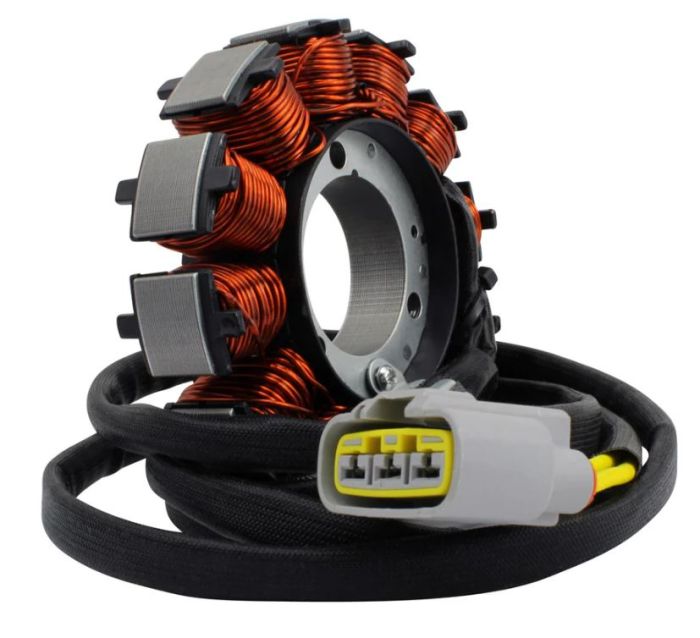

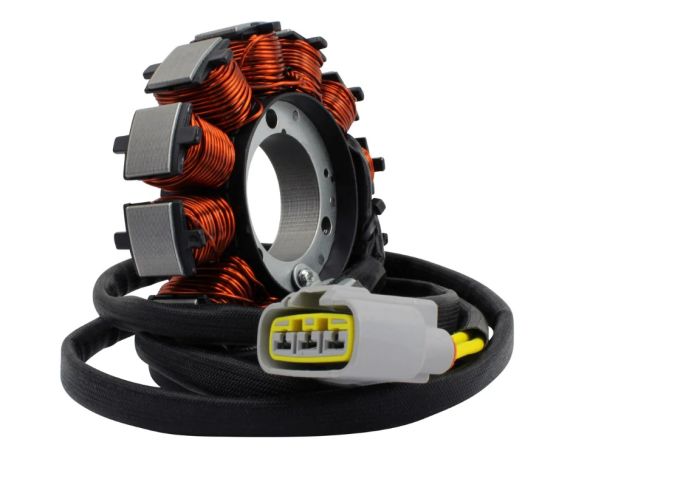

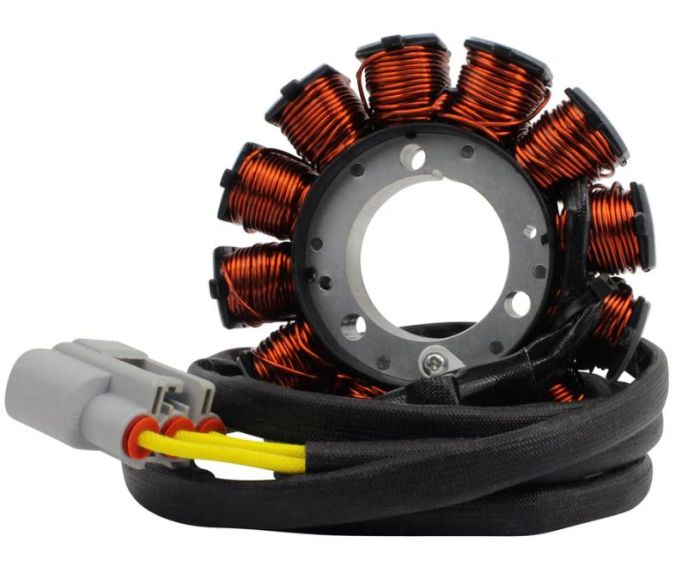

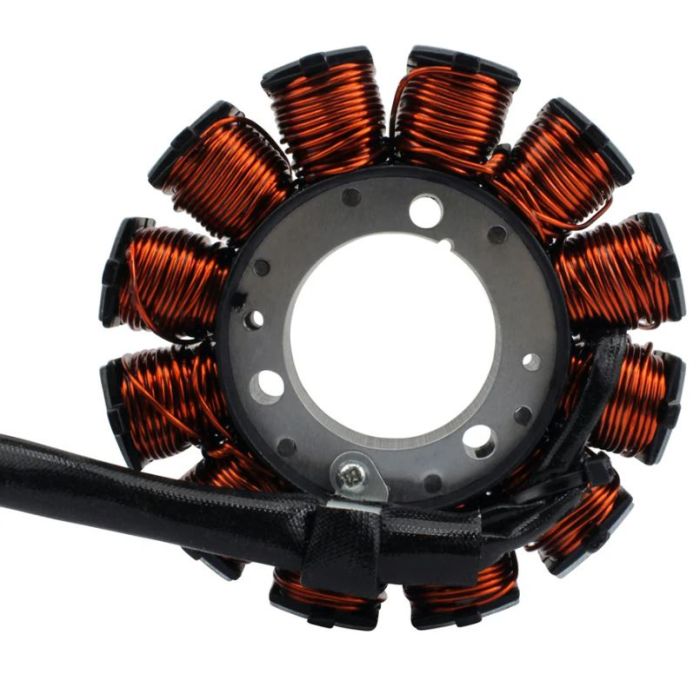

RMSTATOR Generator Stator RMS010-108660 for Reliable Power Generation

Brand new aftermarket 650W stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 170 mm
Length of wires grommet to plug: 1500 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.3 ohms +/-20%
Alternator: Yellow to ground = O.L

Before installing your new stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2025 Can-Am Outlander 650 EFI2025 Can-Am Outlander Max 6502025 Can-Am Outlander 1000R2025 Can-Am Renegade 1000R2025 Can-Am Renegade 6502025 Can-Am Outlander Max 10002025 Can-Am Outlander Max 10002025 Can-Am Outlander Max 650 DPS2025 Can-Am Renegade XXC 10002024 Can-Am Outlander 8502024 Can-Am Outlander 1000R2024 Can-Am Renegade 1000R2024 Can-Am Renegade 6502024 Can-Am Outlander Max 8502024 Can-Am Outlander Max 1000R2024 Can-Am Outlander Max 10002024 Can-Am Outlander Max 650 DPS2024 Can-Am Outlander 850 XMR2024 Can-Am Outlander 850 XT2024 Can-Am Renegade XXC 10002023 Can-Am Outlander 8502023 Can-Am Outlander T 10002023 Can-Am Outlander T 6502023 Can-Am Outlander 1000R2023 Can-Am Renegade T 650

The RMSTATOR RMS010-108660 generator stator is engineered to deliver dependable performance for your electrical systems. Crafted with precision, this stator ensures efficient magnetic flux transfer, aiding in stable power generation for various industrial and marine applications. Constructed from high-quality materials, it offers durability and longevity under demanding operating conditions. The design facilitates easy installation and maintenance, making it a practical choice for technicians seeking a reliable replacement part.

Featuring a compact form factor, the RMSTATOR generator stator maintains optimal size and weight for seamless integration into existing assemblies. Its robust build minimizes wear and tear over time, reducing downtime and maintenance costs. Whether you're restoring an older system or upgrading to enhance performance, this stator provides a trusted solution with a focus on quality and performance. Invest in the RMSTATOR RMS010-108660 for consistent electrical output and peace of mind in your power systems.

Features:

• High-quality construction ensures durability and long service life

• Designed for efficient magnetic flux transfer and stable power output

• Easy to install and maintain, suitable for various applications

• Compact and lightweight design for seamless integration

• Reliable performance under demanding operating conditions
