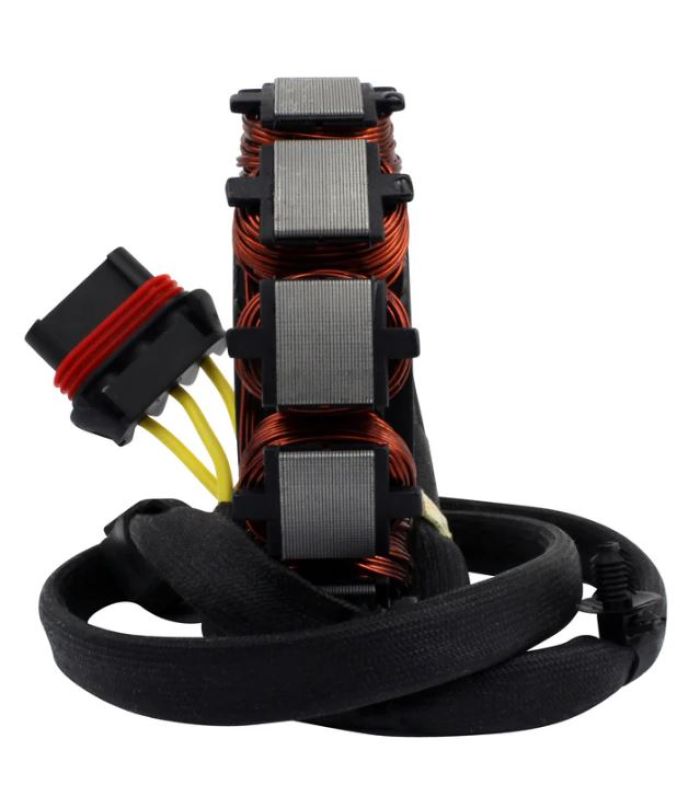

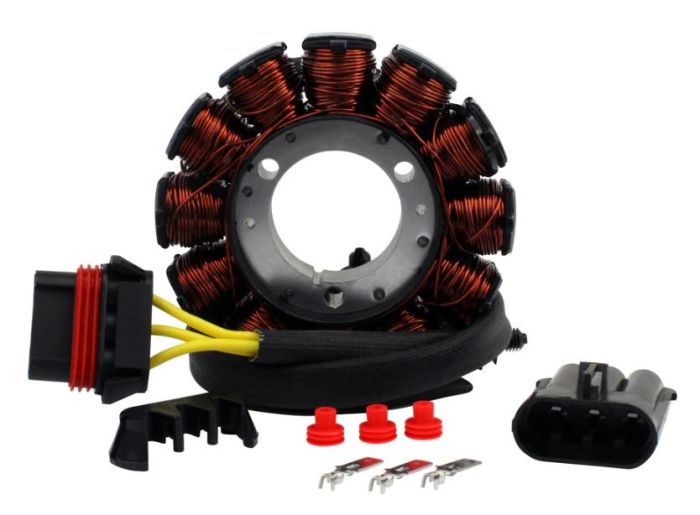

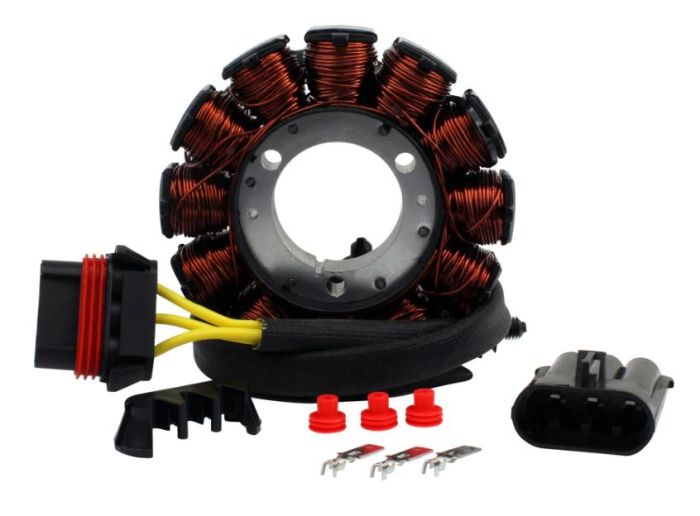

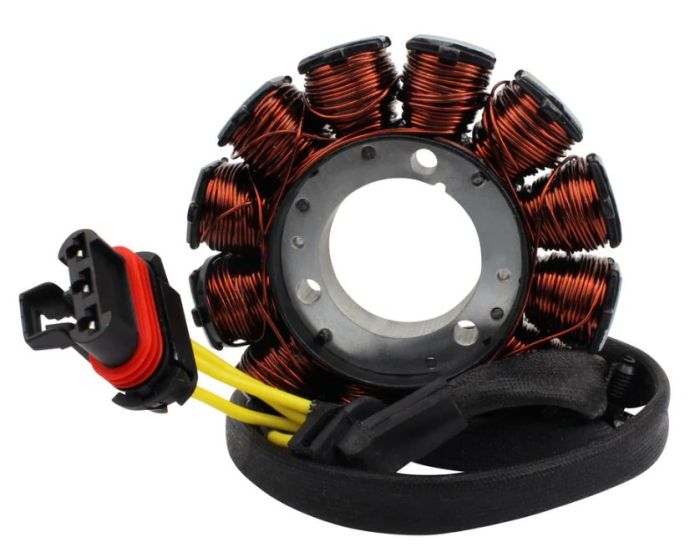

RMSTATOR RMS010-108471 Generator Stator, 850W

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 720 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

Before installing your new stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2025 Can-Am Defender HD10 LTD Cab2025 Can-Am Defender HD10 LTD Cab 6x62025 Can-Am Defender Max HD10 LTD Cab2025 Can-Am Defender Pro HD10 LTD Cab2024 Can-Am Defender HD10 LTD Cab2024 Can-Am Defender HD10 LTD Cab 6x62024 Can-Am Defender Max HD10 LTD Cab2024 Can-Am Defender Pro HD10 LTD Cab2023 Can-Am Defender HD10 LTD Cab2023 Can-Am Defender HD10 LTD Cab 6x62023 Can-Am Defender Max HD10 LTD Cab2023 Can-Am Defender Pro HD10 LTD Cab2022 Can-Am Defender HD10 LTD Cab2022 Can-Am Defender HD10 LTD Cab 6x62022 Can-Am Defender Max HD10 LTD Cab2022 Can-Am Defender Pro HD10 LTD Cab2021 Can-Am Defender HD10 LTD Cab2021 Can-Am Defender Max HD10 LTD Cab2021 Can-Am Defender Pro HD10 LTD Cab2020 Can-Am Defender HD10 LTD Cab2020 Can-Am Defender Max HD10 LTD Cab

The RMSTATOR RMS010-108471 Generator Stator is designed to support reliable electrical power generation in compatible motorcycle, powersports, and small-engine applications. With an 850-watt output rating, this replacement stator helps supply the energy required by the charging system while supporting dependable operation of essential electrical components.

Built as a replacement component, the RMSTATOR generator stator is intended for installation in applications that require a compatible 850W stator assembly. It is a practical solution for addressing charging-system issues, restoring electrical output, or replacing a worn or damaged original component. Always verify vehicle fitment, connector configuration, mounting arrangement, and electrical specifications before installation.

Designed for service professionals, repair shops, and powersports owners, the RMS010-108471 provides a direct product reference for accurate parts identification. Proper installation should follow the vehicle manufacturer’s service procedures, including inspection of related wiring, connectors, battery condition, and voltage regulation components. Confirm that the complete charging system is functioning correctly after installation.

Brand: RMSTATOR
Part Number: RMS010-108471
Output Rating: 850 watts
Product Type: Generator stator
Application: Replacement charging-system component
Unit of Measure: Each

Features:

• 850-watt generator stator for compatible powersports and small-engine charging systems
• Designed as a replacement component for restoring dependable electrical generation
• RMSTATOR RMS010-108471 part number supports accurate product identification
• Suitable for professional repairs, service work, and replacement applications
• Verify vehicle compatibility, wiring, connectors, and charging-system specifications before installation
