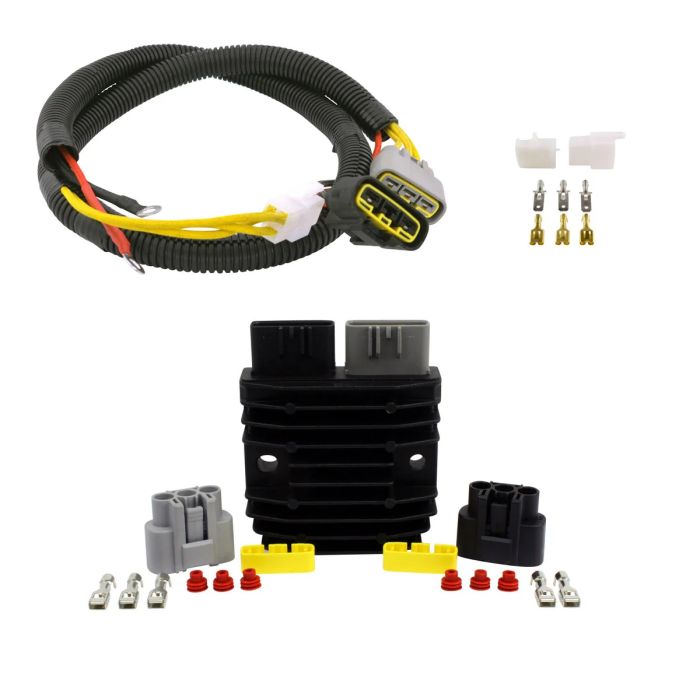

RMSTATOR RMS021-108592 MOSFET Improved Series Voltage Regulator Rectifier

SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifiers and way cooler than OEM parts.

Power only flows through the electrical components when the battery is charging.

Allows the stator to have lower current flowing when not used, extending its lifetime.

The regulator is easier to mount because it is smaller than the OEM.

RMSTATOR new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.

A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.

This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

BYPASS HARNESS

This bypass harness allows you to connect your new series regulator directly to your battery. Bypassing feet of wire and multiple connectors on your main wiring harness to provide a safer and more direct connection.

Opposite connector (main harness side) included as these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.

Series Regulator :

Dimensions:
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Bypass Harness :

Dimensions:
Stator wires length: 500 mm
Battery wires length: 1000 mm
Number of yellow wires: 3
Number of red wires: 1
Number of black wires: 1
Number of plugs: 3

Before installing your new SERIES Voltage Regulator Rectifier :

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

The RMSTATOR RMS021-108592 MOSFET Improved Series Voltage Regulator Rectifier is designed to deliver reliable voltage regulation for your electrical system. Built with advanced MOSFET technology, this component provides enhanced efficiency and stability, ensuring consistent power delivery. Its robust construction makes it suitable for demanding applications, offering improved performance over standard rectifiers. This unit is engineered to optimize electrical flow, reduce heat generation, and extend the lifespan of your system's voltage regulation components.
The design features a compact form factor with precise dimensions to facilitate easy installation and integration into various systems. Whether used in motorcycles, ATVs, or other vehicles, this rectifier ensures your electrical system maintains optimal voltage levels, preventing damage from overvoltage or undervoltage conditions. The improved series guarantees better thermal management and reduced power loss, contributing to overall system reliability and efficiency.
Constructed by RMSTATOR, a trusted name in electrical components, this rectifier is a dependable choice for replacing or upgrading existing voltage regulators. Its durable build and innovative design help improve the longevity and performance of your electrical setup, making it suitable for both professional and DIY applications. Ensure your vehicle's electrical system operates smoothly with the RMSTATOR RMS021-108592 MOSFET Improved Series Voltage Regulator Rectifier, a high-quality solution for maintaining consistent voltage levels under various operating conditions.

Features:

• MOSFET technology for increased efficiency and stability

• Improved thermal management for longer lifespan

• Compact design for easy installation

• Reliable voltage regulation to protect electrical systems

• Suitable for motorcycles, ATVs, and similar vehicles
