RMSTATOR RMS022-108422 Revolt Regulator with SurePower ECM Bypass Harness Kit

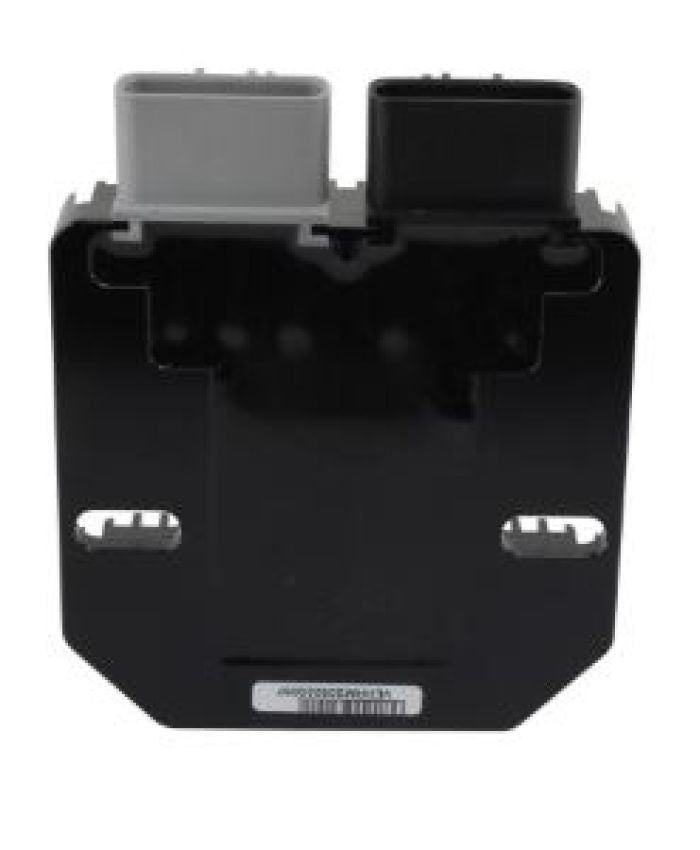

Many years of Polaris ATV’s used the SurePower ECM module that controlled many things on the vehicle, including circuit breakers, cooling fan operation, and most importantly voltage regulation for the battery charging system. Most of these functions are reliable, except for the most important, the voltage regulator rectifier. The voltage regulator often fails, and leaves you faced with replacing the entire module just for this one function, which is likely to fail again.

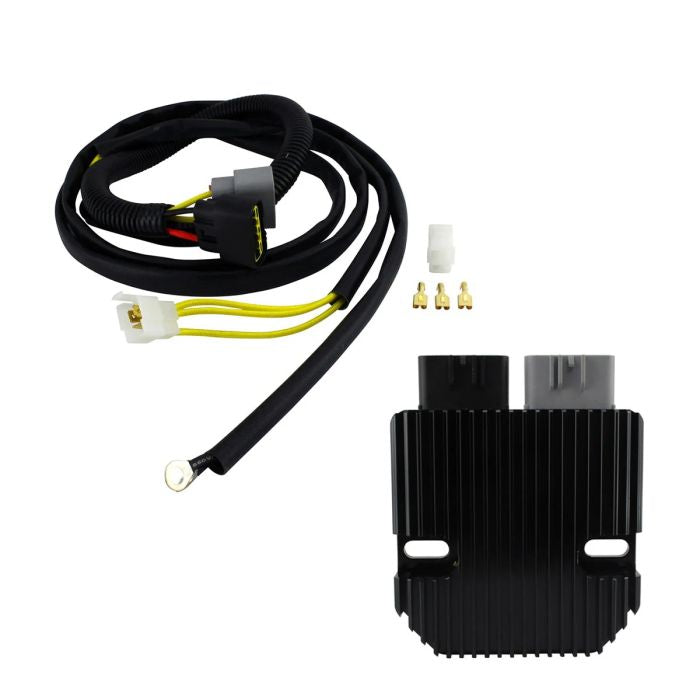

Eliminate this problem on these popular ATVs. This kit includes our heavy duty REVOLT voltage regulator, a plug & play wiring harness, and mounting hardware. Simply mount the new voltage regulator on your frame, plug in and route the harness directly to the stator connector and battery terminals, and you’re ready to ride. You’ll never have to worry about a failing voltage regulator or SurePower replacement again.

REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era.

85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market to considerably improve the rectifier reliability.

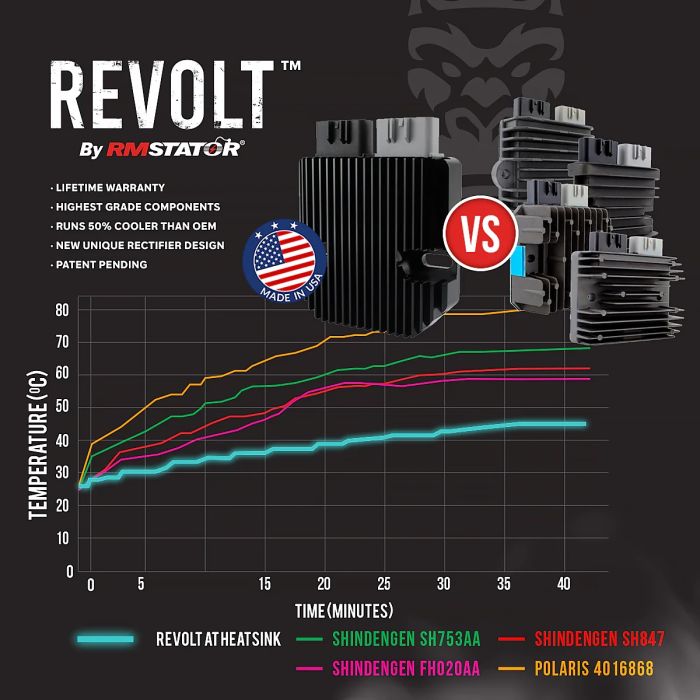

Runs 50% cooler than OEM

2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market

Arctic Frostbite housing with increased and deeper fins is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.

Manufacturer's limited lifetime warranty

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

The quality exceeds the OEM equipment

Improved heat sink and charging capabilities

Higher grade of electric components

All shipped products are tested

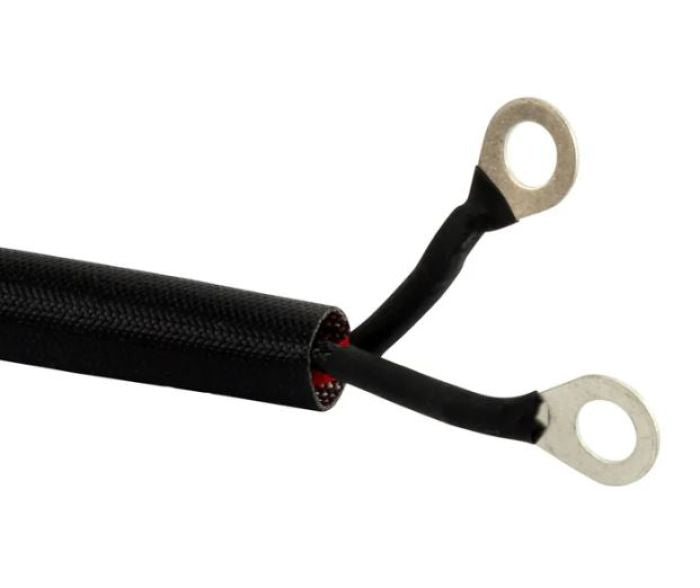

Automotive grade wiring harness with OEM-quality heavy-duty connectors

Made with the same Delphi connectors as OEM Polaris parts, our wiring harnesses are manufactured in a factory with controlled quality processes. They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.

Plug & Ride design

Manufactured to OEM specifications for a fast and easy installation

REVOLT Voltage Regulator Rectifier :

Width: 102 mm
Length: 103 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Polaris SurePower Module Regulator Bypass Harness :

Wires length : 1580 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 3

Before installing your new REVOLT Voltage Regulator Rectifier:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2009 Polaris Ranger 500 2x42008 Polaris Ranger 500 2x42008 Polaris Sportsman 500 6x62008 Polaris Sportsman 500 HO2007 Polaris Sportsman X2 5002007 Polaris Sportsman 500 EFI2007 Polaris Ranger 500 4x42007 Polaris Ranger 500 EFI 4x42007 Polaris Ranger 500 2x42007 Polaris Sportsman 500 6x62007 Polaris Sportsman 4502006 Polaris Ranger 700 XP2006 Polaris Ranger 700 6x6 EFI2006 Polaris Sportsman X2 5002006 Polaris Sportsman 500 EFI2006 Polaris Ranger 500 4x42006 Polaris Ranger 500 EFI 4x42006 Polaris Ranger 500 2x42005 Polaris Ranger 700 XP2005 Polaris Ranger 500 4x4

The RMSTATOR RMS022-108422 Revolt Regulator with SurePower ECM Bypass Harness is a comprehensive solution designed for reliable electrical system management in various vehicle applications. This kit combines the high-performance Revolt regulator with a specially designed bypass harness, ensuring optimal voltage regulation and seamless integration with your existing wiring setup. The regulator features robust construction and precision engineering to maintain consistent electrical output even under demanding conditions, helping to extend the life of your vehicle's electrical components. The included bypass harness simplifies installation by providing a direct, secure connection to the ECM, reducing wiring complexity and enhancing system reliability. Whether you're restoring a classic motorcycle or upgrading a modern vehicle, this kit offers an effective way to improve electrical stability and performance.

Features:

• High-performance Revolt regulator designed for durability and reliable voltage regulation

• SurePower ECM bypass harness for simplified wiring and enhanced system integration

• Robust construction built to withstand harsh operating environments

• Precise engineering to ensure consistent electrical output

• Easy installation with a comprehensive kit that reduces wiring complexity
