RMSTATOR RMS900-108555 Stator, Flywheel, and Gasket Kit for Marine Outboard Engines

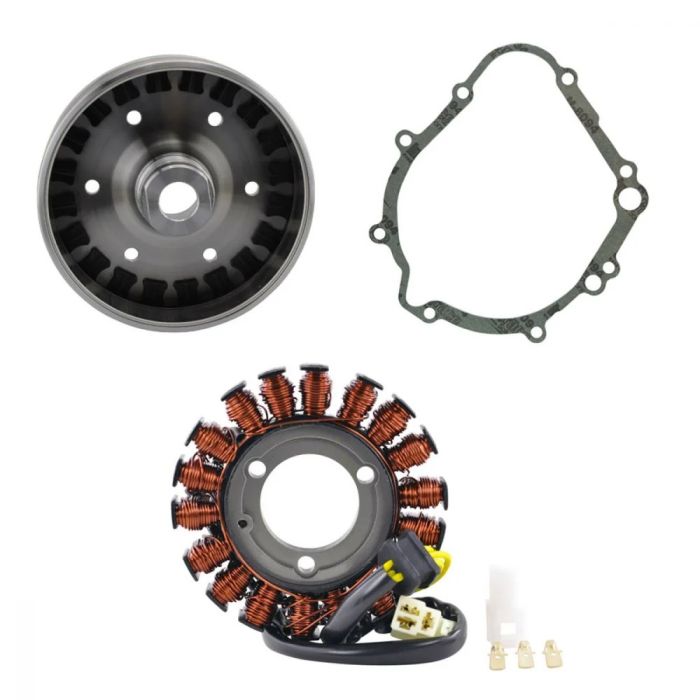

 Stator + Flywheel + Gasket Kit

Crankcase cover gasket included

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

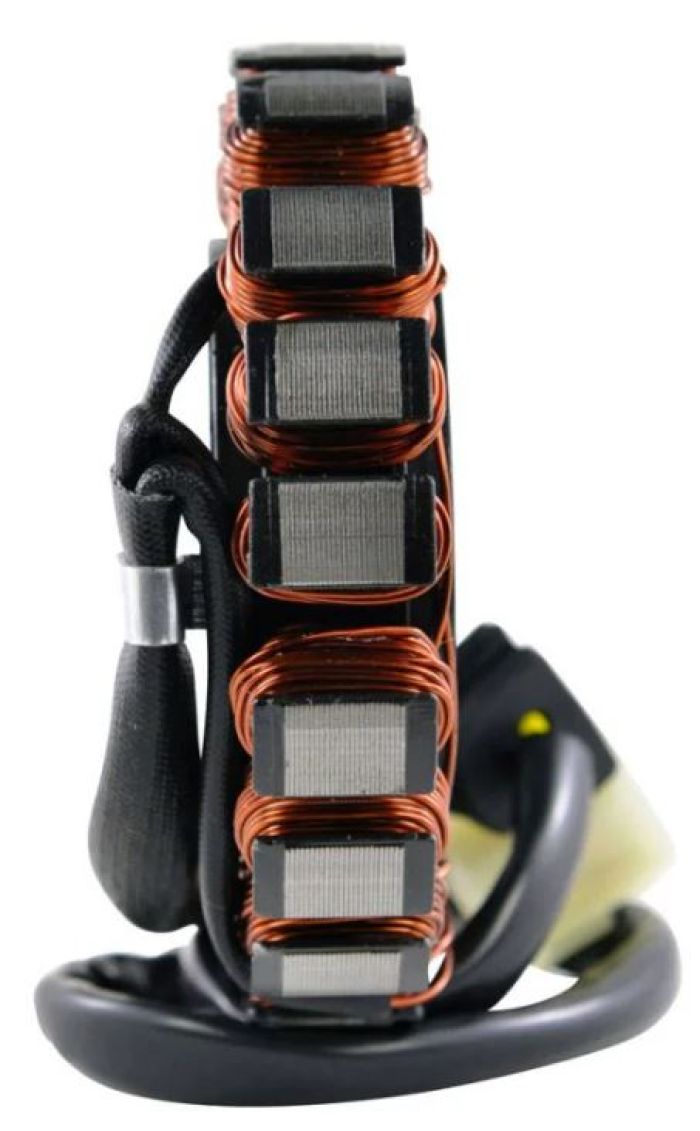

Stator

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

Connector included

Rubber grommet included

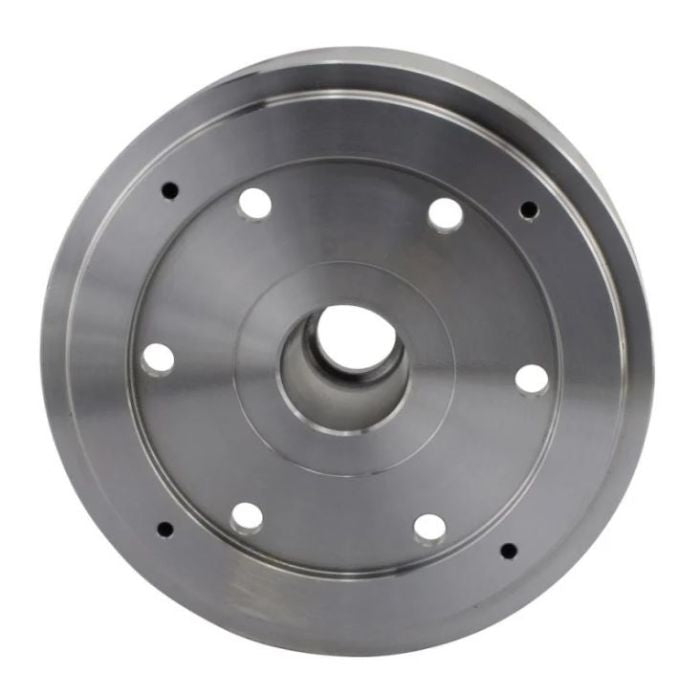

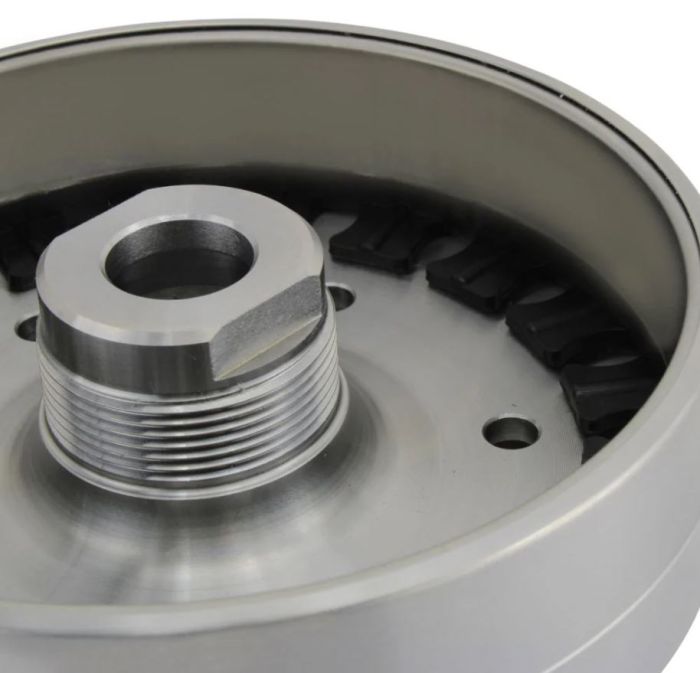

Heavy Duty Flywheel Rotor

A well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Anyone who rides or repairs Suzuki Motorcycles is probably familiar with the flywheel problems common to GSXR 600/750 models. Most of these machines will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.

For years, service shops & dealerships have offered low cost repairs for Suzuki flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues

The common repair is using JB Weld© Marine Blue Epoxy to reattach the loose original magnets, or to install new ones. Epoxy fixes do repair flywheels in short term, if they are done correctly. However, this kind of repair can easily cause immediate problems, and impact long term reliability of your Motorcycle.

Built to OEM size

Fits precisely in your ride: install it and forget it.

Improved epoxy

Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment

High grade steel capping

Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing

Eliminates crankshaft vibrations for longer engine longevity.

2-year warranty

All products are tested

Stator Dimensions:
Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 330 mm

Other specifications:
Number of wires:3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

Flywheel Dimensions:
Exterior Diameter: 118 mm
Interior Diameter: 108 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 33 mm
Thickness (exterior): 34 mm
Thickness (interior): 27 mm

Before installing your new Stator and Flywheel

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Flywheel

Before attempting to start your Suzuki adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2024 Suzuki GSXR 7502024 Suzuki GSXR 6002023 Suzuki GSXR 7502023 Suzuki GSXR 6002022 Suzuki GSXR 7502022 Suzuki GSXR 6002021 Suzuki GSXR 7502021 Suzuki GSXR 6002019 Suzuki GSXR 7502019 Suzuki GSXR 6002018 Suzuki GSXR 7502018 Suzuki GSXR 6002017 Suzuki GSXR 7502017 Suzuki GSXR 6002016 Suzuki GSXR 7502016 Suzuki GSXR 6002015 Suzuki GSXR 7502015 Suzuki GSXR 6002014 Suzuki GSXR 7502014 Suzuki GSXR 6002013 Suzuki GSXR 750

The RMSTATOR RMS900-108555 kit includes a high-quality stator, flywheel, and gasket designed for optimal performance in marine outboard engines. This comprehensive set provides all essential components needed for engine maintenance and repair, ensuring reliable power delivery and efficient operation. Crafted with precision, the stator generates a stable electrical current to support your engine's ignition and charging systems. The flywheel enhances engine balance and smoothness during operation, while the gasket ensures a proper seal for preventing leaks and maintaining engine integrity.
Designed for durability, the components are built to withstand harsh marine environments, including exposure to moisture and salt. Installation of this kit can help restore your engine's performance to factory standards, reducing downtime and maintenance costs. Whether you're performing a routine upgrade or rebuilding your engine, the RMSTATOR RMS900-108555 kit offers a reliable, all-in-one solution for marine enthusiasts and professional mechanics alike.
Compatibility with a range of marine outboard models makes this kit a versatile choice for boat owners seeking a straightforward, effective repair solution. Trust RMSTATOR's reputation for quality and precision engineering to keep your vessel running smoothly on the water, with components designed to meet or exceed OEM specifications.

Features:

• Includes stator, flywheel, and gasket for comprehensive engine repair

• Designed for marine outboard engines to ensure durability and performance

• Stator generates stable electrical current for ignition and charging systems

• Flywheel provides engine balance, smooth operation, and power transfer

• Gasket offers a reliable seal to prevent leaks and protect engine components
