SKU:99679

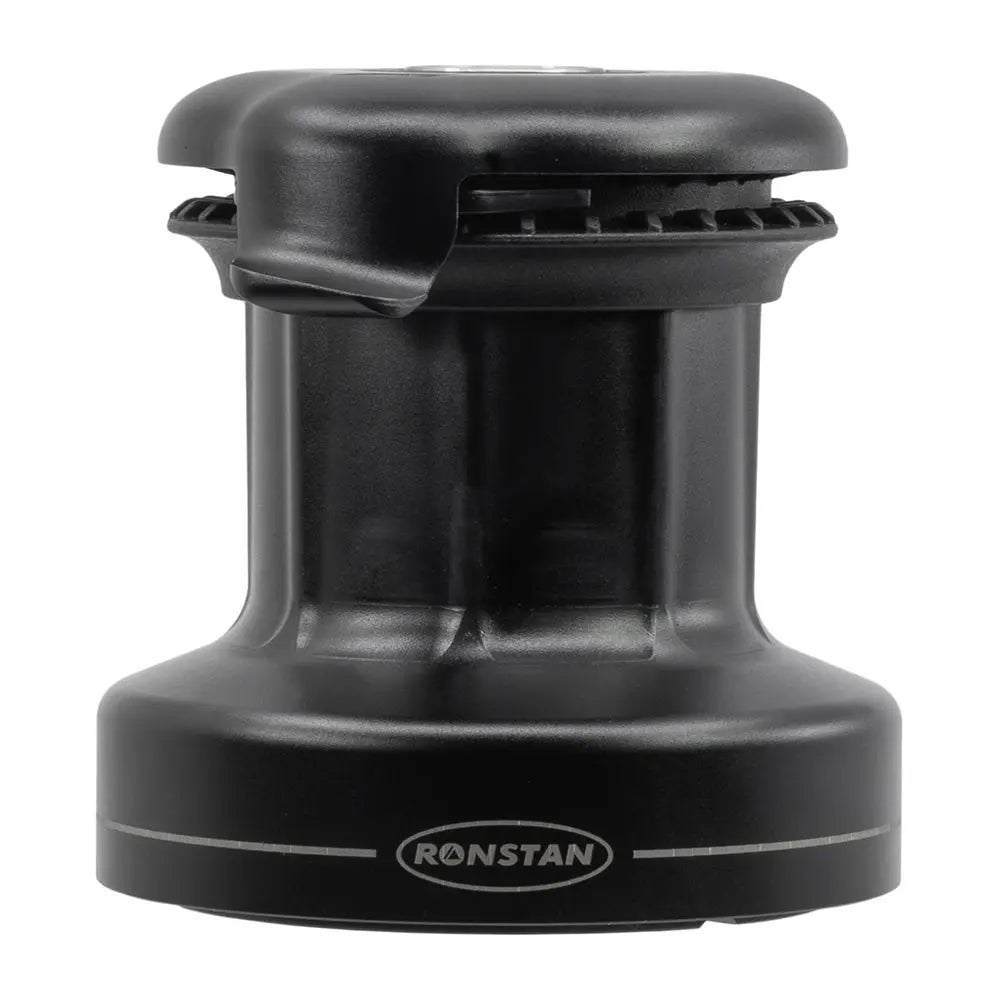

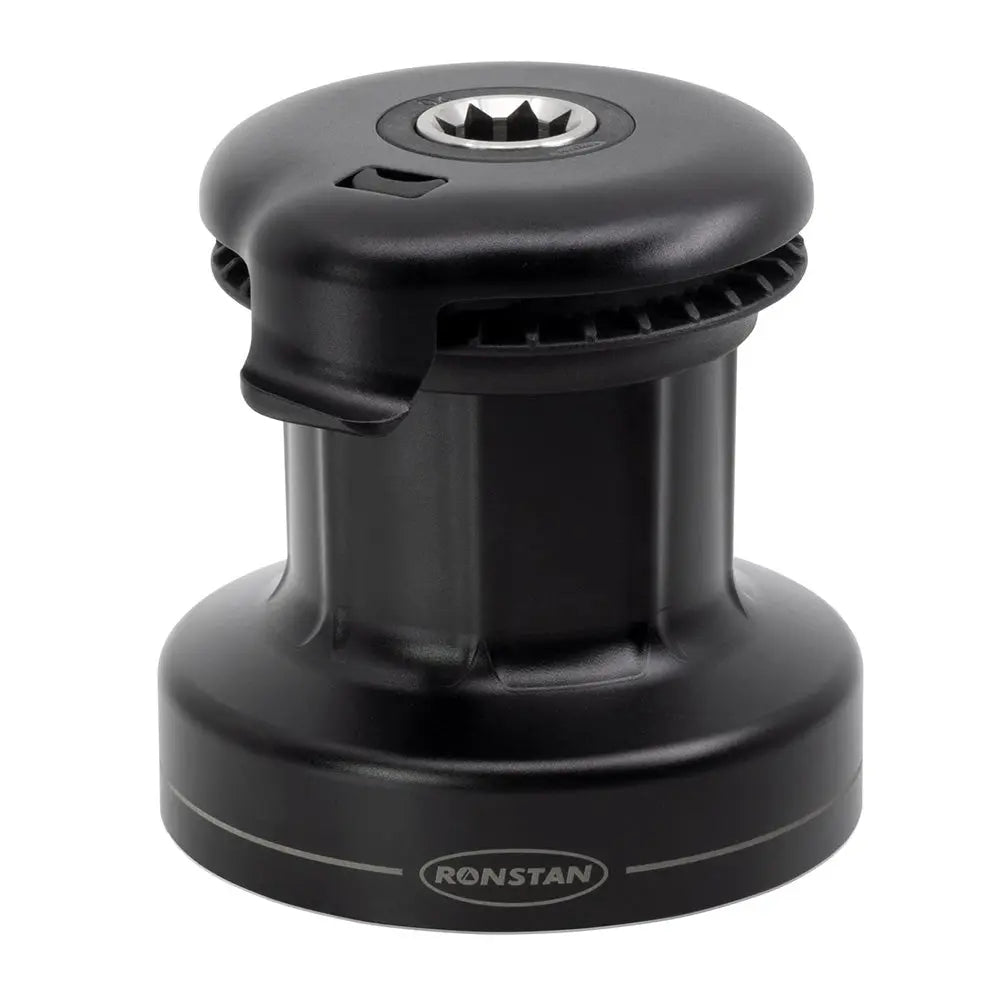

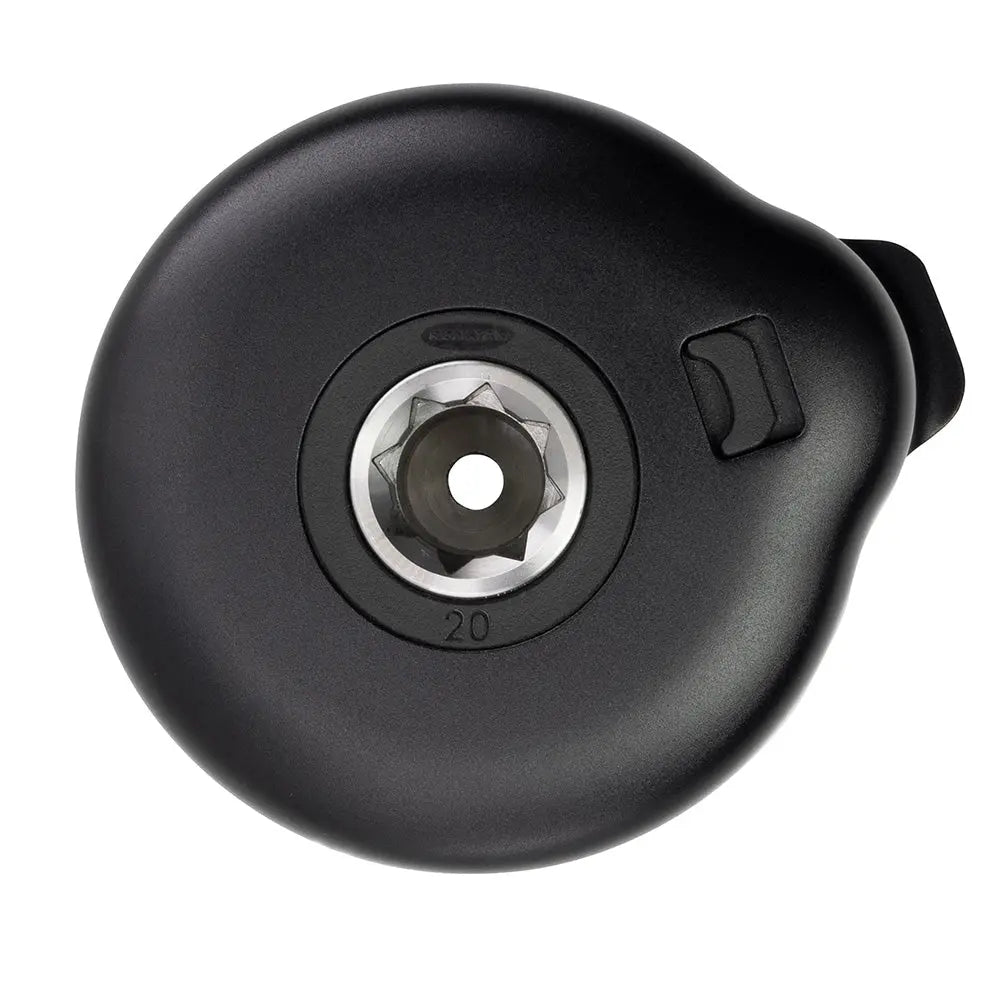

20ST Orbit Winch 1 Speed
Ronstans Orbit Winches are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches weigh significantly less and offer lower line entry heights than any other winch in their class.
Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs that many sailors will recognize from Andersen Stainless Steel Winches, well-known for their impressive line grip, smooth control, and minimal rope wear.
Power Ribs
The exceptional grip provided by the Power Ribs offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.
No Tools Required
Full disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem.
When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.
Features:
Materials:
Specifications:
The Ronstan 20ST Orbit Winch 1 Speed is engineered for high performance and ease of use in demanding sailing environments. Crafted from lightweight machined aluminum, this winch features a distinctive design that reduces weight and lowers line entry height, making it ideal for modern sailboats seeking efficient handling and minimal weight. Its durable construction includes a hard anodized aluminum drum and center stem, complemented by Grade 316 stainless steel shaft and pawls for corrosion resistance and longevity. This winch is designed to deliver reliable performance with a proven Andersen gear configuration and an impressive 18.3:1 power ratio, enabling sailors to manage up to 550kg of load effectively. The compact size and thoughtful design make it an excellent choice for crewed and club racing as well as cruising applications.
The Ronstan 20ST Orbit Winch boasts a machined aluminum drum with Power Ribs, a feature that ensures excellent line grip whether tensioning or easing. The Power Ribs reduce the number of wraps needed around the drum, decreasing load on the self-tailer and promoting smooth, controlled line movement. The non-abrasive surface extends the life of rigging and allows for seamless easing even under high loads, enhancing overall sail control and safety. Maintenance is straightforward with no tools required; simply pull back the spring-loaded release latch, rotate the self-tailing arm slightly, and remove the drum for service or inspection. Reassembly is quick, with an audible click confirming correct engagement of the self-tailing arm into one of eight adjustable positions at 45-degree increments.

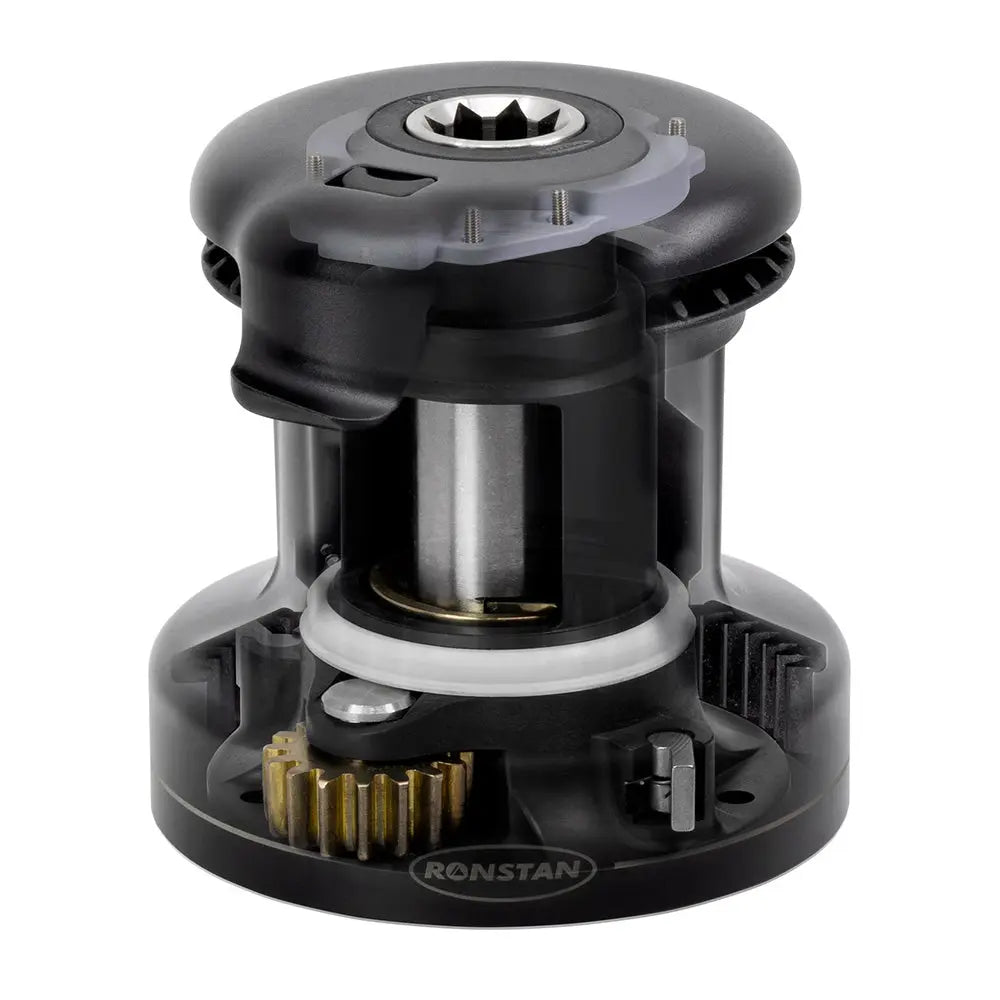

Built with premium materials, including aluminum bronze gears, glass-filled nylon self-tailer, and self-lubricating acetal bearings, the Ronstan 20ST Orbit Winch offers durability and smooth operation in harsh marine environments. Its user-friendly design and high-quality components make it a dependable addition to any sailing setup, providing powerful, controlled line handling with minimal maintenance. Whether used for halyards, sheets, or control lines, this winch is a versatile and essential tool for serious sailors seeking performance and reliability.
Features:
