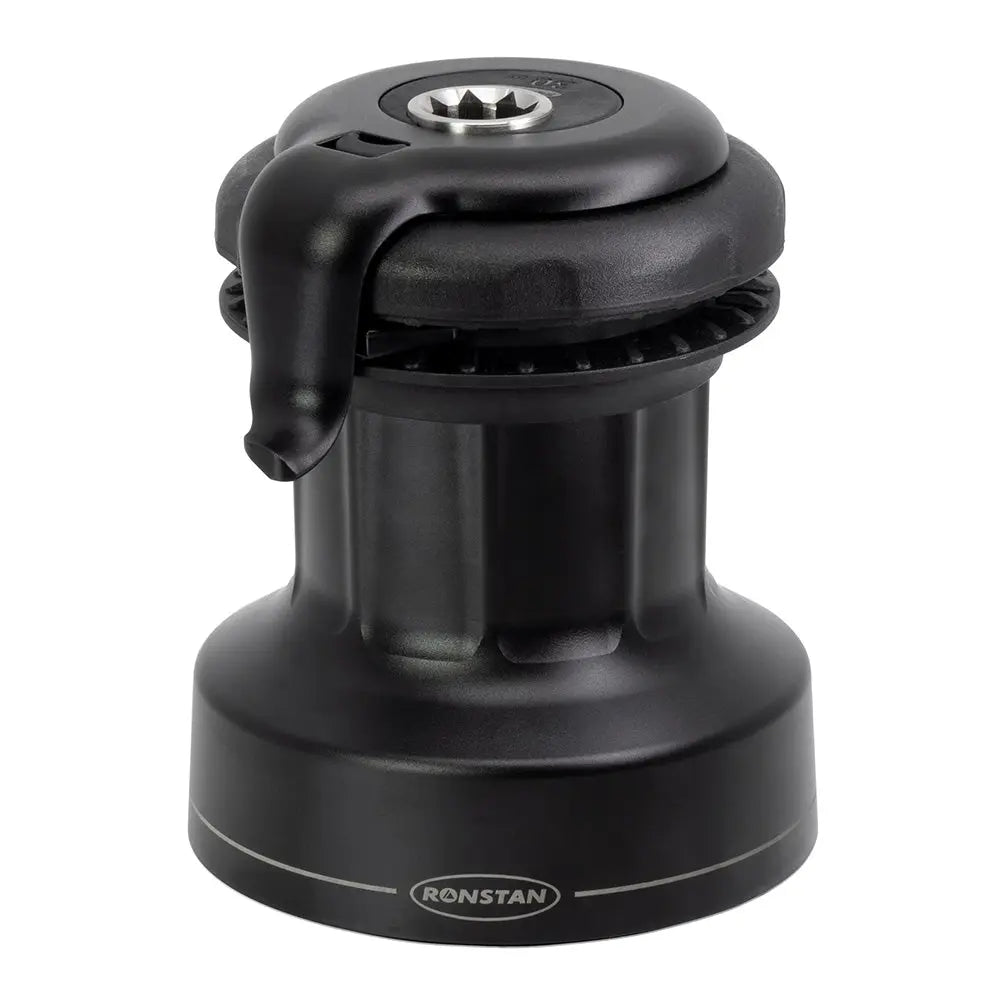

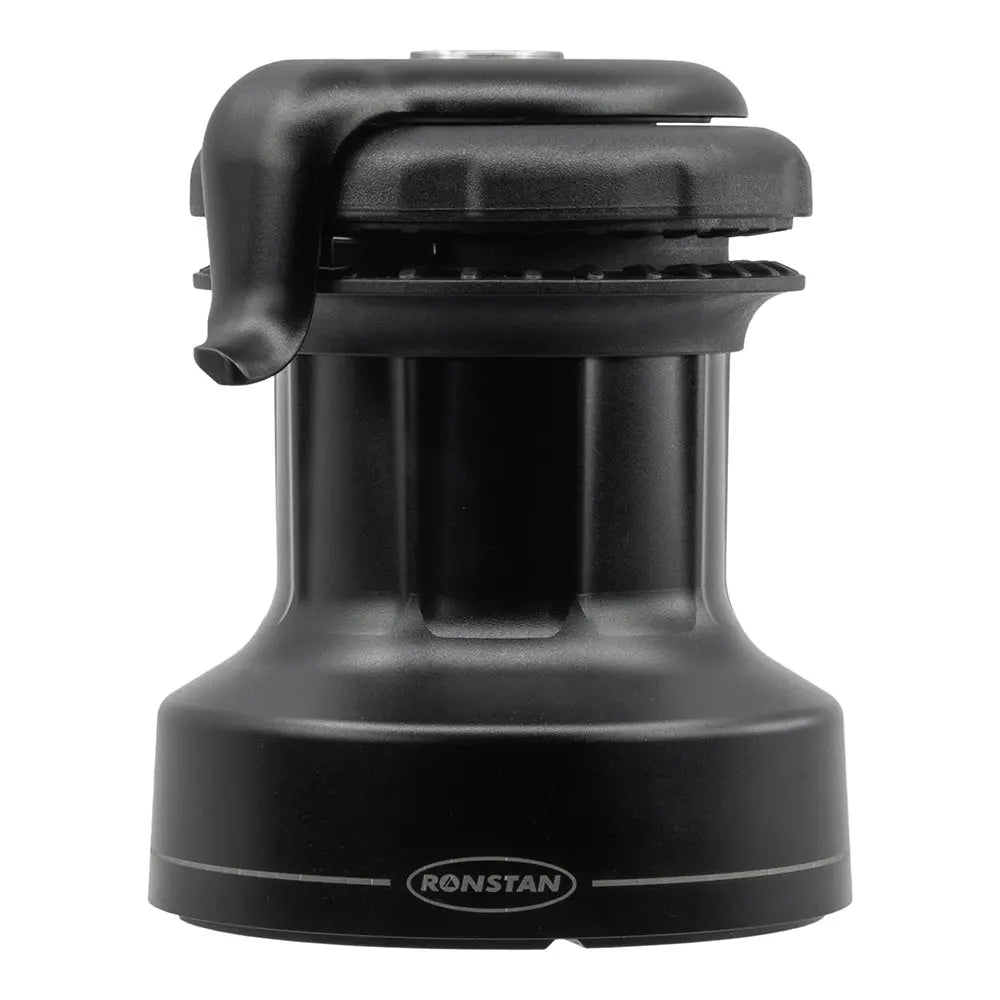

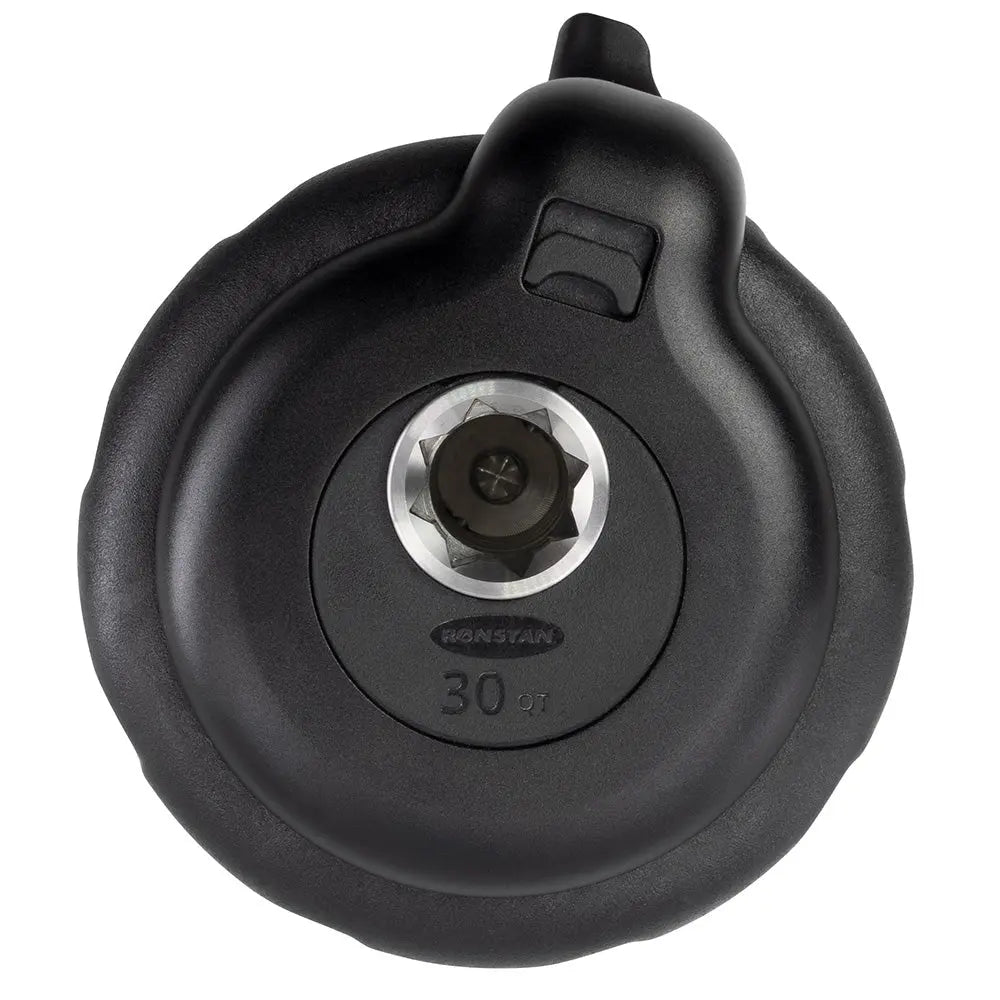

Ronstan 30QT Orbit Winch with Quick Trim – Lightweight Alloy Design for Sailing and Marine Applications

30QT Orbit Winch with Quick Trim

Ronstans Orbit Winches are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches weigh significantly less and offer lower line entry heights than any other winch in their class.

Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs that many sailors will recognize from Andersen Stainless Steel Winches, well-known for their impressive line grip, smooth control, and minimal rope wear.

Power Ribs

The exceptional grip provided by the Power Ribs offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.

No Tools Required

Full disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem.

When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.

Orbit Winches sizes 30QT and 40QT are equipped with the unique, patented QuickTrim self-tailer.

What is QuickTrim

QuickTrim allows sailors to conveniently and safely ease the line without removing the winch handle or taking the line out of the self-tailer.

A small anti-clockwise rotation of the self-tailing cover allows the self-tailer to turn beneath it like a sheave as the rope is eased, with confident grip and control assured by the drums smooth surface and Power Ribs.

Letting the top cover spring back into place locks the self-tailer again to resume normal use.

Features:

• Lightweight machined aluminum drum
• Distinctive Power Ribs ensures a controlled grip at all times, whether tensioning or easing

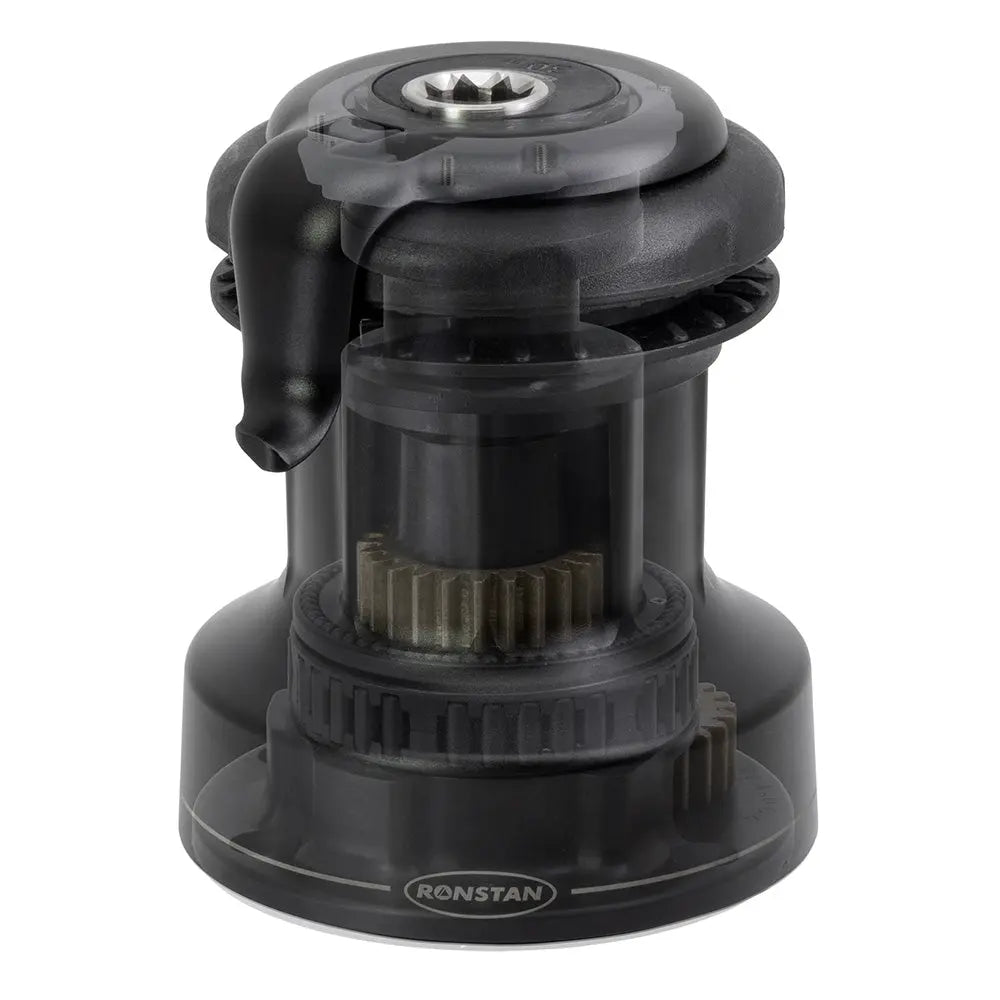

• Proven Andersen winch gearing configuration
• No tools are required for configuration and servicing
• Sprung self-tailing jaws to accept 6-10mm line
• QuickTrim patented self-tailing feature for rapid sail trim and smooth adjustment (30QT 40QT only)

Materials:

• Hard anodized aluminum drum and center stem, aluminum self-tailing arm
• Grade 316 stainless steel shaft and pawls
• Grade 2205 stainless steel axle pins
• Aluminum bronze gears
• Glass-filled nylon self tailer
• Self-lubricating acetal bearings

Specifications:

• Weight (kilogram): 3.1kg
• Power Ratio: 30.2:1
• Base Diameter (millimeters): 136mm
• Maximum Pulling Load (kilogram): 700kg
• Drum Diameter (millimeters): 86mm
• Base Diameter (millimeters): 136mm
• Height (millimeters): 166mm
• Line Entry L (millimeters): 57mm
• Line Size (millimeters): 7-12mm
• Gear Ratio 1st Speed: 1.4:1
• Gear Ratio 2nd Speed: 5.2:1
• Power Ratio 1st Speed: 8.3:1
• Power Ratio 2nd Speed: 30.2:1

The Ronstan 30QT Orbit Winch is engineered for high performance and ease of use in demanding sailing environments. Crafted from durable, hard anodized aluminum, this winch combines a lightweight design with robust construction, making it ideal for sailors seeking reliable gear that reduces weight without sacrificing strength. Its machined aluminum drum, featuring Power Ribs, offers an exceptional grip on the line, ensuring smooth control whether tensioning or easing sails. The innovative Power Ribs design minimizes rope wear, extends rigging lifespan, and promotes efficient line handling, especially under high loads. This design also reduces the number of wraps needed to hold tension securely, simplifying sail adjustments and improving safety.

The Ronstan 30QT Orbit Winch is designed for straightforward maintenance and setup. It requires no tools for disassembly or reassembly—simply pull back the spring-loaded release latch, rotate the self-tailing arm slightly, and the drum can be removed for servicing. Reassembly is just as quick, with an audible click confirming proper engagement. The winch is equipped with a proven Andersen gear configuration, ensuring reliable performance and longevity. Its compact size and low profile make it a versatile choice for various boat types.

A key feature of this model is the patented QuickTrim self-tailing system, exclusive to the 30QT and 40QT sizes. QuickTrim allows sailors to ease the line safely and conveniently without removing the handle or line from the self-tailer. By slightly rotating the self-tailing cover anti-clockwise, the self-tailer operates like a sheave, enabling rapid sail trim adjustments with confident control. Once the desired tension is achieved, springing the cover back into place locks the self-tailer securely, resuming normal operation. The winch's design supports line diameters from 7 to 12mm, accommodating a wide range of rigging setups. Overall, the Ronstan 30QT Orbit Winch with Quick Trim is a versatile, high-quality solution for sailors requiring efficient, easy-to-maintain winches with advanced features for precise sail control.

Features:

• Lightweight machined aluminum drum for easy handling and installation

• Power Ribs technology provides a controlled grip for line tensioning and easing

• Proven Andersen gear configuration ensures reliable operation

• No tools required for disassembly or maintenance, simplifying servicing

• Sprung self-tailing jaws accept 6-10mm line for versatile rigging

• QuickTrim patented self-tailing feature allows rapid sail trim adjustments without handle removal
