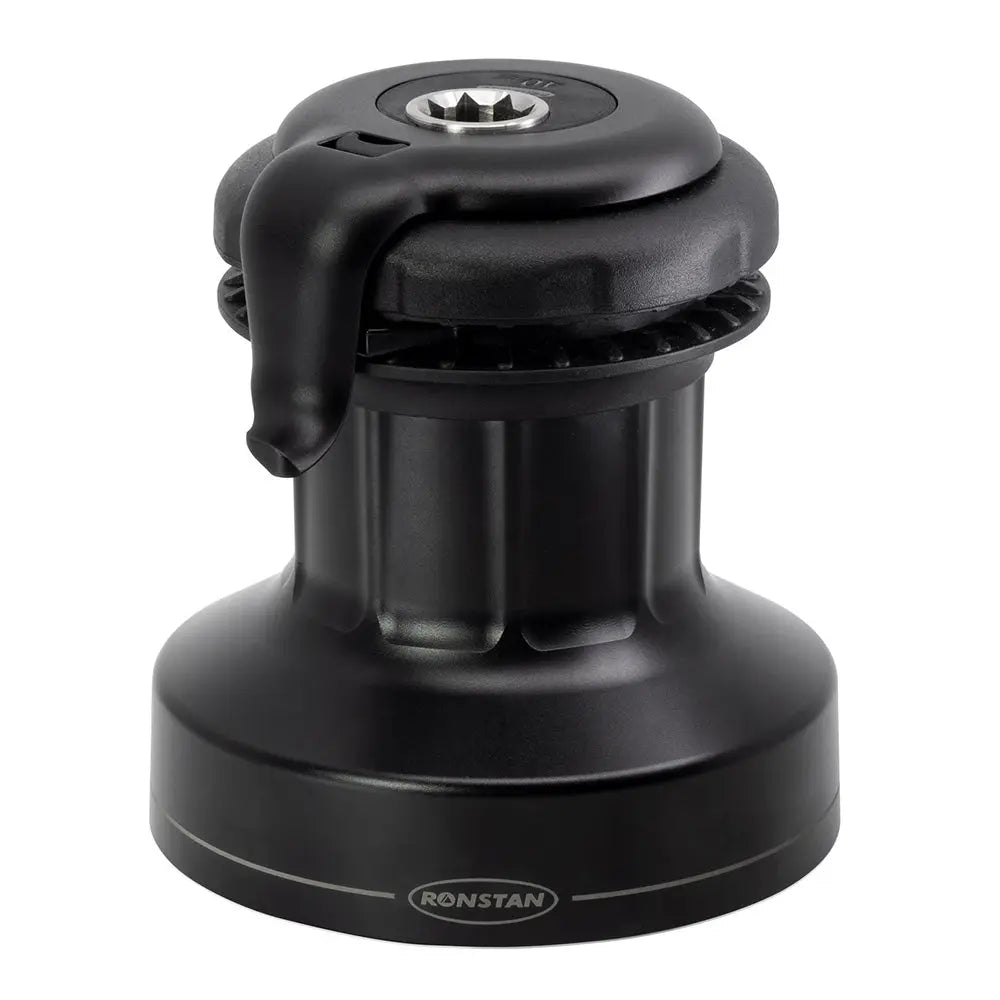

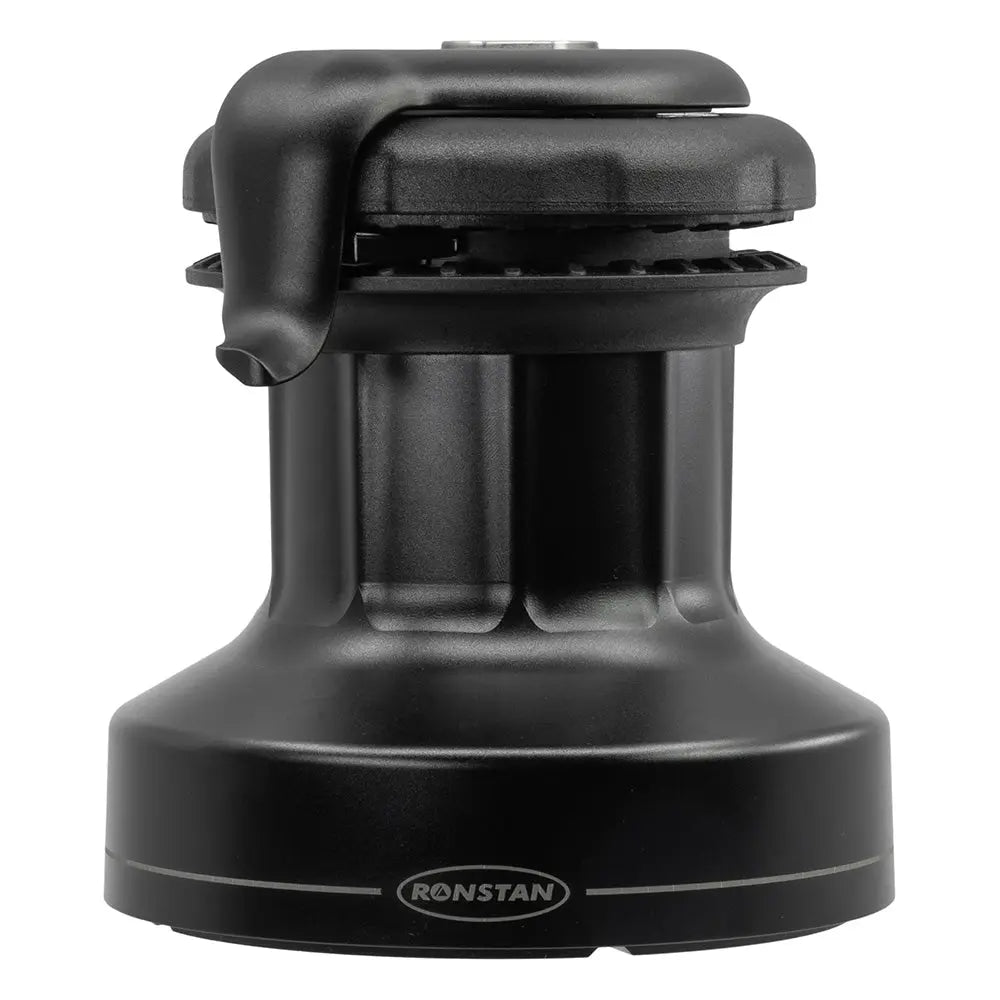

Ronstan 40QT Orbit Winch with QuickTrim – Lightweight Alloy Marine Winch with Power Ribs and Self-Tailing

40QT Orbit Winch with Quick Trim

Ronstans Orbit Winches are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches weigh significantly less and offer lower line entry heights than any other winch in their class.

Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs that many sailors will recognize from Andersen Stainless Steel Winches, well-known for their impressive line grip, smooth control, and minimal rope wear.

Power Ribs

The exceptional grip provided by the Power Ribs offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.

No Tools Required

Full disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem.

When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.

Orbit Winches sizes 30QT and 40QT are equipped with the unique, patented QuickTrim self-tailer.

What is QuickTrim

QuickTrim allows sailors to conveniently and safely ease the line without removing the winch handle or taking the line out of the self-tailer.

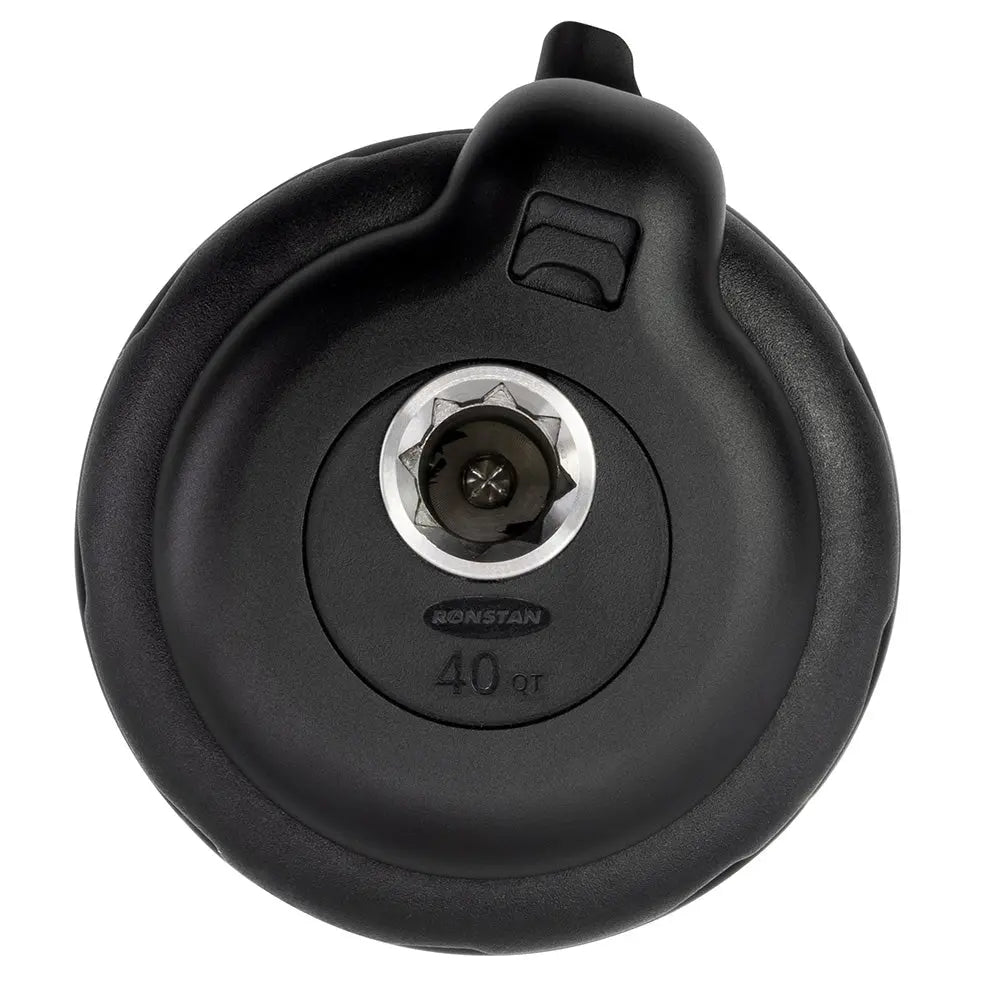

A small anti-clockwise rotation of the self-tailing cover allows the self-tailer to turn beneath it like a sheave as the rope is eased, with confident grip and control assured by the drums smooth surface and Power Ribs.

Letting the top cover spring back into place locks the self-tailer again to resume normal use.

Features:

• Lightweight machined aluminum drum
• Distinctive Power Ribs ensures a controlled grip at all times, whether tensioning or easing

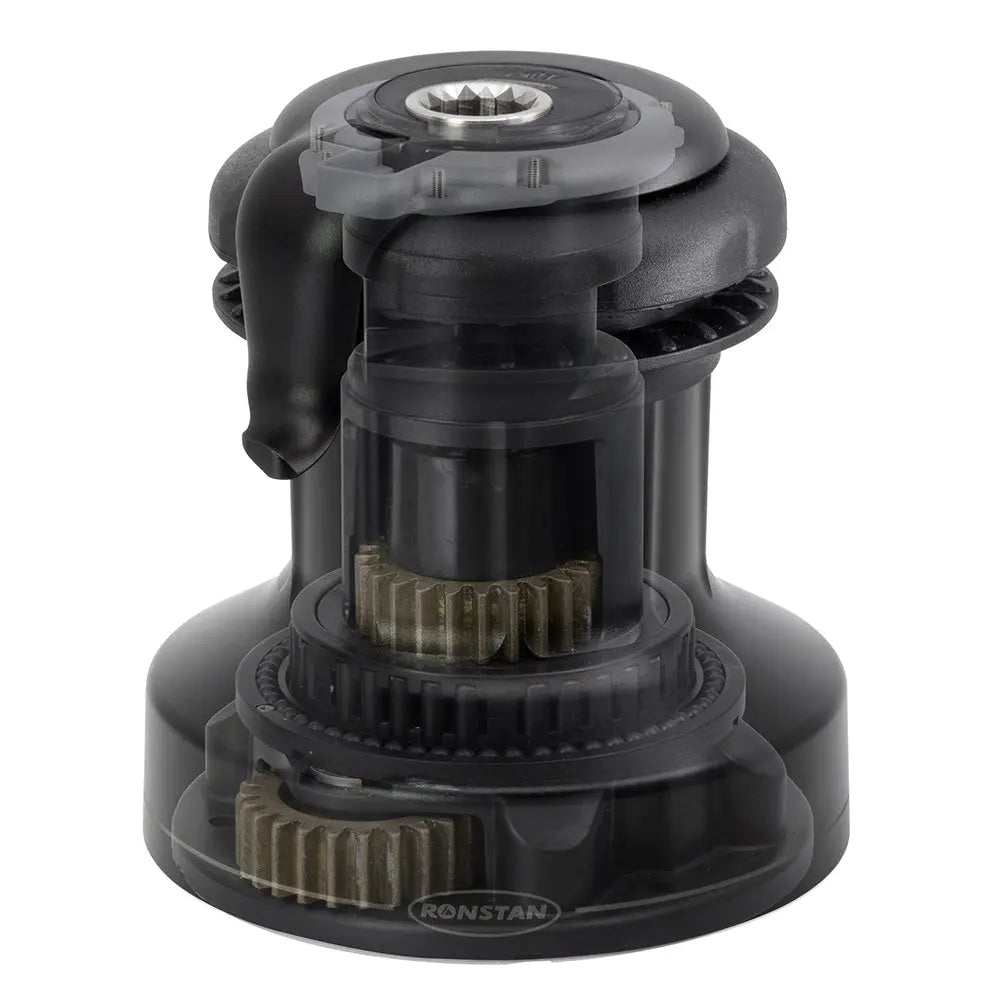

• Proven Andersen winch gearing configuration
• No tools are required for configuration and servicing
• Sprung self-tailing jaws to accept 6-10mm line
• QuickTrim patented self-tailing feature for rapid sail trim and smooth adjustment (30QT 40QT only)

Materials:

• Hard anodized aluminum drum and center stem, aluminum self-tailing arm
• Grade 316 stainless steel shaft and pawls
• Grade 2205 stainless steel axle pins
• Aluminum bronze gears
• Glass-filled nylon self tailer
• Self-lubricating acetal bearings

Specifications:

• Weight (kilogram): 3.1kg
• Power Ratio: 39.5:1
• Base Diameter (millimeters): 151mm
• Maximum Pulling Load (kilogram): 850kg
• Drum Diameter (millimeters): 86mm
• Base Diameter (millimeters): 151mm
• Height (millimeters): 166mm
• Line Entry L (millimeters): 57mm
• Line Size (millimeters): 7-12mm
• Gear Ratio 1st Speed: 1.4:1
• Gear Ratio 2nd Speed: 6.8:1
• Power Ratio 1st Speed: 8.3:1
• Power Ratio 2nd Speed: 39.5:1

The Ronstan 40QT Orbit Winch with QuickTrim offers high-performance functionality for sailing enthusiasts. Crafted from lightweight, machined aluminum, this winch features durable anodized drums and a reliable gear system, ensuring smooth operation under demanding conditions. Its innovative design incorporates Power Ribs, which provide an exceptional grip for lines ranging from ¼ inch to ½ inch, reducing the number of wraps needed and minimizing rope wear. This results in easier line handling, increased control, and longer rigging life. The winch’s low line entry height enhances ease of use on deck, while its robust construction guarantees dependable performance over time.

A standout feature of the Ronstan 40QT Orbit Winch is its tool-free serviceability. The self-tailing arm can be easily removed by pulling back a spring-loaded latch and performing a simple anti-clockwise rotation, allowing quick access to the drum for maintenance or replacement. Reassembly is straightforward, with an audible click confirming proper engagement. The winch’s design includes an adjustable self-tailing jaw that accommodates line sizes from 6 to 10 millimeters, making it versatile for various rigging needs. The inclusion of the patented QuickTrim self-tailer enhances sail trim efficiency by enabling sailors to ease lines smoothly without removing the handle or line from the self-tailer, simply by rotating the cover anti-clockwise.

Built with high-quality materials such as Grade 316 stainless steel shafts, aluminum bronze gears, and glass-filled nylon self-tailing components, the Ronstan Orbit Winch ensures durability and corrosion resistance. Its compact form, weighing only about 6.8 pounds, makes it suitable for a variety of vessel sizes while providing maximum pulling capacity of up to 1,870 pounds. With a gear ratio of 39.5:1 in high-speed mode and 6.8:1 in low-speed mode, the winch delivers precise control whether tensioning or easing lines. For detailed installation and maintenance instructions, refer to the provided owners manual linked here: [Ronstan 40QT Orbit Winch Owners Manual](https://productimageserver.com/literature/ownersManual/99681OM.pdf).

Features:

• Lightweight machined aluminum drum for easy handling

• Power Ribs ensure a controlled grip at all times, reducing line wear

• Proven Andersen winch gearing configuration for reliable performance

• No tools required for disassembly and servicing

• Sprung self-tailing jaws compatible with 6-10mm lines

• Patented QuickTrim self-tailer for rapid sail trim and smooth line adjustments (30QT and 40QT only)
