SKU:55365

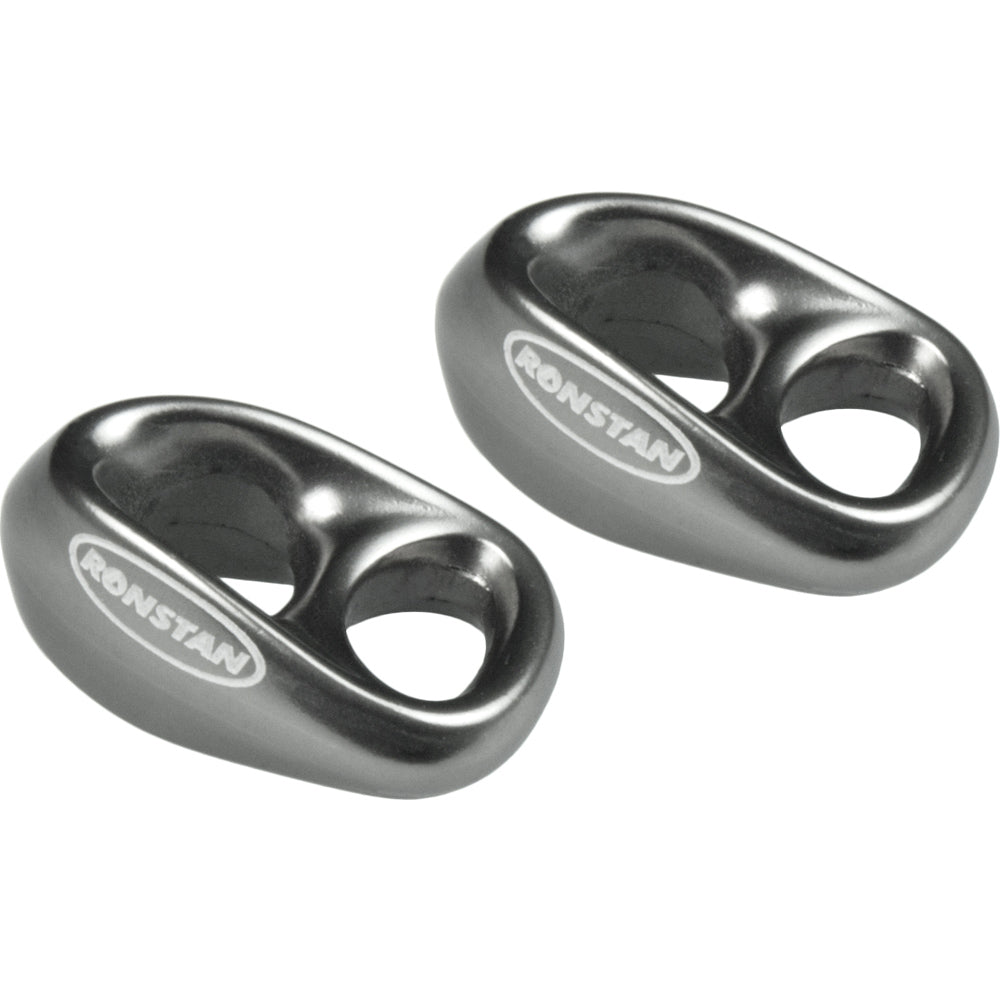

Shock - 3/16 Line - 1/4 Webbing - Grey - Pair
The Sheaveless Black
The obvious choice for those kitesurfers, paragliders, control line deflections and purchase systems that require a lightweight high load capacity block.
Ultimate durability
With no moving parts SHOCKS provide ultimate durability and are maintenance free. They are ideal where sand and grit would compromise a bearing system or where regular flushing out isnt possible. Their gentle 3-dimensional geometry is kind on lines, but is strong enough to cope with poor leads.
Soft attachment specialists
SHOCKS are designed primarily for soft attachment; spliced to a line end or lashed in place. The elongated attachment aperture is also ideal for webbing attachment, ensuring the intended orientation is maintained.
Virtually limitless applications
The applications for SHOCKS are virtually limitless, including numerous high performance dinghy and small sailboat rigging applications including tweakers, vangs, trapezes, cunninghams, barber haulers and kite bridles. They are also handy on larger boats for uses such as lazy jacks, sail covers, tie-downs, ladder and motor hoists.
Hidden performance
At a mere 2.5g (0.1 oz), SHOCKS are outstanding performers in the strength and weight stakes. The clever design and exacting finishing also provide excellent free running at moderate changes of angle. Small hi-tech line specialists SHOCKS accept lines from 1.4mm (1/16) up to 8mm (5/16) and function just as well with hi-tech uncovered braids as with traditional double braids.
Features:
Applications:
Unlimited uses, including kitesurfing, paragliders, sports kites, power kites, stunt kites, depower kites, traction kites, for deflection or purchase system on control lines
Materials:
Anodized Aluminum
Specifications:
Rope :1.4mm-5mm(1/16 - 3/16)
Height:8.5mm(5/16)
Width: 14.9mm(9/16)
Length:22.9mm(7/8)
M.W.L.:175kg(385lbs)
B. L.:350kg(770lbs)
Weight:2.5g(0.01oz)
The Ronstan Shock RF8080GRY-2 is an innovative sheaveless shock designed for demanding high load applications in sailing, kite sports, and control systems. Crafted from anodized aluminum, this lightweight and compact component offers exceptional durability and performance without the need for maintenance. Its impact-resistant construction and salt grit resistance make it ideal for harsh marine environments where traditional bearing systems might fail due to grit or sand intrusion. With a weight of only 2.5 grams, the Shock provides a high strength-to-weight ratio, making it suitable for both small and large rigging setups.
Designed for soft attachment, the Shock features an elongated attachment aperture, facilitating easy splicing or lashing to a line end or webbing. This versatility allows it to be integrated into a wide range of applications, including kite bridles, vang systems, trapezes, Cunningham lines, and small sailboat rigging components. Its flexible geometry ensures compatibility with lines from 1.4mm up to 5mm (1/16 to 3/16 inch), whether high-tech braids or traditional double braids, providing smooth free running at various angles. The Shock's high load capacity of 385 lbs and breaking load of 770 lbs ensure reliable performance in demanding situations.
Whether used on kitesurfing equipment, paragliding lines, or larger boat systems, the Ronstan Shock excels at absorbing shocks and loads while maintaining gentle line handling. Its color-coded design helps with quick identification, and its impact resistance ensures longevity in harsh conditions. The Shock's compact size and lightweight profile do not compromise its strength, making it an essential component for applications requiring high performance and durability in a small form factor. This versatile device is an excellent choice for anyone seeking a reliable, maintenance-free solution for high load line management in various marine and sports environments.
Features:
