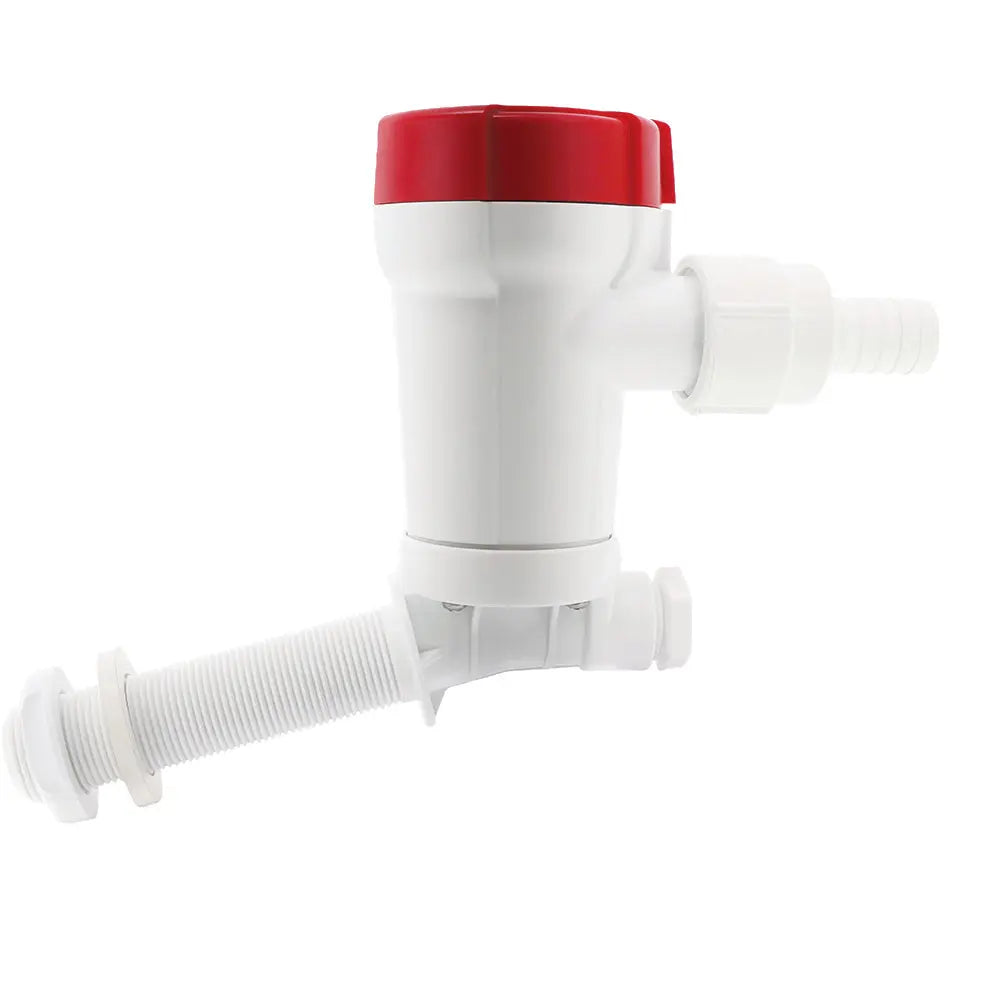

Rule 800 GPH Livewell Pump with Angled Thru-Hull Inlet – Model 603C

800 GPH Livewell Pump Angled Thru-Hull Inlet

Good Fishing Begins with Good Bait

For over 50 years, boat builders and owners have depended on Rule pumps for a safe, fun day out on the water. Building on that legacy of marine performance, the Rule Livewell Pump Series has been designed to deliver superior performance and unsurpassed quality making it the perfect choice for keeping bait and catch alive.

To meet the needs of todays faster watercraft, this livewell pump can withstand the pressures of high-speed water intake scoops.

Easy Motor Replacement

A simple and convenient push and twist button motor cartridge removal system makes it easy to remove and replace the motor cartridge when fitted in hard-to-reach areas of the boat.

High-Efficiency Motor and Impeller Design

The advanced engineering of the Rule Livewell Pump Series ensures a more efficient water circulation, which is crucial for maintaining the well-being of bait/catch in the livewell.

Adaptable to Different Setups and Configurations

All Rule livewell pumps are supplied with threaded nylon hose barb attachments, making them adaptable to different setups and configurations and allowing for versatile hose mounting options.

High Inlet Pressure Capability for High-Speed Vessels

While other livewell pumps are not engineered to withstand the additional water pressures of boats with high-speed pickup scoops, the Rule Livewell Pump Series features a high inlet pressure capability that can keep up with the demands of more powerful boats.

Features:

• High-efficiency pump design for optimal bait health
• Simple one-hand twist click motor cartridge removal/replacement
• Inlets for straight thru-hull, angled thru-hull, and seacock installations
• Secondary inlet port for washdown pump connection
• Advanced anti-airlock protection

Specifications:

• Open Flow: 800 GPH
• Inlet Style: Angled Thru-Hull
• Inlet Size - NPT: 3/4 NPSM Thread
• Discharge Size - Hose Barb: 3/4
• Voltage: 12VDC
• Amp Draw @ 12VDC: 4.1 AMP
• Fuse Size: 7.5 AMP
• Replacement Motor Cartridge PN: 66DR

The Rule 603C livewell pump is engineered to provide reliable water circulation for maintaining healthy bait and catch on your boat. With an open flow capacity of 800 gallons per hour, this pump ensures efficient and consistent water turnover, which is essential for keeping live bait lively and fresh during your day on the water. Its high-efficiency motor and impeller design optimize water flow, reducing energy consumption while maximizing performance. The pump's construction supports the demands of high-speed vessels, including those with water intake scoops, thanks to its high inlet pressure capability, making it suitable for a wide range of boat setups. Designed for durability and ease of maintenance, the Rule 603C features a simple push and twist motor cartridge removal system, allowing for quick motor replacement even in hard-to-reach areas. The pump includes threaded nylon hose barb attachments compatible with various installation configurations, including straight thru-hull, angled thru-hull, and seacock options. Additionally, it offers a secondary inlet port that can be used for washdown pump connections, enhancing versatility. The Rule livewell pump incorporates advanced anti-airlock protection to prevent cavitation, ensuring consistent operation. Powered by a 12VDC system, it draws approximately 4.1 amps and uses a 7.5 AMP fuse for safety. This pump is a trusted choice for boat owners seeking a durable, high-performance livewell solution that can handle the pressures of fast watercraft while providing flexible installation options and reliable operation for maintaining live bait and catch.

Features:

• High-efficiency pump design for optimal bait health

• Simple one-hand twist click motor cartridge removal and replacement

• Inlets designed for straight thru-hull, angled thru-hull, and seacock installations

• Secondary inlet port for washdown pump connection

• Advanced anti-airlock protection for reliable operation
