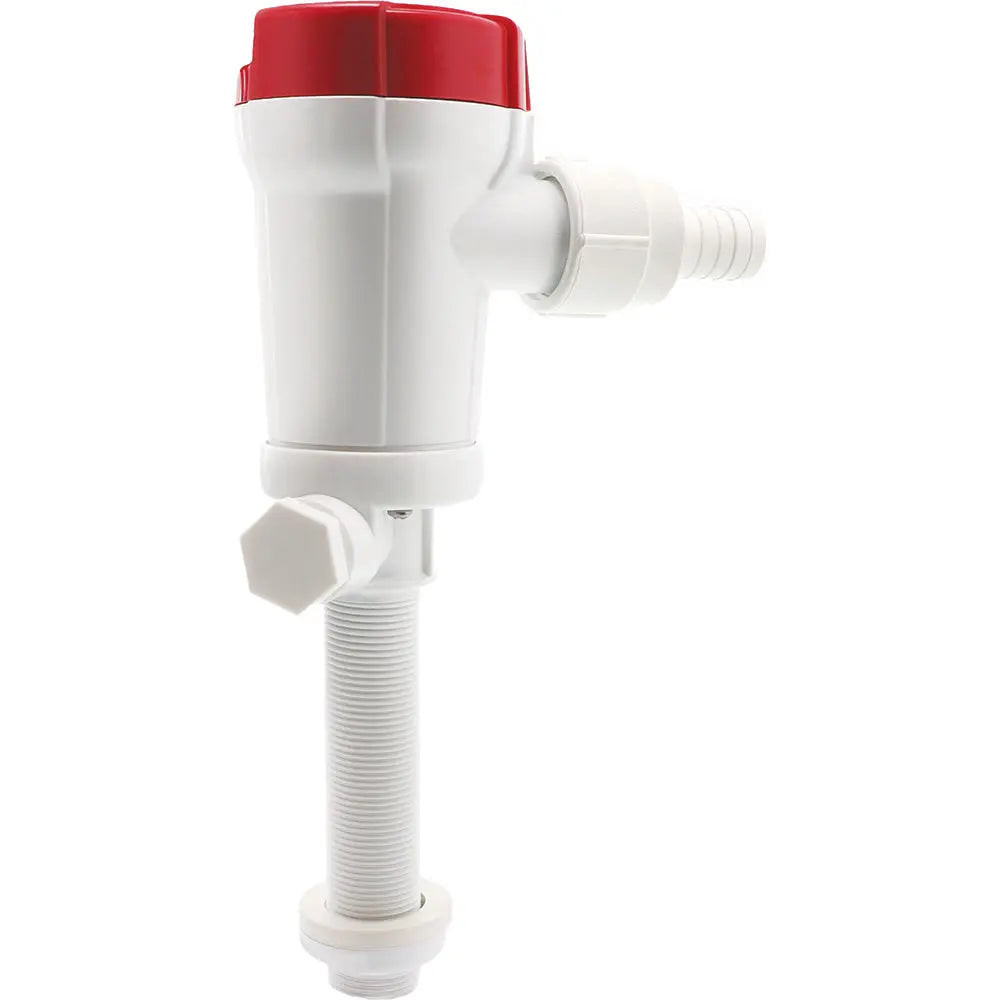

Rule 800 GPH Livewell Pump with Straight Thru-Hull Inlet – Model 603STC

800 GPH Livewell Pump Straight Thru-Hull Inlet

Good Fishing Begins with Good Bait

For over 50 years, boat builders and owners have depended on Rule pumps for a safe, fun day out on the water. Building on that legacy of marine performance, the Rule Livewell Pump Series has been designed to deliver superior performance and unsurpassed quality making it the perfect choice for keeping bait and catch alive.

To meet the needs of todays faster watercraft, this livewell pump can withstand the pressures of high-speed water intake scoops.

Easy Motor Replacement

A simple and convenient push and twist button motor cartridge removal system makes it easy to remove and replace the motor cartridge when fitted in hard-to-reach areas of the boat.

High-Efficiency Motor and Impeller Design

The advanced engineering of the Rule Livewell Pump Series ensures a more efficient water circulation, which is crucial for maintaining the well-being of bait/catch in the livewell.

Adaptable to Different Setups and Configurations

All Rule livewell pumps are supplied with threaded nylon hose barb attachments, making them adaptable to different setups and configurations and allowing for versatile hose mounting options.

High Inlet Pressure Capability for High-Speed Vessels

While other livewell pumps are not engineered to withstand the additional water pressures of boats with high-speed pickup scoops, the Rule Livewell Pump Series features a high inlet pressure capability that can keep up with the demands of more powerful boats.

Features:

• High-efficiency pump design for optimal bait health
• Simple one-hand twist click motor cartridge removal/replacement
• Inlets for straight thru-hull, angled thru-hull, and seacock installations
• Secondary inlet port for washdown pump connection
• Advanced anti-airlock protection

Specifications:

• Open Flow: 800 GPH
• Inlet Style: Straight Thru-Hull
• Inlet Size - NPT: 3/4 NPSM Thread
• Discharge Size - Hose Barb: 1-1/8
• Voltage: 12VDC
• Amp Draw @ 12VDC: 4.1 AMP
• Fuse Size: 7.5 AMP
• Replacement Motor Cartridge PN: 66DR

The Rule 800 GPH Livewell Pump with straight thru-hull inlet is designed to provide reliable and efficient water circulation for your boat’s livewell system. Built on a legacy of over 50 years of marine performance, this pump ensures your bait and catch stay alive and healthy during your fishing trips. Its high-efficiency motor and impeller design promote optimal water flow, crucial for maintaining bait vitality and keeping your catch fresh throughout your outing. Specifically engineered to withstand high-speed water intake pressures, it is suitable for fast boats with high-speed water pickup scoops, ensuring consistent performance regardless of vessel speed. Easy motor replacement is facilitated by a push and twist button system, allowing quick and convenient servicing even in hard-to-reach areas without extensive disassembly. The pump includes threaded nylon hose barb attachments that adapt to various installation configurations, providing versatility in setup. Additionally, it features a secondary inlet port for washdown pump connection and advanced anti-airlock protection, making it a dependable choice for demanding marine environments. The Rule 603STC operates on 12VDC, consuming just over 4 amps, with an open flow rate of 800 gallons per hour, making it suitable for a variety of livewell sizes and boat types. Its durable construction and reliable performance make it an excellent investment for serious anglers and boat owners seeking to maintain optimal bait conditions and catch freshness on the water.

Features:

• High-efficiency pump design for optimal bait health

• Simple one-hand twist click motor cartridge removal and replacement

• Inlets compatible with straight thru-hull, angled thru-hull, and seacock installations

• Secondary inlet port for washdown pump connection

• Advanced anti-airlock protection for reliable operation
