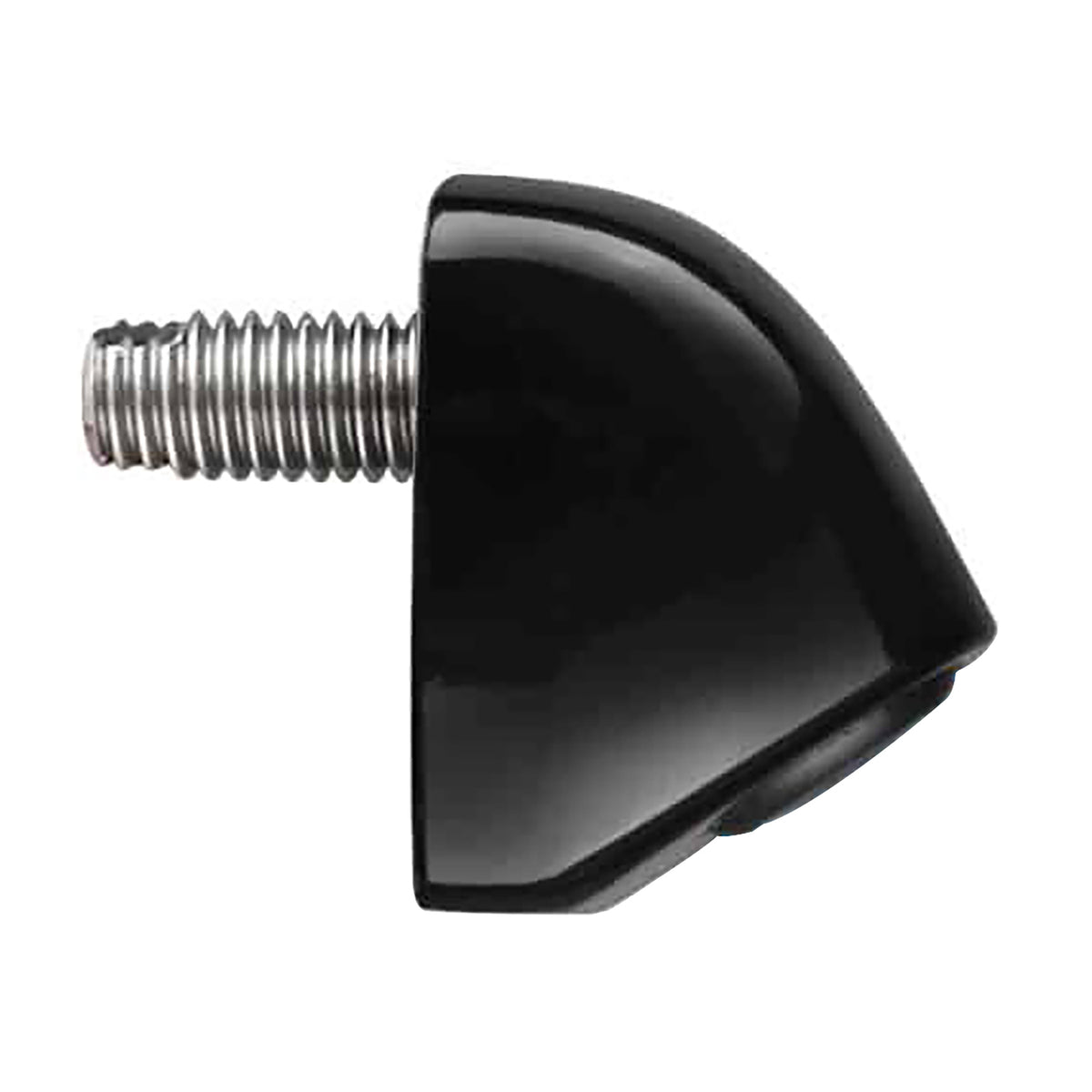

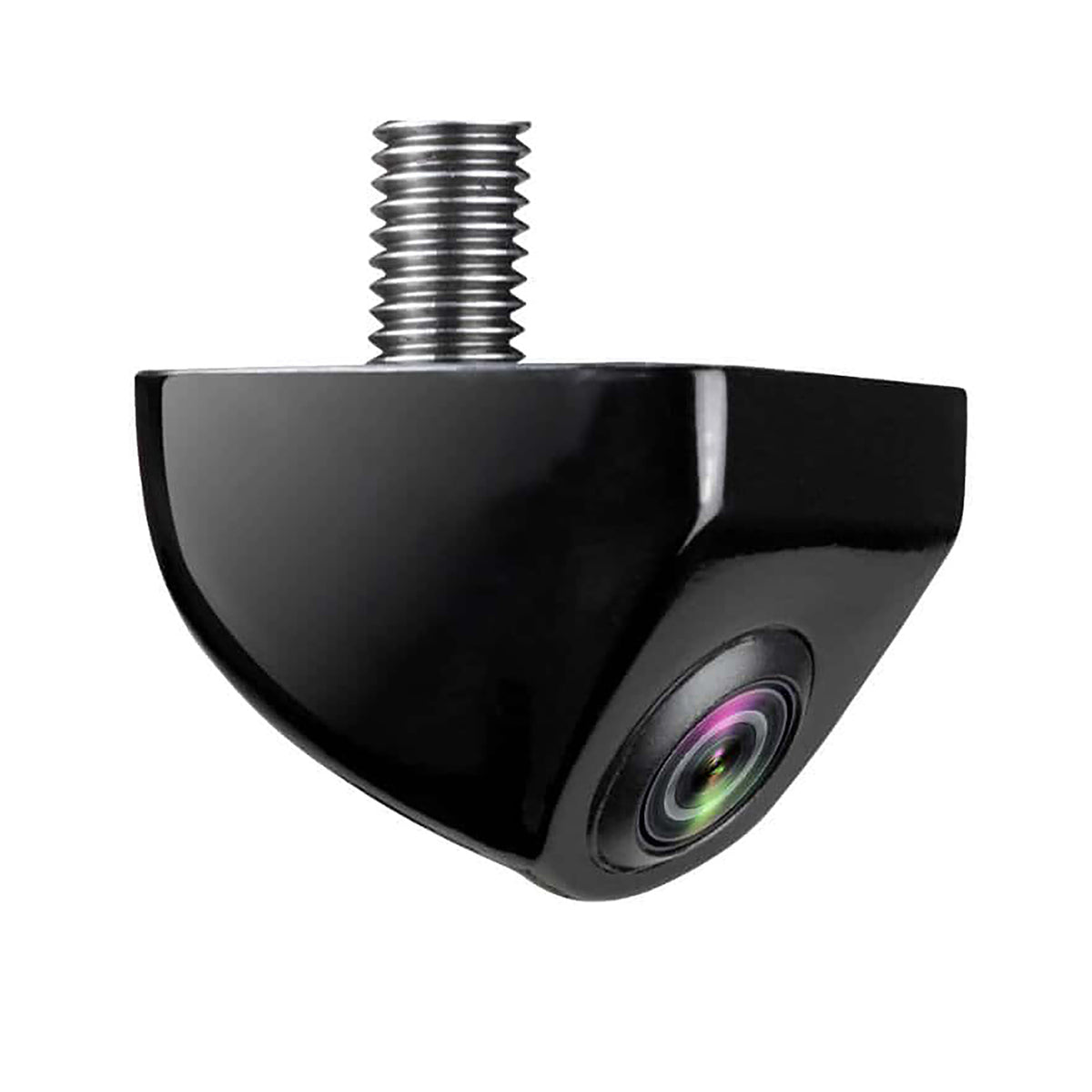

Rydeen CM-DUO3 HD Dual-Mount Backup Camera for 12-Volt Vehicles

Rydeen CM-DUO3 HD Wired Backup/Front Camera with 2 Mounting Options, 960 x 480p 170deg View, Mirror/Standard Views, 0.1 Lux, Parking Lines, IP67/68, CM-DUO3HD

The Rydeen CM-DUO3 HD dual-mount backup camera provides flexible front- or rear-view coverage for 12-volt automotive systems. Designed for installation on a deck lid or other suitable vehicle surface, this compact camera supports safer maneuvering, improved visibility, and versatile positioning for a wide range of cars, trucks, vans, and specialty vehicles.

With a 960 x 480 image resolution and 960 TV lines, the CM-DUO3 HD delivers clear video for everyday driving and parking applications. Its advanced 1/3-inch CMOS sensor, 1.7 mm lens, and 170-degree viewing angle help provide broad coverage around the vehicle. The camera is rated at 0.1 lux, allowing it to operate in very low-light conditions, including nearly dark settings. Mirror or standard image modes can be selected to match front- or rear-facing installation, while integrated parking lines can be switched on or off as needed.

The adjustable camera angle makes it easier to fine-tune the viewing position after installation. A quick-disconnect wire harness simplifies connection and service, and the black waterproof housing carries IP67/IP68 protection for dependable performance against dust and moisture. The camera is designed for operating temperatures from -22°F to 158°F, supporting use in demanding seasonal conditions.

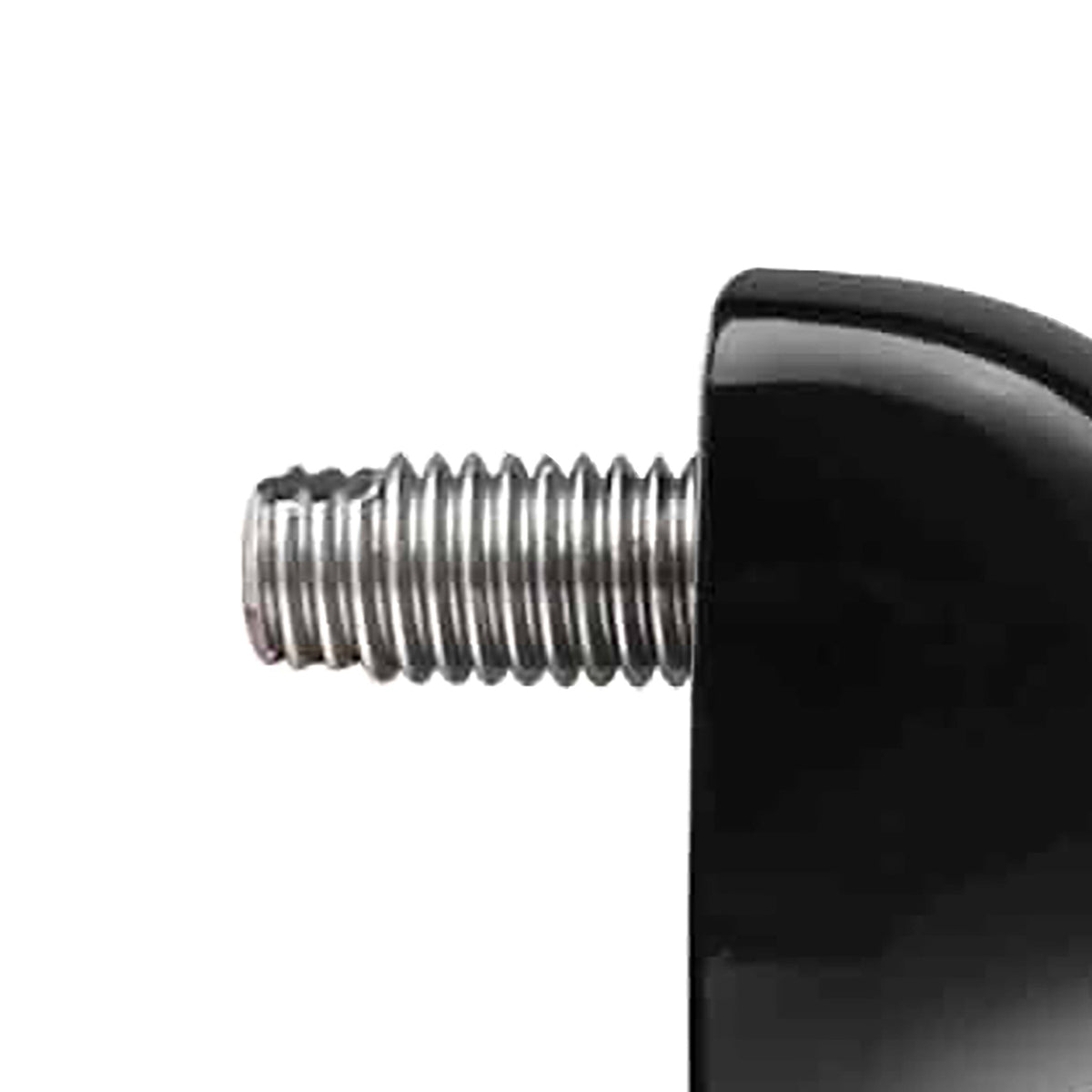

Installation is suitable for surface mounting with the included double-sided adhesive tape or for a more permanent installation using short sheet-metal screws through an 8 mm hole. The Rydeen CM-DUO3 HD includes a 22.5-foot power harness for convenient routing through many vehicle interiors. Its dual-mount functionality and selectable imaging options make it a practical choice for drivers seeking a flexible, weather-resistant vehicle camera solution.

Features:

• 12-volt compatibility: Designed for use as a front or backup camera in 12-volt vehicle systems
• High-definition video: Provides 960 x 480 resolution and 960 TV lines for clear viewing
• Low-light performance: Uses a 1/3-inch CMOS sensor and 0.1-lux sensitivity for visibility in very dark conditions

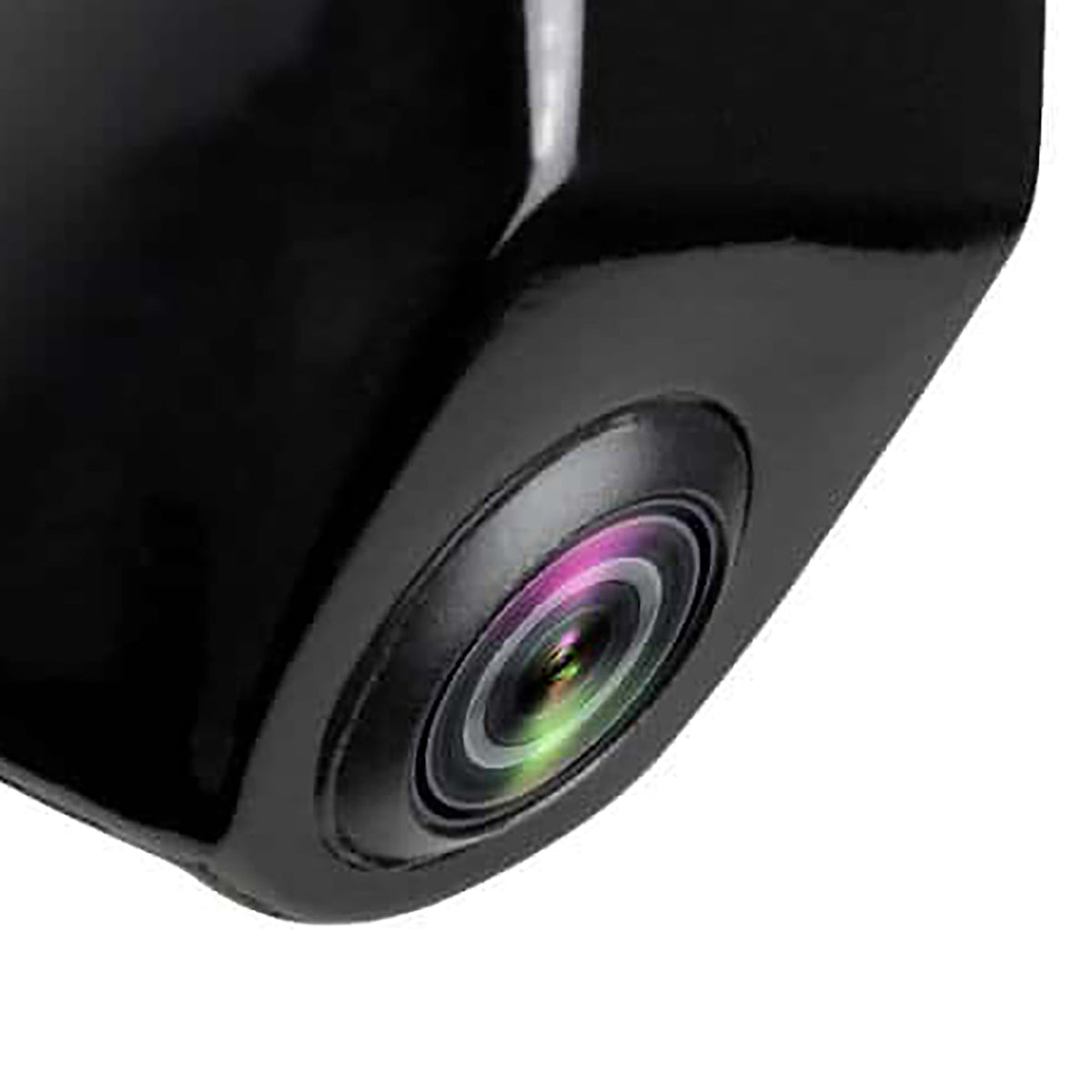

• Wide viewing angle: Features a 1.7 mm lens with a 170-degree viewing angle
• Selectable image modes: Switches between mirror and standard image settings
• Parking line control: Allows parking guidelines to be turned on or off

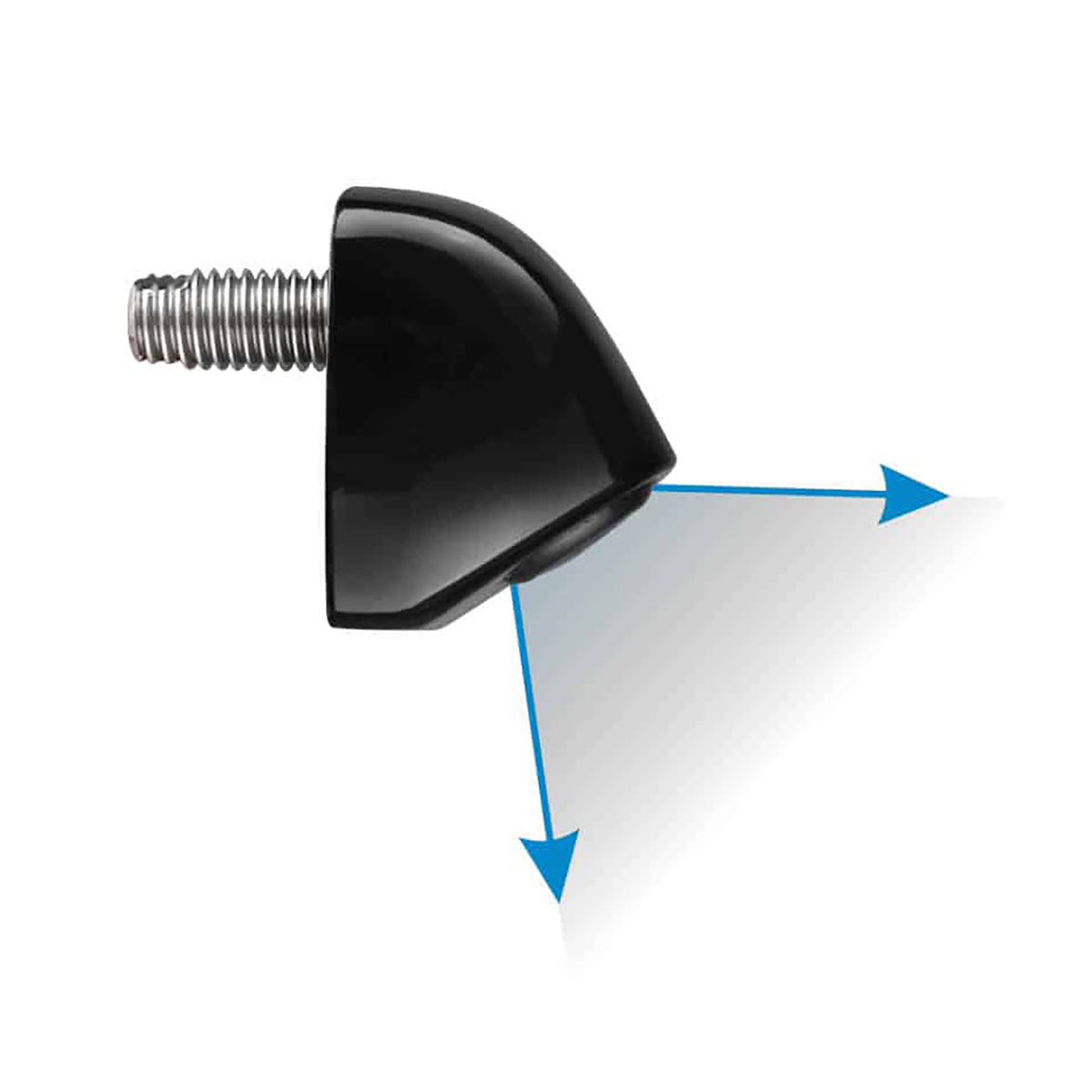

• Adjustable viewing position: Camera angle can be adjusted to suit the installation
• Weather-resistant housing: Black IP67/IP68-rated casing helps protect against dust and water
• Flexible installation: Supports adhesive surface mounting or drilling installation with short sheet-metal screws
• Quick-disconnect harness: Simplifies wiring connection and service
• Wide temperature range: Operates from -22°F to 158°F
• Included harness: Comes with a 22.5-foot power harness
