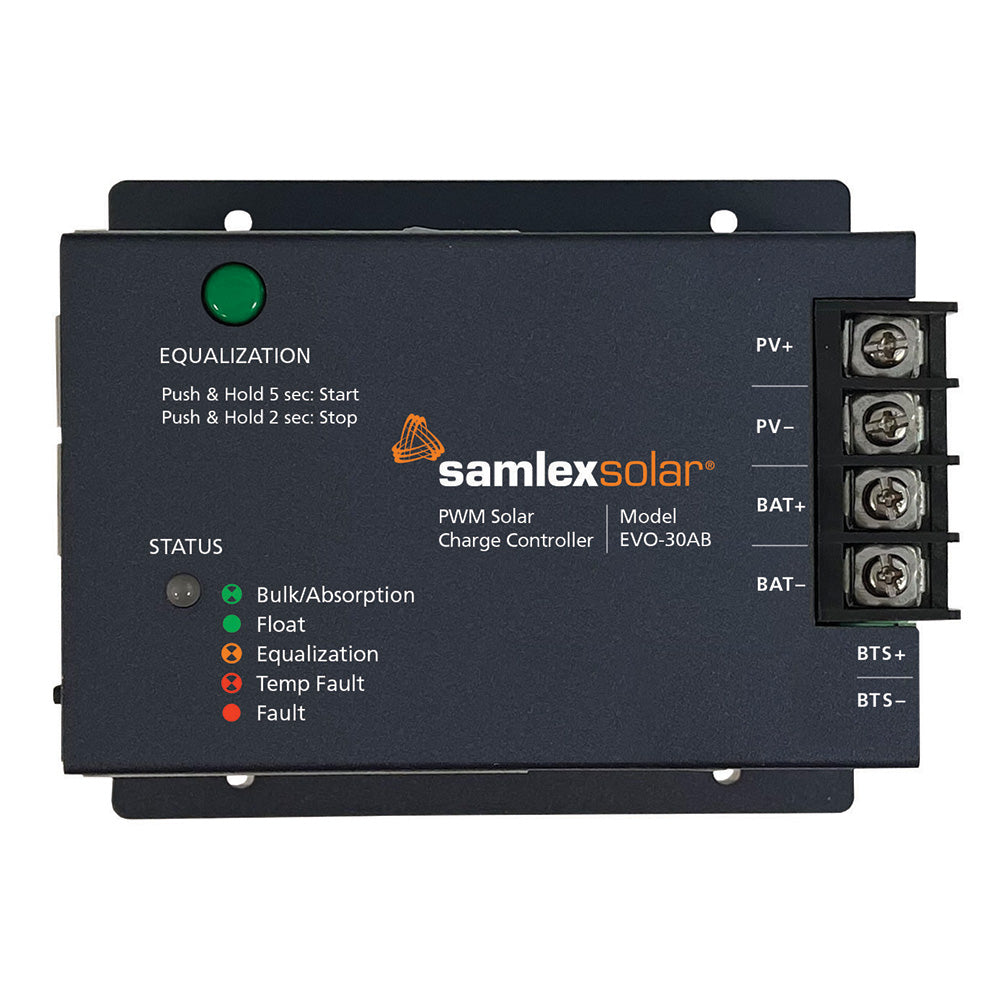

Samlex America EVO-30AB 12/24V 30A PWM Solar Charge Controller

Solar Charge Controller - 12/24 PWM - 30 AMP

Use the Samlex EVO-30AB Charge Controller as a stand-alone 30 amp solar charge controller or expand the functionality of the EVO-RC-PLUS as the central display for both your EVO inverter/charger and your solar system.

Features:

• When connected to the EVO inverter/charger, the EVO-30AB will follow the programming set in the unit.
• Add theEVO-RC-PLUSand it will display the status for both the EVO inverter/charger and solar system from ONE remote display
• Compatible with most battery types including Lead Acid and Lithium-Ion (LiFePO4) batteries.
• Manage multiple panels up to 600W in a 12V system, or up to 1000W in a 24V system under specified conditions

Additional Features:

• Optional 30AB-TS Battery Temperature Sensor available.
• 30 Amp charging capacity
• 8 charge settings for different batteries
• Selectable battery equalization option
• Use with 12/24V batteries
• Compatible withEVO-RC-PLUSRemote Display (Optional)
• Increased functionality when used with an EVO Series Inverter/Charger

Specifications:

• Input: 12V / 24V
• Amps: 30 Amp
• Weight: 0.8 (lbs)
• Weight: 0.36 (kg)
• Dimensions: 4.81 x 1.87 x 4.15 (in)
• Dimensions: 12.21 x 4.75 x 10.54 (cm)

Applications:

• Recreation vehicles
• Service vehicles
• Boats
• Fieldwork
• Telecommunications
• Mobile offices
• Construction sites

Samlex America EVO-30AB Solar Charge Controller provides reliable 30-amp PWM charging for 12V or 24V battery systems. Designed for use as a stand-alone solar charge controller or as part of an integrated Samlex EVO power system, it helps regulate solar energy and support dependable battery charging in recreational, mobile, marine, commercial, and field applications.

When connected to a Samlex EVO inverter/charger, the EVO-30AB follows the programming configured in the inverter/charger for coordinated system operation. Pairing the controller with the optional EVO-RC-PLUS remote display provides centralized monitoring of both the EVO inverter/charger and solar system from one convenient interface. The controller is compatible with multiple battery chemistries, including lead-acid and lithium-ion LiFePO4 batteries.

The EVO-30AB supports solar arrays up to 600 watts in a 12V system or up to 1,000 watts in a 24V system under specified operating conditions. Eight selectable charging profiles help accommodate different battery types, while the selectable battery equalization function supports appropriate maintenance for compatible lead-acid batteries. An optional 30AB-TS battery temperature sensor is available to enhance charging control based on battery temperature.

Built for flexible mobile and off-grid power installations, the Samlex America EVO-30AB is suitable for recreational vehicles, service vehicles, boats, mobile offices, telecommunications equipment, construction sites, and fieldwork. Its compact enclosure simplifies installation where space is limited, while increased functionality is available when used with an EVO Series inverter/charger. Refer to the owner's manual for installation requirements, wiring guidance, battery compatibility, and operating conditions.

Features:

• 30-amp PWM solar charge controller for 12V or 24V battery systems
• Compatible with lead-acid and lithium-ion LiFePO4 batteries
• Supports solar arrays up to 600 watts in 12V systems under specified conditions
• Supports solar arrays up to 1,000 watts in 24V systems under specified conditions
• Eight selectable charging settings for different battery types
• Selectable battery equalization function
• Compatible with the optional EVO-RC-PLUS remote display
• Coordinates programming with Samlex EVO inverter/chargers
• Optional 30AB-TS battery temperature sensor available
• Suitable for RVs, boats, service vehicles, mobile offices, telecommunications, construction sites, and fieldwork
