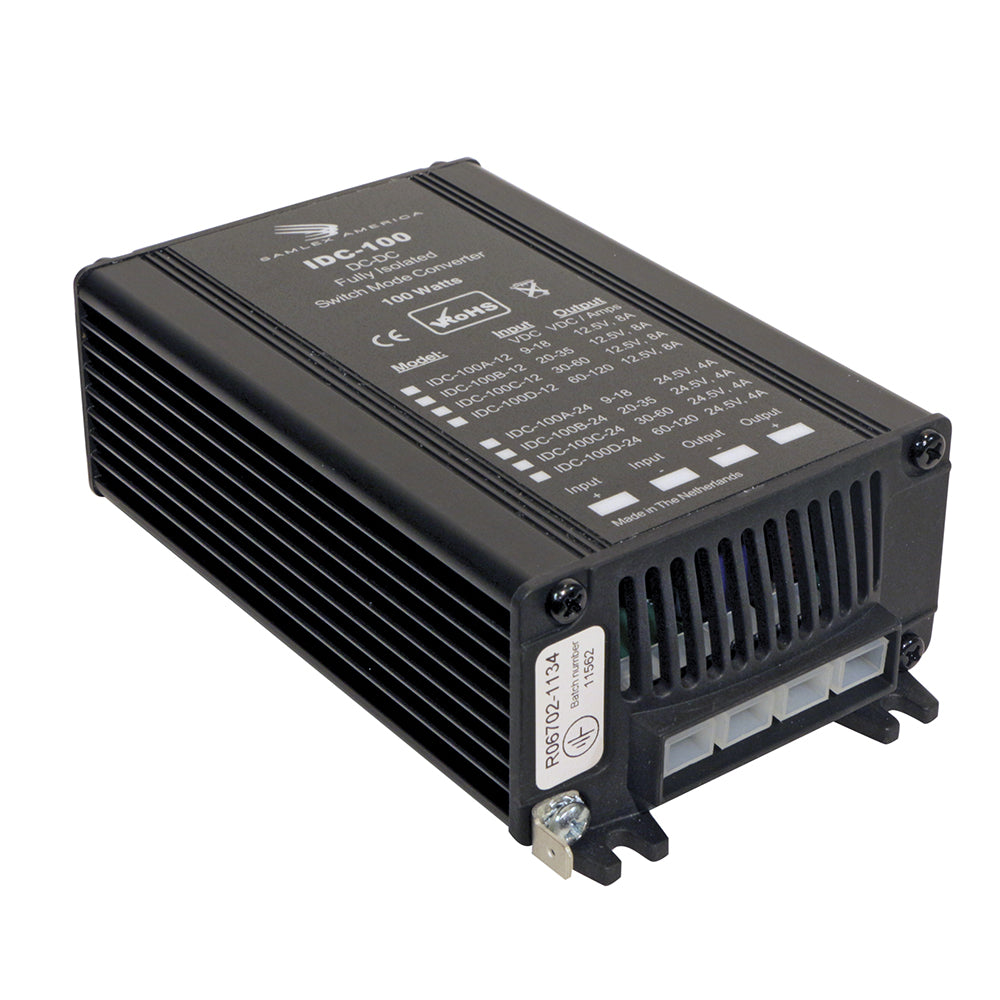

Samlex America IDC-100B-12 100W Fully Isolated DC-DC Converter with 12.5V Output and 8A Current

100W Fully Isolated DC-DC Converter - 8A - 20-35V Input - 12.5V Output

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 8 Amps (at 35 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-100B-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Features:

• Fully Isolated
• Short Circuit Protected
• Current Limited
• 2 Year Warranty
• CE Approved

Specifications:

• Input: 20-35 VDC
• Output: 12.5 VDC
• Amps: 8 Amps
• Weight: 1.2 (lbs)
• Weight: 0.54 (kg)
• Dimensions: 6 x 3.5 x 1.9 (in)
• Dimensions: 15.2 x 8.9 x 4.8 (cm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America IDC-100B-12 is a high-efficiency 100 Watt isolated DC-DC converter designed for applications requiring galvanic isolation between input and output. It provides a stable 12.5 Volt DC output capable of delivering up to 8 Amps of current, making it suitable for demanding power conversion tasks in various industrial and transportation settings. The converter accepts an input voltage range of 20 to 35 Volts DC, ensuring compatibility with a wide array of power sources. Its compact housing and robust design enable easy integration into confined spaces, such as in heavy-duty trucks, marine vessels, or military equipment. The IDC-100B-12 features fold-back current limiting and comprehensive protection against short circuits, overheating, overvoltage, and reverse polarity, enhancing system reliability and safety. This unit is compliant with EMI and EMC standards, including European directives EN50081-1 and EN50082-1, and carries CE approval for use in European markets. Equipped with quick disconnect connectors, installation and maintenance are simplified, reducing downtime and facilitating field servicing. Backed by a two-year limited warranty, this converter offers a reliable power solution for critical applications including earth-moving machinery, buses, marine vehicles, CB radios, 12V lighting systems, and audio systems. Its lightweight, durable construction combined with proven safety features makes it an ideal choice for demanding environments where galvanic isolation and stable voltage are essential. For detailed installation and safety information, refer to the official owner’s manual available online.

Features:

• Fully Isolated: Ensures galvanic separation between input and output for safety and noise reduction

• Short Circuit Protected: Automatically safeguards against damage during faults

• Current Limited: Prevents overload by limiting output current to 8A

• 2 Year Warranty: Provides peace of mind with reliable service coverage

• CE Approved: Meets European safety and electromagnetic compatibility standards
