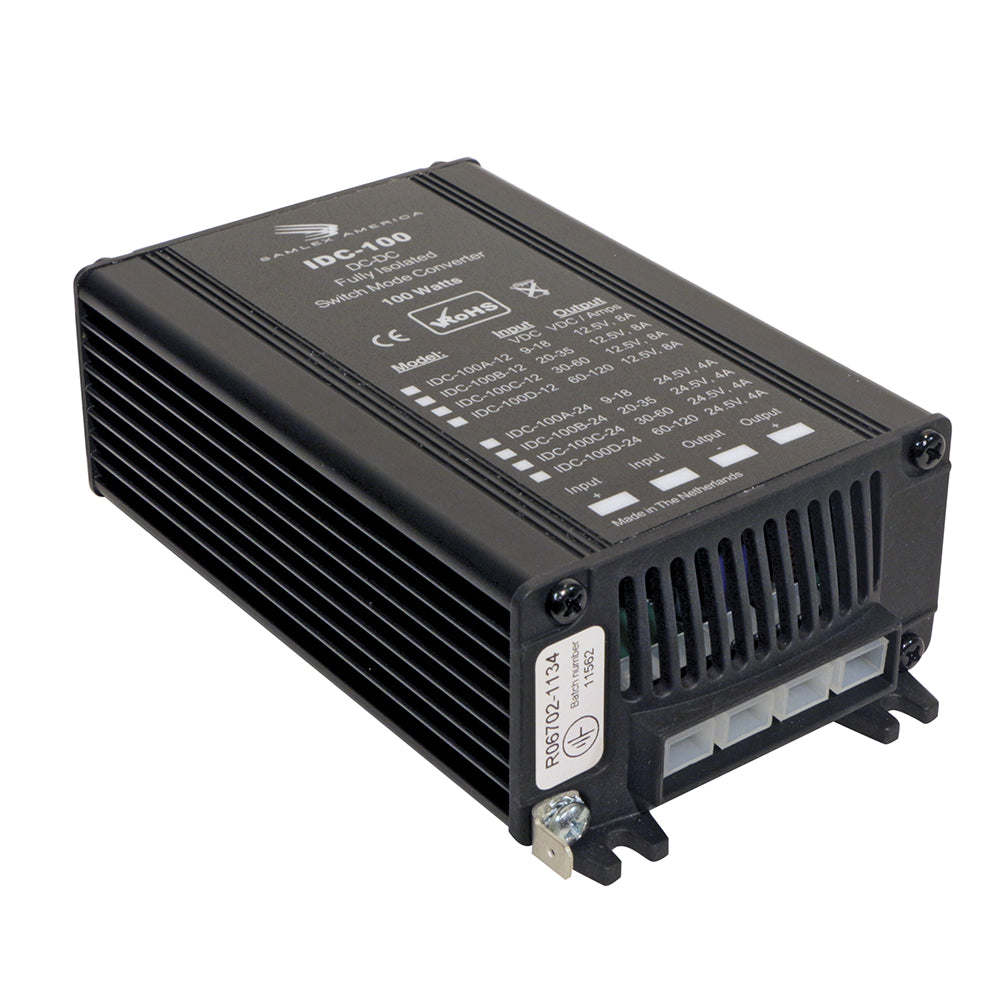

Samlex America IDC-100C-12 100W Fully Isolated DC-DC Converter with 8A Output for 30-60V Input

100W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 12.5V Output

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 8 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-100C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features:

• Fully Isolated
• Short Circuit Protected
• Current Limited
• 2 Year Warranty
• CE Approved

Specifications:

• Input: 30-60 VDC
• Output: 12.5 VDC
• Amps: 8 Amps
• Weight: 1.2 (lbs)
• Weight: 0.54 (kg)
• Dimensions: 6 x 3.5 x 1.9 (in)
• Dimensions: 15.2 x 8.9 x 4.8 (cm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America IDC-100C-12 is a high-efficiency, 100-watt isolated DC-DC converter designed for demanding applications that require galvanic isolation between input and output. This converter delivers a stable 12.5V DC output at a maximum current of 8 amps, making it suitable for various industrial, automotive, and marine systems. Its compact form factor ensures easy integration into tight spaces, while the fold-back current limiting and comprehensive protection features enhance system reliability and safety. Constructed with high-quality components, the IDC-100C-12 is compliant with European EMI/EMC standards EN50081-1 and EN50082-1, and it is CE approved. The unit includes quick-connect flat blade connectors for straightforward installation and setup. Its rugged design and protective features make it ideal for use in earth-moving equipment, heavy trucks, buses, marine vehicles, CB radios, 12-volt lighting systems, and audio systems. The converter's robust protection against short circuits, overheating, overvoltage, and reverse polarity ensures dependable operation in challenging environments. Backed by a two-year limited warranty, the IDC-100C-12 from Samlex America offers a reliable solution for power conversion needs that demand high performance and safety standards. Its lightweight and compact dimensions make it suitable for integration into various mobile and stationary applications, providing a stable power source with minimal electromagnetic interference.

Features:

• Fully Isolated: Ensures galvanic isolation between input and output for safety and noise reduction

• Short Circuit Protected: Built-in protection against short circuits to prevent damage

• Current Limited: Fold-back current limiting to safeguard the converter and connected devices

• 2 Year Warranty: Confidence in product durability and performance

• CE Approved: Meets European safety and electromagnetic compatibility standards
