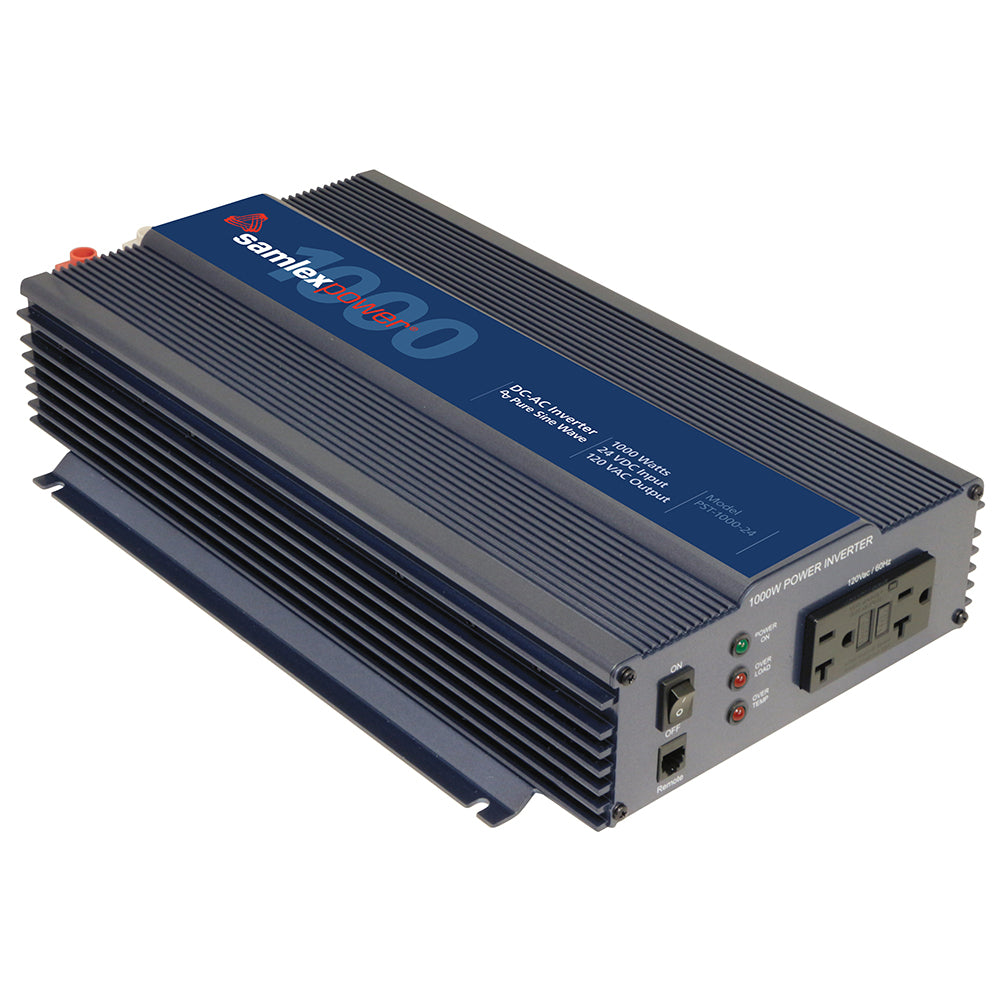

Samlex America PST-1000-24 1000W Pure Sine Wave Inverter - 24V DC to 120V AC Power Converter

1000W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 24 Volts DC to 1000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 0.85 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Temperature controlled cooling fan reduces energy consumption
• Low interference
• Wide operating DC input range: 21.0 - 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation for emergency back up
• UPC Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-15A
• Comes with pin-type battery cable lugs
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 1000
• Surge: 2000 Watts
• Remote Control: RC-15A sold separately
• Weight: 8.8 (lbs)
• Weight: 4.0 (kg)
• Dimensions: 9.37 x 15.63 x 3.23 (in)
• Dimensions: 238 x 397 x 82 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America PST-1000-24 is a robust 1000-watt pure sine wave inverter designed to convert 24V DC power into clean, reliable 120V AC power at 60 Hz. Engineered for heavy-duty applications, this inverter features a highly efficient design with temperature-controlled cooling fans that reduce energy consumption and ensure optimal performance during prolonged use. Its compact form factor and dual GFCI protected outlets make it ideal for mobile and stationary power needs, including service vehicles, mobile offices, boats, RVs, and emergency backup systems.

Built with safety and durability in mind, the PST-1000-24 includes a Universal Protection Circuit that guards against low and high voltage, over-temperature, over-load, and short circuits, ensuring your connected devices are protected. The inverter’s wide input voltage range of 21 to 33 volts DC accommodates various battery configurations, while its low idle power draw of less than 0.85 amps helps extend battery life in standby conditions. It also comes with pin-type battery cable lugs for secure connections and the option for remote control operation with the sold-separately RC-15A model.

Designed for continuous operation under demanding conditions, the PST-1000-24 is safety certified to UL standards and FCC compliant, making it suitable for a range of applications from recreational vehicles and camping to telecommunication and solar power systems. Its surge capacity of 2000 watts provides additional headroom for starting heavy loads, ensuring dependable performance. The inverter’s straightforward front panel includes easy-access GFCI outlets, making it simple to connect and power multiple devices simultaneously. Backed by a two-year limited warranty, the Samlex PST-1000-24 combines reliability, safety, and efficiency in one compact package.

Features:

• High efficiency design reduces energy consumption during operation

• Temperature controlled cooling fan minimizes noise and extends component life

• Low interference ensures clean power for sensitive electronics

• Wide operating DC input range from 21V to 33V for versatile battery compatibility

• Suitable for heavy-duty loads with continuous operation capability

• Universal Protection Circuit guards against low/high voltage, temperature, overload, and short circuits

• Low idle power draw conserves battery life during standby

• Dual GFCI protected AC outlets for safe multiple device connections

• Optional remote control compatibility (sold separately RC-15A)

• Includes pin-type battery cable lugs for secure connections

• Safety certified to UL standards and FCC compliant for reliable use
