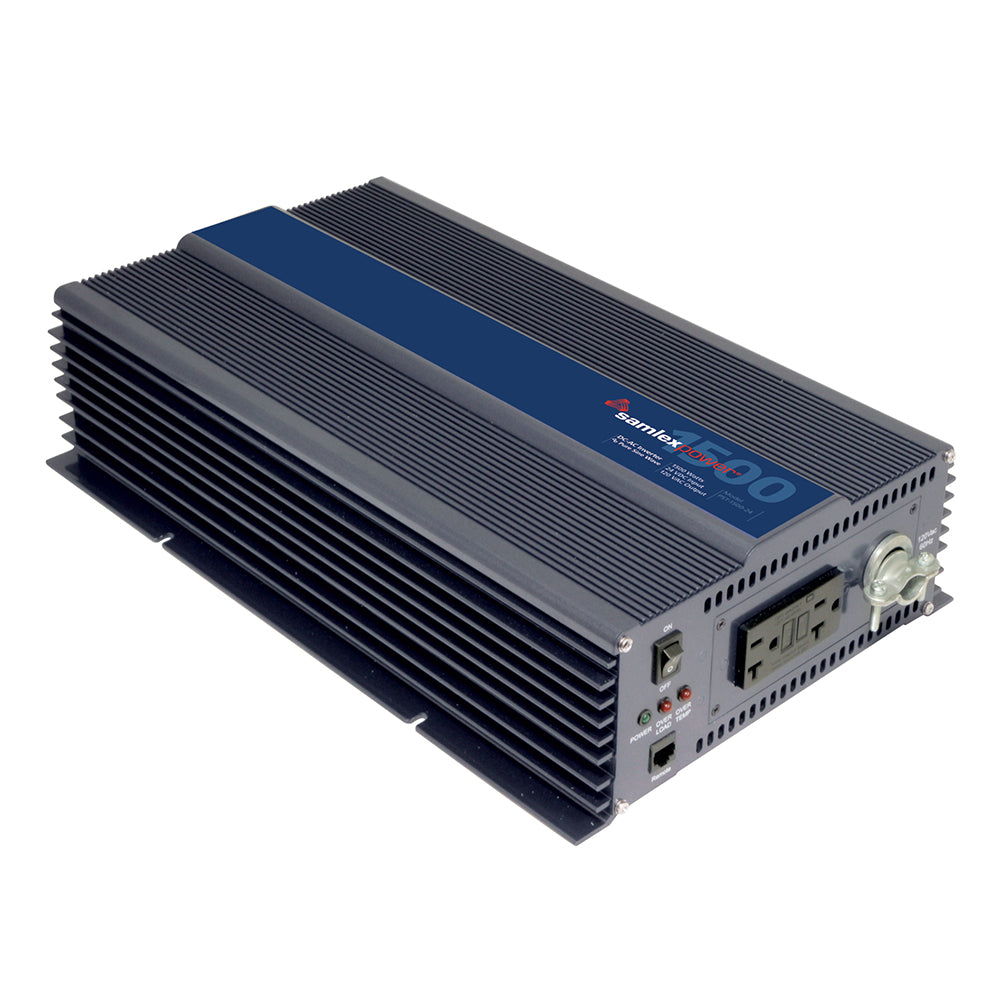

Samlex America PST-1500-24 1500W Pure Sine Wave Inverter - 24V DC to 120V AC

1500W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs or can be hard-wired. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan reduces energy consumption
• Low interference
• Wide operating DC input range: 21.4 - 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation for emergency back up
• UPC Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 1500
• Surge: 3000 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standards
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America PST-1500-24 is a high-efficiency pure sine wave inverter designed to convert 24V DC power into 120V AC at 60Hz, providing reliable power for a variety of applications. With a continuous power output of 1500 Watts and a surge capacity of 3000 Watts, this inverter is ideal for heavy-duty loads such as service vehicles, mobile offices, boats, and emergency backup systems. Its robust construction and commercial-grade design ensure long-lasting performance during extended operation. The unit features a UL safety certification, low interference operation, and a temperature-controlled cooling fan that reduces energy consumption while maintaining optimal operating temperature. The inverter can be hard-wired or connected via pin-type battery cable lugs, offering flexible installation options to suit your setup. Dual GFCI-protected AC outlets on the front panel provide safe access to power, and the device incorporates a Universal Protection Circuit (UPC) to safeguard against low voltage, overvoltage, over-temperature, overload, and short circuits. Optional remote control functionality (sold separately) allows remote operation. Its wide input voltage range (21.4 to 33.0 VDC) makes it suitable for various battery configurations, and its low idle power draw enhances energy efficiency. The inverter's compact dimensions and lightweight design make it portable and easy to integrate into existing systems. Suitable for telecommunication equipment, recreational vehicles, solar power systems, and more, the PST-1500-24 combines durability, safety, and performance to meet demanding power needs.

Features:

• High efficiency: Converts 24V DC to 120V AC with minimal energy loss

• Hard-wired capability: Can be permanently installed for reliable operation

• Temperature controlled cooling fan: Reduces energy consumption and maintains optimal temperature

• Low interference: Ensures clean power suitable for sensitive electronics

• Wide DC input range: Supports 21.4 to 33.0 VDC for versatile battery compatibility

• Heavy-duty design: Suitable for continuous operation in demanding environments

• Universal Protection Circuit (UPC): Safeguards against low voltage, overvoltage, over-temperature, overload, and short circuit

• Low idle power draw: Enhances energy efficiency during standby

• Dual GFCI outlets: Provides safe, protected AC power access

• Optional remote control: Model RC-200 allows remote operation (sold separately)

• Safety certified: Meets UL standards for safety and reliability
