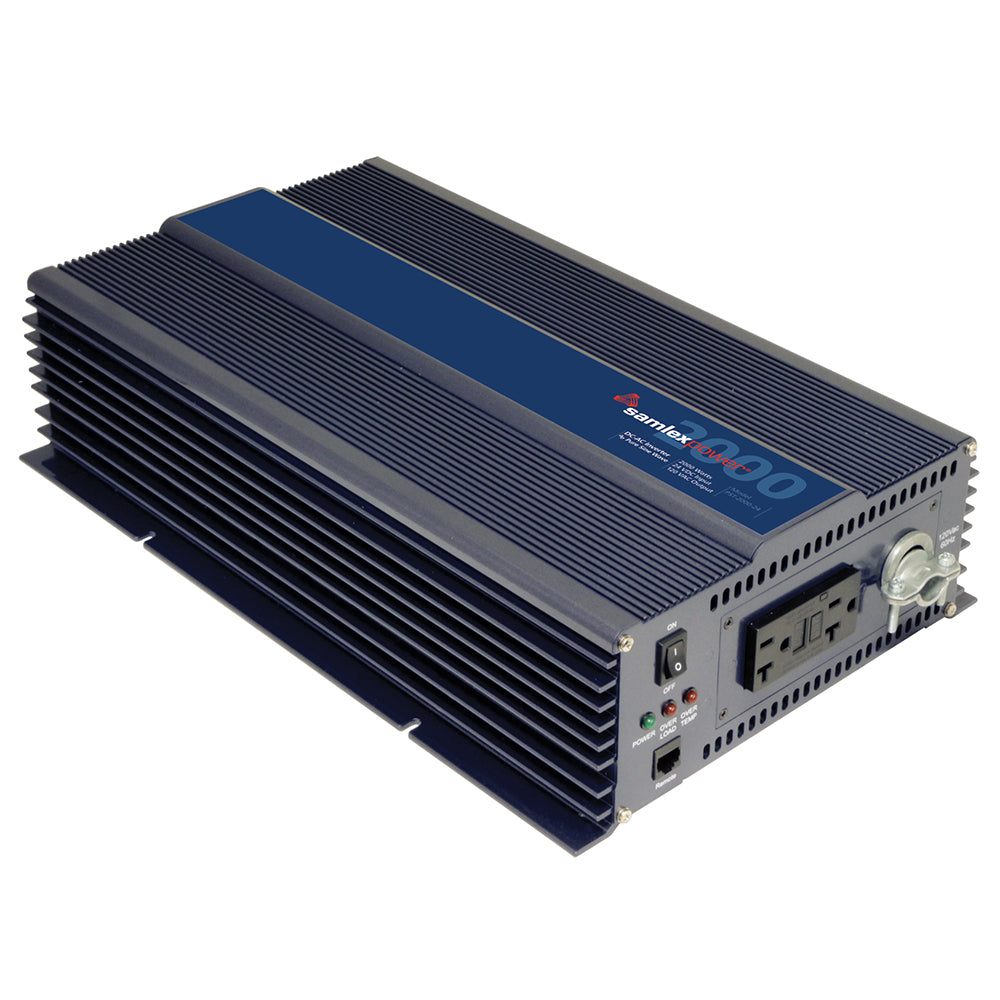

Samlex America PST-2000-24 2000W Pure Sine Wave Inverter for 24V DC Systems

2000W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 24 Volts DC to 2000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan reduces energy consumption
• Low interference
• Wide operating DC input range: 21.4 - 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation for emergency back up
• UPC Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-200
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 2000
• Surge: 3500 Watts
• Remote Control: RC-200 sold separately
• Weight: 15.6 (lbs)
• Weight: 7.1 (kg)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Dimensions: 263 x 468.2 x 105.6 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America PST-2000-24 is a high-performance 2000-watt pure sine wave inverter designed to efficiently convert 24V DC power into 120V AC at 60 Hz. Built for heavy-duty applications, this inverter features a commercial-grade design suitable for long-term, continuous operation in emergency backup systems, service vehicles, mobile offices, boats, and recreational vehicles. Its robust construction ensures reliable power delivery, with safety certifications to UL standards and FCC compliance for peace of mind. The unit includes dual GFCI protected outlets on the front panel, allowing safe connection of various AC devices. It is equipped with a temperature-controlled cooling fan that adjusts to operating conditions, reducing energy consumption and noise during extended use. The inverter also offers overload protection, low battery alarm/shutdown, and a universal protection circuit (UPC) that safeguards against low voltage, overvoltage, over-temperature, overload, and short circuits. Its wide DC input range of 21.4 to 33 volts accommodates various power sources, making it versatile for different applications. The PST-2000-24 can be hardwired for custom installations and supports optional remote control operation via Model RC-200, sold separately. Its compact dimensions and lightweight design make it suitable for installation in confined spaces, while its low idle power draw enhances overall efficiency. This inverter is an ideal solution for powering sensitive electronics such as computers, televisions, gaming consoles, and home appliances, as well as for critical field and emergency power needs. Backed by a two-year limited warranty, the Samlex PST-2000-24 combines performance, safety, and reliability for demanding power conversion requirements.

Features:

• High efficiency design for optimal power conversion

• Can be hardwired into custom electrical systems

• Temperature-controlled cooling fan reduces energy consumption

• Low electromagnetic interference for sensitive electronics

• Wide operating DC input range: 21.4 - 33.0 VDC

• Suitable for heavy-duty loads and continuous operation

• Universal Protection Circuit safeguards against low voltage, overvoltage, over-temperature, overload, and short circuit

• Low idle power draw enhances efficiency

• Dual GFCI protected AC outlets for safety and convenience

• Optional remote control compatibility (Model RC-200 sold separately)

• Safety certified to UL standards and FCC compliant
