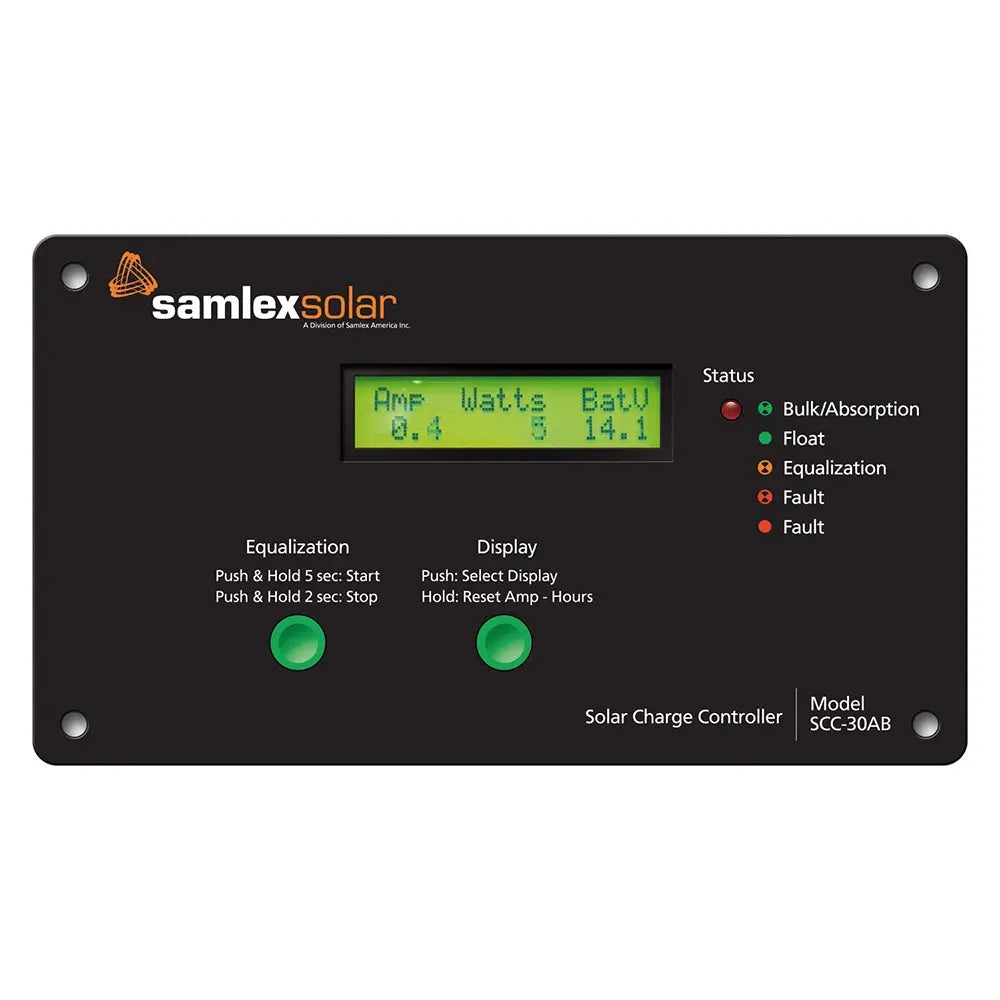

Samlex America SCC-30AB Flush Mount Solar Charge Controller with LCD Display - 30A

Flush Mount Solar Charge Controller w/LCD Display - 30A

The Samlex 30 Amp Charge Controller regulates current and protects your batteries from over-charging. Features of this 4-stage Charger include: LED status indicators, digital LCD monitor and 8 charge settings for most battery types. Charging is further regulated with the optional DC-BTS-A-C Battery Temperature Sensor.

Features:

• Pulse Width Modulated (PWM) charging most efficient and effective way to charge batteries
• 4-stage battery charging: Bulk, Absorption, Float and manual / automatic Equalization
• 8 selectable battery charging profiles for easy setup
• Temperature compensated charging with optional Temperature Sensor
• Digital LCD Monitor for informative display of operational parameters and fault messages

Specifications:

• Input: 12V / 24V
• Amps: 30 Amp
• Weight: 0.8 (lbs)
• Weight: 0.36 (kg)
• Dimensions: 7.5 x 4.25 x 1.5 (in)
• Dimensions: 19.1 x 10.8 x 3.8 (cm)
• Warranty: 5 Year Limited

Applications:

• Recreation vehicles
• Service vehicles
• Boats
• Field work
• Telecommunications
• Mobile offices
• Construction sites

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SCC-30AB is a reliable and efficient 30 Amp flush mount solar charge controller designed to optimize your renewable energy system. Equipped with a digital LCD display, this controller provides real-time monitoring of operational parameters and fault messages, ensuring optimal battery management. Its advanced PWM (Pulse Width Modulated) technology delivers highly efficient charging, making it suitable for various applications including recreational vehicles, boats, service vehicles, and mobile offices. The device incorporates a 4-stage charging process—Bulk, Absorption, Float, and manual or automatic Equalization—allowing for precise battery maintenance and longevity. With 8 selectable charging profiles, configuration is straightforward, accommodating most battery types with ease. An optional temperature sensor enhances charging accuracy by compensating for temperature variations, protecting batteries from over- or under-charging due to environmental changes.

Features:

• Pulse Width Modulated (PWM) charging for high efficiency and effectiveness

• 4-stage battery charging: Bulk, Absorption, Float, and manual/automatic Equalization

• Eight selectable charging profiles for versatile setup options

• Temperature compensated charging with optional temperature sensor

• Digital LCD monitor displays operational parameters and fault messages
