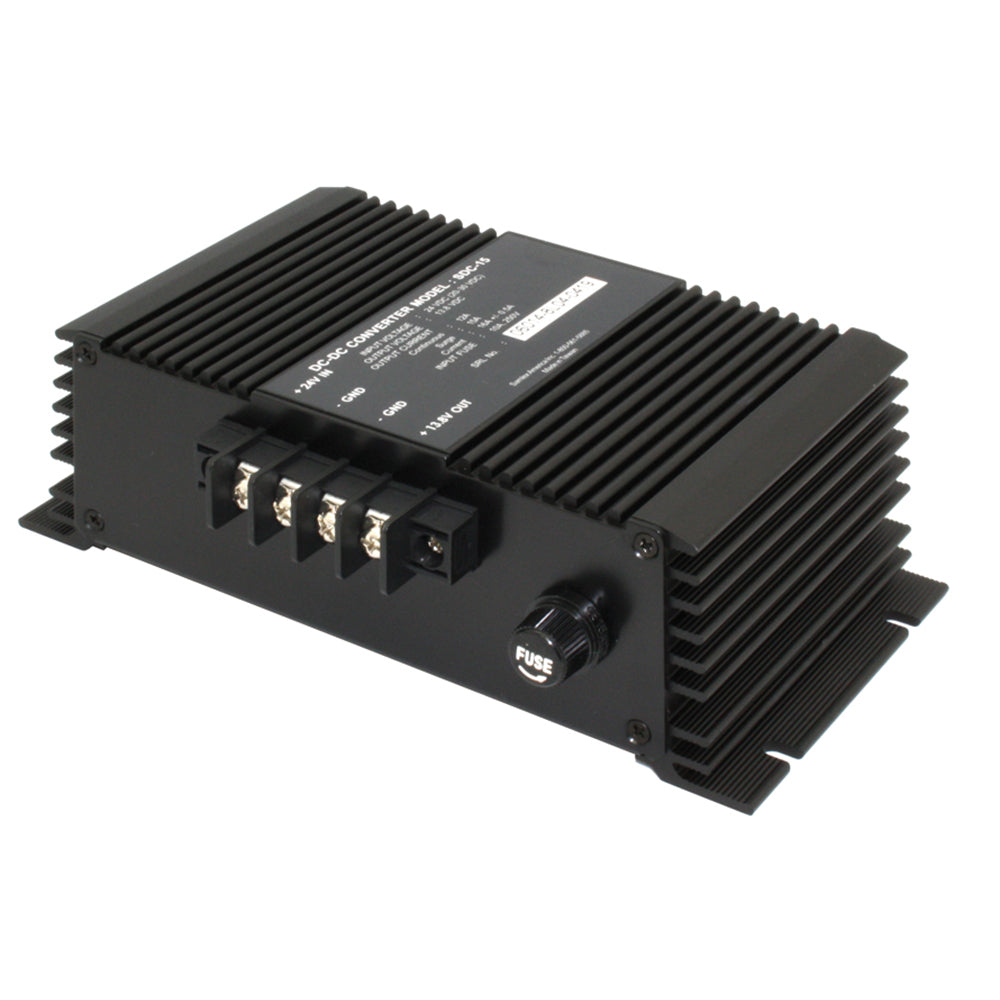

Samlex America SDC-15 12A 24VDC to 12VDC Heavy Duty Step-Down Converter

12A Non-Isolated Step-Down 24VDC-12VDC Converter - Heavy Duty Applications

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 12 Amps. The SDC-15 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-15 DC-DC converter is designed for heavy duty applications.

Features:

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Cycle by cycle current limiting circuit
• Overvoltage protection
• Short circuit protection

Specifications:

• Input: 20-35 VDC
• Output: 13.8 VDC
• Amps: 12 Amps
• Weight: 2 (lbs)
• Weight: 0.9 (kg)
• Dimensions: 7.75 x 5 x 2.5 (in)
• Dimensions: 19.7 x 12.7 x 6.4 (cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SDC-15 is a high-efficiency, non-isolated switch-mode DC-DC converter designed for demanding heavy-duty applications. It converts a nominal 24 VDC input (range 20 VDC to 35 VDC) to a stable 13.8 VDC output at 12 Amps, making it suitable for use in various industrial and vehicle systems. Its advanced design ensures reliable performance in environments such as earth-moving equipment, heavy trucks, buses, marine vehicles, CB radios, and 12-volt lighting and audio systems. The compact, lightweight construction allows flexible mounting options across multiple locations without compromising space or weight constraints.

Features:

• Advanced switchmode design for high efficiency

• Compact and lightweight for versatile installation

• Reverse polarity protection to prevent damage from incorrect connections

• Cycle-by-cycle current limiting circuit for enhanced protection

• Overvoltage and short circuit protection ensures system safety

• Input-side overvoltage and transient protection safeguards against voltage spikes
