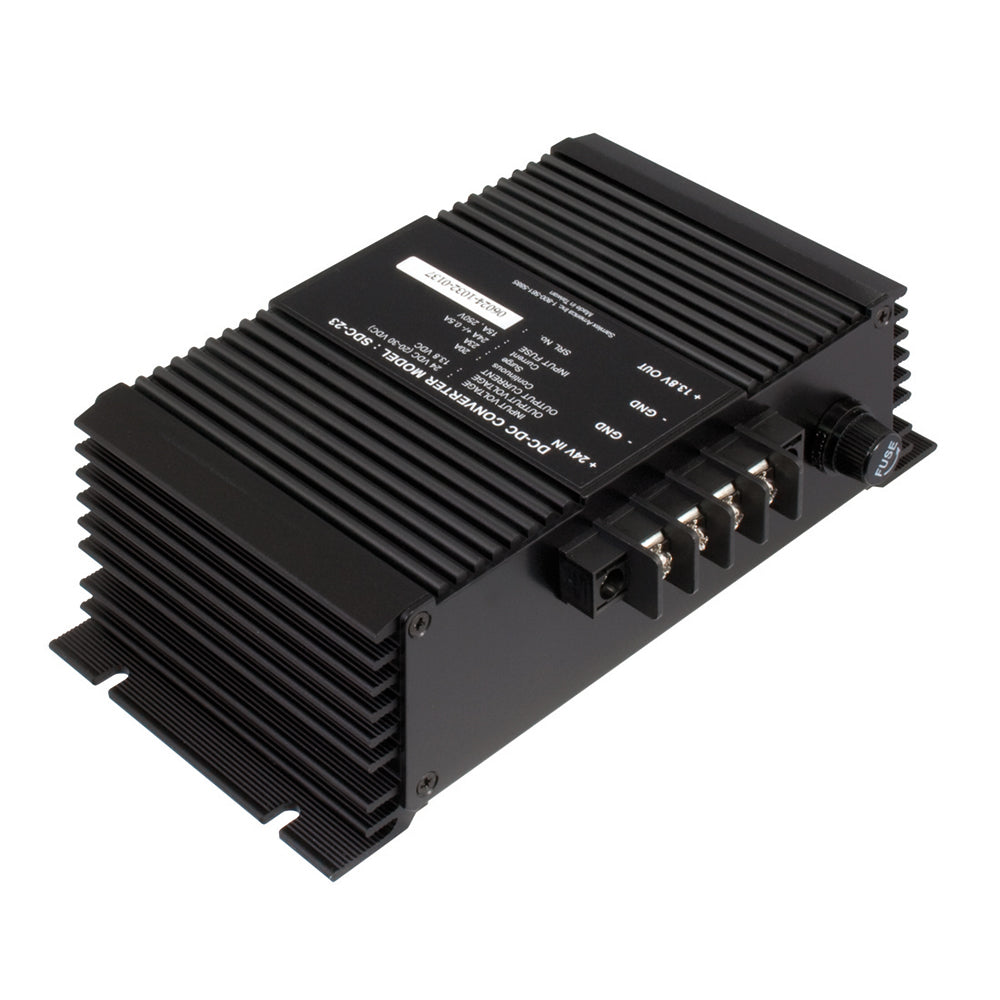

Samlex America SDC-23 20A Non-Isolated 24VDC to 12VDC Step-Down Converter

20A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Current limiting circuit
• Overvoltage crowbar circuit
• Non-Isolated for negative ground system

Specifications:

• Input: 20-30 VDC
• Output: 13.8 VDC
• Amps: 20 Amps
• Weight: 2.2 (lbs)
• Weight: 1 (kg)
• Dimensions: 7.75 x 4.75 x 2.4 (in)
• Dimensions: 19.7 x 12.1 x 6.1 (cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SDC-23 is a high-efficiency switch-mode DC-DC converter designed for heavy-duty applications requiring reliable voltage regulation. It efficiently converts a 20 to 35 VDC input to a stable 13.8 VDC output at up to 20 amps, making it suitable for a variety of demanding environments such as heavy trucks, marine vessels, and industrial equipment. This non-isolated converter is optimized for negative ground systems, providing seamless integration into existing electrical setups without galvanic isolation. Its advanced circuitry includes overvoltage and short-circuit protection, temperature-compensated current limiting, and input/output protections to ensure safe and consistent operation even under challenging conditions. The compact design measures approximately 7.75 inches in length, 4.75 inches in width, and 2.4 inches in height, weighing just over 2 pounds for easy installation in tight spaces. The rugged construction and lightweight profile make it adaptable for mounting in almost any location, whether on vehicles, boats, or industrial machinery. The SDC-23's features extend to reverse polarity protection, an overvoltage crowbar circuit, and transient voltage suppression, ensuring durability and longevity in heavy-duty applications. Whether powering 12-volt lighting, CB radios, or audio systems, this converter provides a reliable power source that maintains precise voltage regulation. A comprehensive manual is available online for installation and troubleshooting guidance, supporting seamless integration into your electrical system. Built with quality and safety in mind, the SDC-23 offers a two-year limited warranty to back its performance and durability.

Features:

• Advanced switchmode design for high efficiency and reliable performance

• Compact and lightweight construction for versatile mounting options

• Reverse polarity protection to safeguard connected equipment

• Overvoltage and transient protection for enhanced durability

• Temperature compensated current limiting for stable operation under load

• Non-isolated design optimized for negative ground systems

• Heavy-duty application suitability for vehicles, marine, and industrial use
