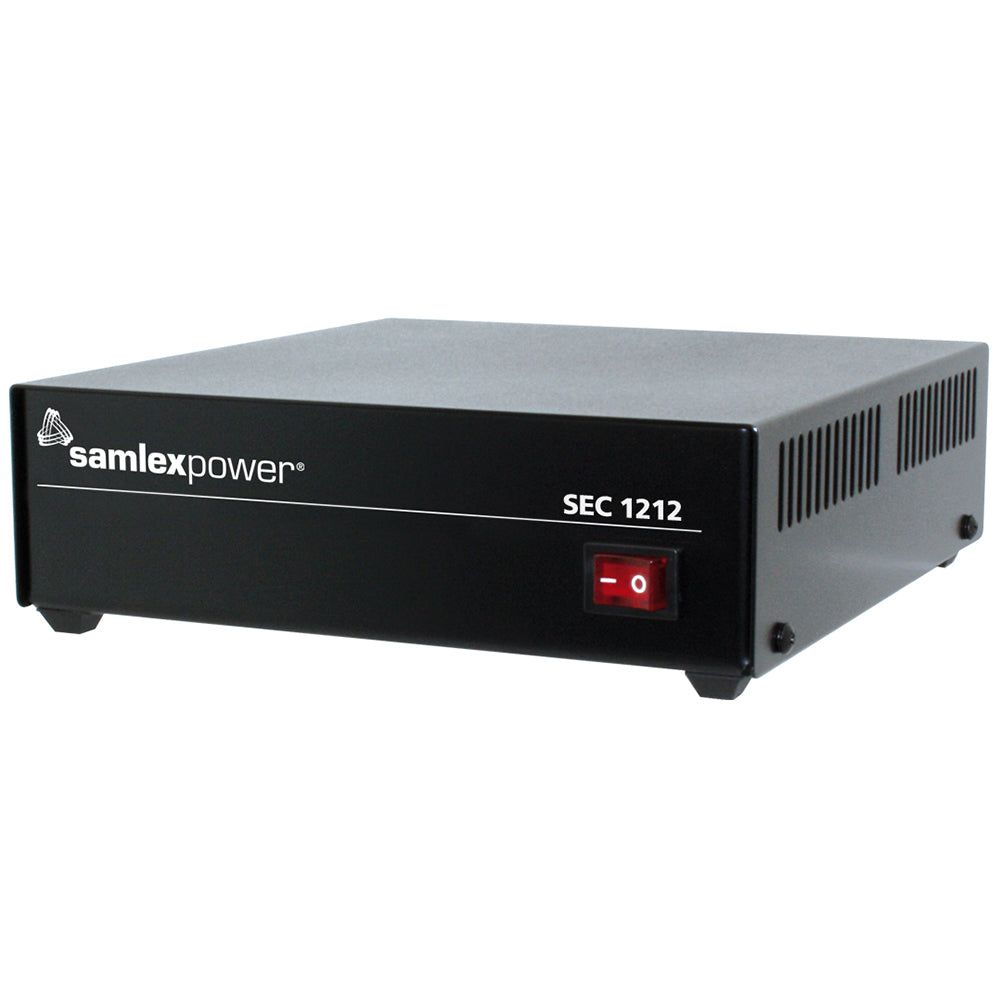

Samlex America SEC-1212 Desktop Switching Power Supply - 120VAC Input, 13.8VDC, 10A

Desktop Switching Power Supply - 120VAC Input, 12V Output, 10 Amp

This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 10 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available). These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.

Features:

• Advanced switch-mode technology
• Reliable power with minimum weight and size
• Circuit innovations minimize output voltage ripple and RFI
• Input voltage can be set at 120VAC or 240VAC (internal jumper)
• UL listed to both USA Canadian safety standards

Specifications:

• Input: 100-130 VAC
• Output: 13.8 VDC
• Amps: 10 Amps
• Fuse: 3 Amps
• Weight: 3.4 (lbs)
• Weight: 1.54 (kg)
• Dimensions: 8.19 x 7.28 x 2.4 (in)
• Dimensions: 20.8 x 18.5 x 6.1 (cm)
• Safety: UL, FCC
• Warranty: 3 Year Limited

Applications:

• Two way radio base stations
• Communications systems
• Security systems
• Test equipment
• Plotters
• GPS receivers
• Automotive Marine displays
• DC computers
• 12 Volt lighting systems
• OEM applications

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SEC-1212 desktop switching power supply is designed to provide a reliable and highly regulated 13.8V DC output at 10 amps, making it ideal for a wide range of professional and hobby applications. With an input voltage of 120VAC, it features advanced switch-mode technology that ensures efficient power conversion while maintaining minimal size and weight. The power supply is UL-60950-1 approved and conforms to FCC Part 15(B), class B standards, guaranteeing safety and electromagnetic compliance for your installations. Its design incorporates sophisticated filtering to suppress RFI and reduce output voltage ripple, ensuring clean power delivery essential for sensitive equipment such as radio base stations, communication systems, and security devices. The unit is equipped with over-current, short-circuit, and over-voltage protections, providing peace of mind during operation. Included is a detachable power cord with a NEMA 5-15P plug for easy setup and connection. The SEC-1212 also features an internal jumper to switch input voltage between 120VAC and 240VAC, offering flexibility for global applications. Its compact dimensions and lightweight build make it suitable for various environments, including automotive, marine displays, and test setups. Backed by a three-year limited warranty, this power supply combines durability, safety, and performance for demanding professional use.

Features:

• Advanced switch-mode technology for high efficiency

• Highly regulated 13.8V DC output at 10 amps

• RFI filtering and ripple minimization for clean power

• Input voltage selectable between 120VAC and 240VAC (internal jumper)

• UL and FCC safety and compliance standards

• Over-current, short-circuit, and over-voltage protection

• Detachable power cord with NEMA 5-15P plug

• Compact, lightweight design for versatile applications
