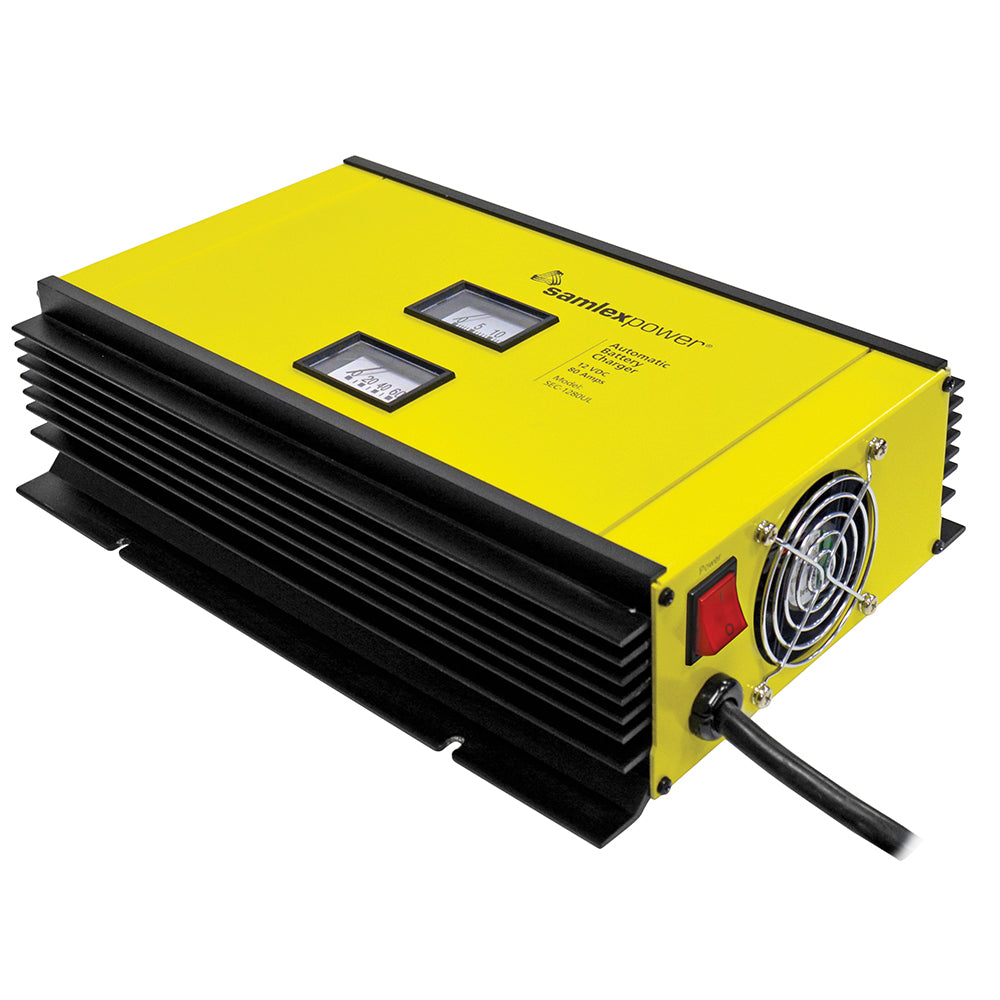

Samlex America SEC-1280UL 80A 12V Battery Charger with 2-Bank 3-Stage Charging and Temp Sensor

80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
• Half Power Mode reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz
• Output: 12 VDC
• Amps: 80
• Remote Control: 900-RC
• Weight: 9 (lbs)
• Weight: 4.1 (kg)
• Dimensions: 15 x 9.61 x 3.82 (in)
• Dimensions: 381 x 244 x 97 (mm)
• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
• Warranty: 2 Year Limited

Applications:

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SEC-1280UL is a high-performance, fully automatic 80 Amp battery charger designed for 12 Volt lead-acid batteries, including Flooded, AGM, and Gel Cell types. This versatile charger features advanced switch mode technology, ensuring high efficiency, lightweight design, and quiet operation. It can simultaneously charge two separate battery banks without the need for isolators, making it ideal for automotive, recreational, marine, and backup power applications. The unit offers configurable input voltage options for 120 or 230 VAC and allows users to switch between 2-stage and 3-stage charging modes via a DIP switch, enabling rapid and safe battery charging whether batteries are standalone or connected to loads like DC UPS systems. The inclusion of a temperature sensor helps optimize charging by preventing under or overcharging due to temperature fluctuations, enhancing battery lifespan and performance. Additionally, the SEC-1280UL can serve as a reliable power supply or DC UPS when used with a battery, providing flexibility for various power management needs. Safety features such as short circuit, overload, reverse battery, and over-temperature protection ensure reliable operation in demanding environments. The charger also includes a voltmeter and ammeter for real-time monitoring and incorporates a fan that cools based on output current, maintaining optimal operating temperatures. Compact and lightweight, this charger is designed to meet safety standards, being UL-listed and FCC EMI compliant. Its durable construction and comprehensive protection features make it suitable for applications in automotive, RV, marine, communication sites, and battery backup systems, providing a dependable solution for maintaining and managing lead-acid batteries effectively.

Features:

• Switch mode technology delivers high efficiency, lightweight, and quiet operation

• Fully automatic 3-stage charging for all lead-acid batteries including Flooded, AGM, and Gel Cell

• Charges two battery banks simultaneously without isolators

• Can be used as a power supply or DC UPS when connected to a battery

• Configurable input voltage options of 120 or 230 VAC for versatile installation

• Selectable 2- or 3-stage charging modes via DIP switch for rapid and safe charging

• Half Power Mode reduces maximum charging current for lower capacity batteries

• Built-in voltmeter and ammeter for monitoring charging performance

• Fan cooling system based on output current for thermal management

• Protection features include short circuit, overload, reverse polarity, and over-temperature safeguards

• Includes temperature sensor to prevent battery damage due to temperature extremes
