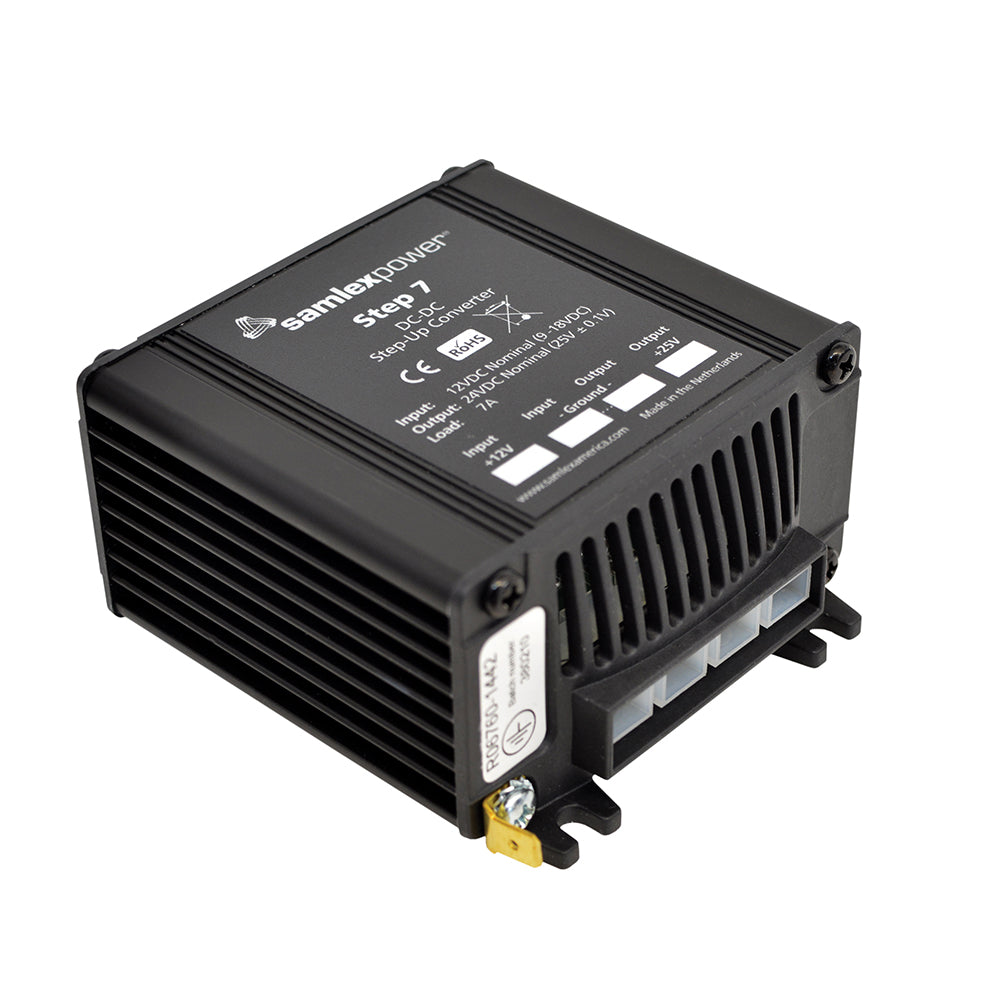

Samlex America Step-Up DC-DC Converter Model STEP7, 7A 9-18V Input to 24V Output

Step-Up DC-DC Converter - 7A - 9-18V Input - 24V Output

Features:

• Step up from 12VDC to 24VDC at 7 Amps DC
• Switch Mode design
• CE approved
• High Efficiency
• Over-current protection
• Over-voltage, Reverse Polarity protection
• 6.3 mm push-on flat pin connectors

Specifications:

• Input: 9-18 VDC
• Output: 24 VDC
• Amps: 7 Amps
• Weight: 0.8 (lbs)
• Weight: 0.36 (kg)
• Dimensions: 5 x 3.5 x 2 (in)
• Dimensions: 12.7 x 8.9 x 5.1 (cm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Industrial
• Commercial
• OEM
• Recreational
• Marine

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America STEP7 is a reliable step-up DC-DC converter designed to convert 9-18V DC input up to a stable 24V DC output at 7 amps. Its switch mode design ensures high efficiency for minimal energy loss, making it suitable for demanding industrial, commercial, OEM, recreational, and marine applications. The converter features over-current protection, over-voltage protection, and reverse polarity protection to safeguard your equipment during operation. Equipped with 6.3 mm push-on flat pin connectors, installation is straightforward and secure. This device is CE approved, adhering to safety and quality standards, and comes with a two-year limited warranty for added peace of mind.
