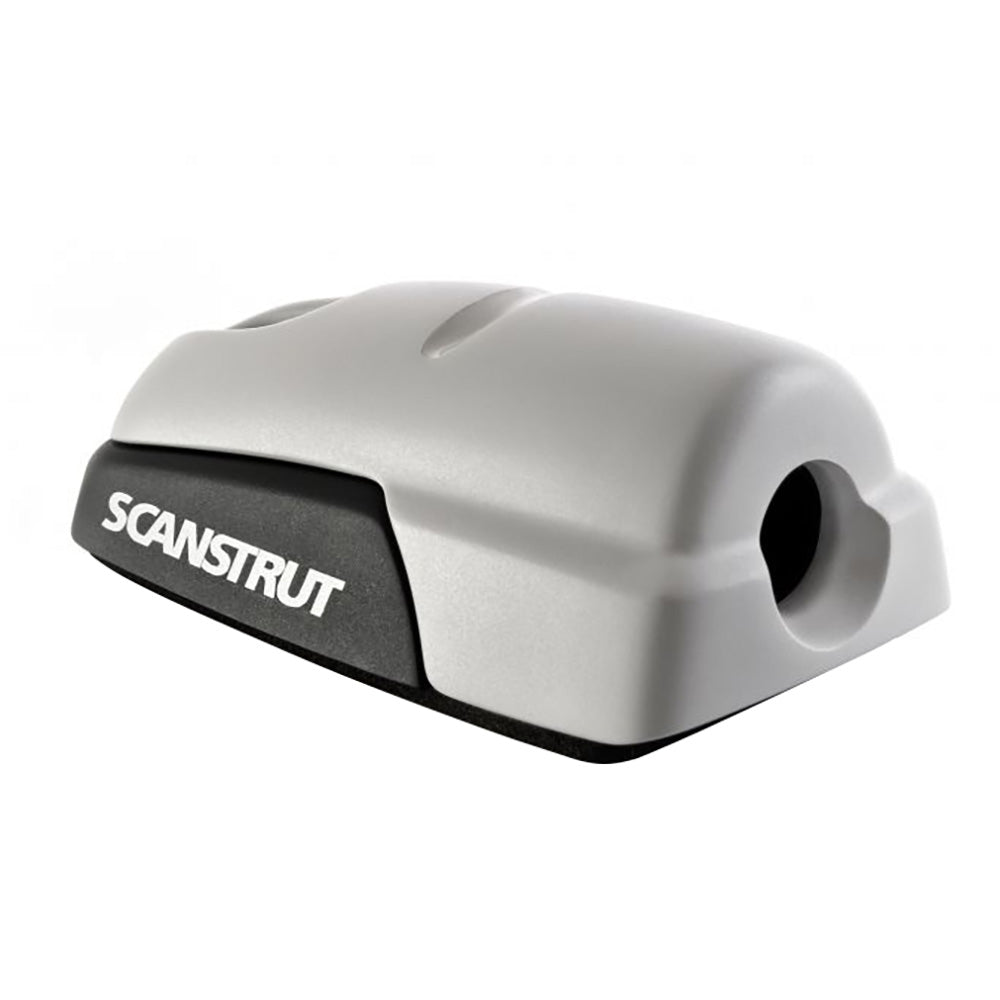

Scanstrut DS-H10 Horizontal Cable Seal - Waterproof Cable Gland for Marine and Solar Applications

DS-H10 Horizontal Cable Seal - Grey

This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables. A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.

Features:

• Watertight installation - 100% waterproof with an IPX68 rating
• Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors - split-seal option does not require connector removal during install.
• The low-profile construction is impact resistant and provides extra protection from water.

Technical Specifications:

• Fits cable size (diameter) - .24" to .39" (6 - 10 mm)
• Height - 1.06" (27 mm)
• Width - 1.75" (44.5 mm)
• Color - Grey
• Orientation - Horizontal
• Material - Stainless Steel

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individual

The Scanstrut DS-H10 Horizontal Cable Seal in Grey offers a reliable solution for waterproof cable routing in marine and outdoor environments. Designed with a tapered gland, this seal creates a watertight connection around cables ranging from 0.24 inches to 0.39 inches in diameter, ensuring protection against water ingress for installations such as solar panels, light bars, antennas, and navigation lights. The inclusion of a closed-cell foam gasket between the housing and the deck provides an additional layer of waterproofing, making the seal suitable for demanding conditions. Its low-profile, impact-resistant construction not only enhances durability but also adds extra protection from water, making it ideal for various marine and outdoor applications. The device is engineered from high-quality stainless steel and features an IPX68 rating, guaranteeing a 100% waterproof fit. The installation process is straightforward, with pre-drilled and blank inner seals included, allowing for quick setup without the need to remove cable connectors thanks to the split-seal option. This feature significantly reduces installation time and minimizes disruption, especially when working with connected cables. The compact design measures approximately 1.06 inches in height and 1.75 inches in width, making it suitable for tight spaces where reliable waterproofing is essential. Perfect for boat owners, solar installers, and outdoor equipment setups, the DS-H10 ensures a secure, waterproof connection that withstands harsh conditions. Each package contains the cable seal, mounting hardware, and an installation manual, providing everything necessary for a professional and efficient installation. Proven to deliver a high level of waterproof protection, the Scanstrut DS-H10 Horizontal Cable Seal is a versatile and durable choice for safeguarding cables in challenging environments.

Features:

• Watertight installation: 100% waterproof with an IPX68 rating

• Easy and reliable installation: includes pre-drilled and blank inner seals

• No need to remove cable connectors: split-seal option for simplified setup

• Low-profile, impact-resistant construction for extra water protection
