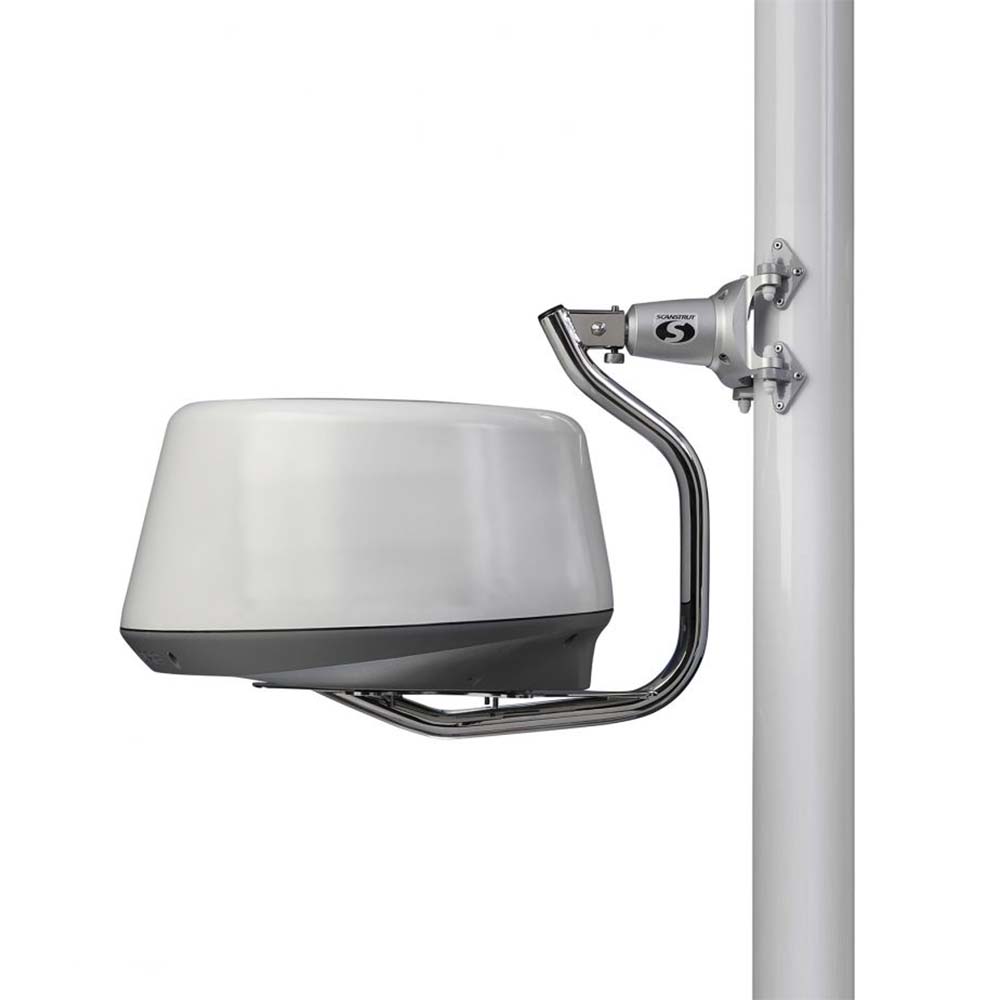

Scanstrut LMM-1 Self Leveling Radar Mount for Garmin, Raymarine, Lowrance, and Simrad

Self Levelling Radar Mount - Mast

Compatible Units:

• Garmin GMR18/GMR18HD/GMR24HD
• Raymarine RD218/RD424
• Lowrance 3G Broadband
• Simrad 3G Broadband
• Simrad DX45/DX60

The Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations
• Sealed system - entirely maintenance-free
• Passive system - no power required
• Reduced weight aloft - complete system weighs only 3.4 kg
• Easy upgrade from fixed mast mount - same mounting footprint as SC20 M92722
• Attached to the mast by four swivel feet - matches the profile of any mast
• 12 point fixing - highest quality Monel rivets
• Compact mount - radar extends only minimum distance from front of mast

Materials:

• Finest quality machined and anodised aluminium mast adapter
• Marine grade 316 stainless steel cradle and base plate

Kit Includes:

• 1 x Levelling mount
• 1 x Mast Adapter
• 1 x Complete fastening pack

The Scanstrut LMM-1 Self Leveling Radar Mount is engineered to maintain the optimal horizontal position of your radar antenna regardless of vessel heel or roll. Designed for compatibility with popular radar units such as Garmin GMR18, GMR18HD, GMR24HD; Raymarine RD218, RD424; Lowrance 3G Broadband; and Simrad 3G Broadband and DX series, this mount ensures consistent target tracking and superior radar imaging. Its hydraulic damping system reacts swiftly to major heel angles while filtering out minor oscillations, providing a stable and reliable radar platform that enhances safety and navigation accuracy on the water. Constructed with marine-grade materials, including anodized aluminum and stainless steel, the mount is built for durability and corrosion resistance in marine environments. The unit features a sealed, maintenance-free hydraulic system that requires no power, making it both efficient and easy to operate. Its lightweight design, weighing only 3.4 kg (7.5 lbs), allows for easy installation and minimizes load aloft. The mount attaches to the mast using four swivel feet, matching the profile of various masts, and utilizes 12-point fixing with high-quality Monel rivets for a secure fit. Its compact profile ensures the radar extends only minimally from the mast, preserving vessel aesthetics and functionality. This upgrade from traditional fixed mounts offers a straightforward installation process with the same mounting footprint as the SC20, model M92722. The kit includes the levelling mount, mast adapter, and a complete fastening pack, providing everything needed for a professional and reliable setup. Built to withstand demanding marine conditions, the Scanstrut LMM-1 Self Leveling Radar Mount is an essential accessory for boaters seeking optimal radar performance through advanced stabilization technology.

Features:

• Hydraulic damping to eliminate minor oscillations

• Sealed system - entirely maintenance-free

• Passive system - no power required

• Reduced weight aloft - complete system weighs only 3.4 kg

• Easy upgrade from fixed mast mount - same mounting footprint as SC20 M92722

• Attached to the mast by four swivel feet - matches the profile of any mast

• 12 point fixing - highest quality Monel rivets

• Compact mount - radar extends only minimum distance from front of mast
