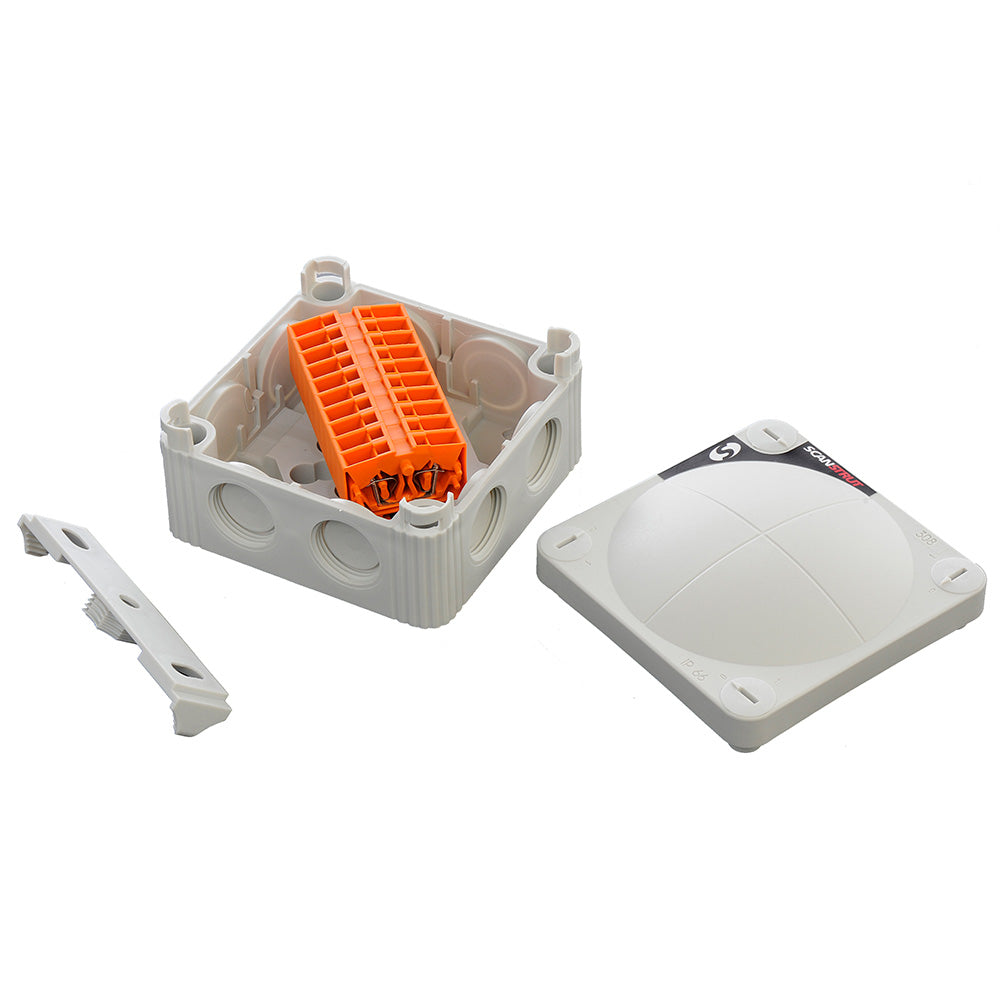

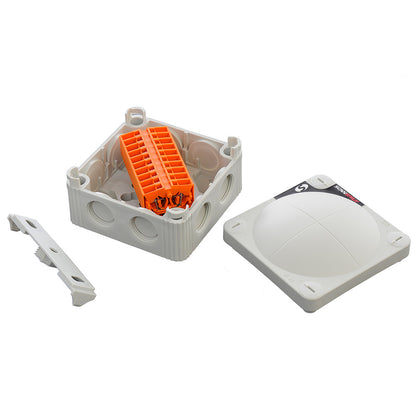

Scanstrut SB-8-10 Marine Grade Waterproof Junction Box with 10 Terminals

Scanstrut SB-8-10 Junction Box

Scanstrut's SB-8-10 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables.

Heavy-duty junction box manufactured from marine grade polypropylene and features 5 screw-down terminals.

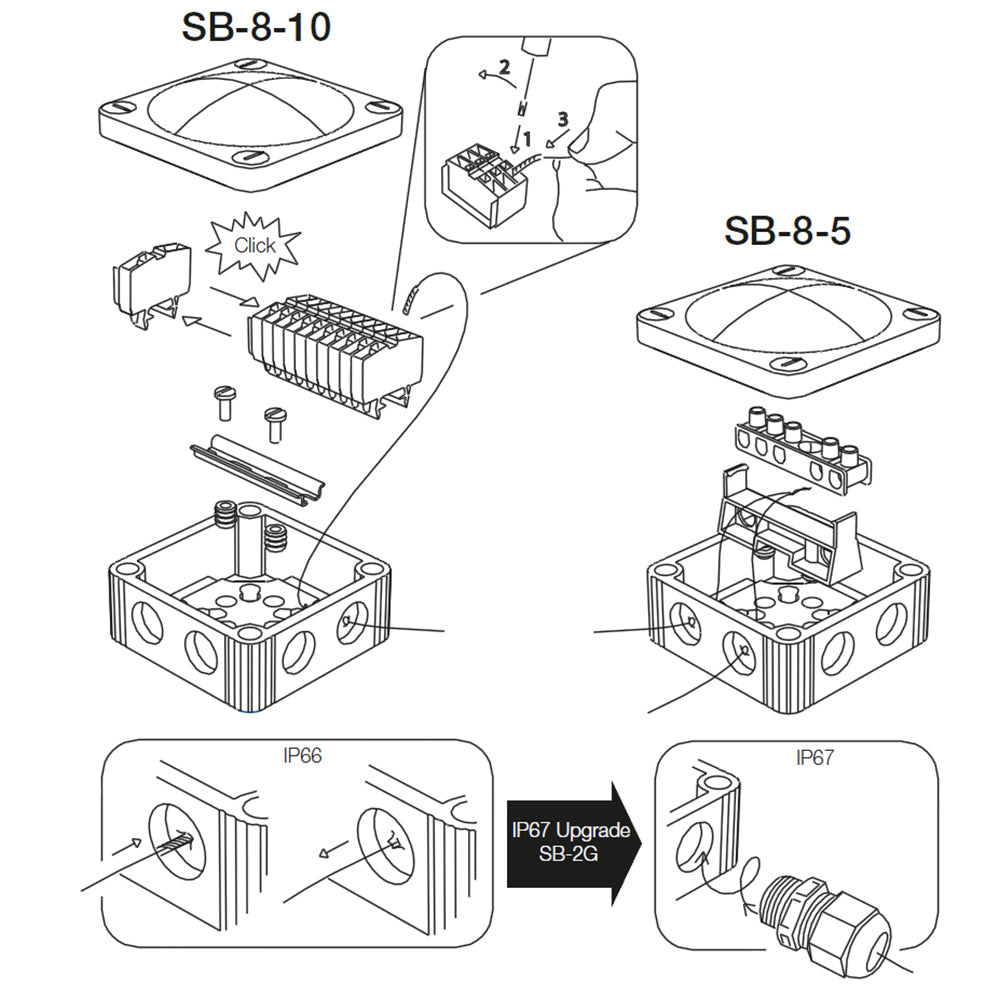

Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together. Supplied with 10 modular terminal blocks. Offering 10 terminations.

Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire. The terminal can be removed for easy fitting of cables.

Features:

• Provides 10 screw-down terminals.
• Capacity for up to eight (8) cables to enter the box.
• Watertight Installation - Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress.
• Upgradable to IP68 with use of SB-2G Cable Seals (sold separately)

Technical Specifications:

• Maximum cable size (diameter) - .50" (12 mm)
• Maximum wire size - 28/0.08 to 12/3-3
• Dimensions (L x W x H) - 3.35" x 3.35" x 2" (85 x 85 x 50 mm)
• Ten (10) terminal block w/600 V rating and 20 A
• Color - Grey
• Material - Marine grade polypropylene

In the Box:

• Junction box w/ten (10) screw-down terminal block
• Mounting hardware
• Installation manual

*Sold as an Individual

The Scanstrut SB-8-10 Junction Box is designed for reliable, waterproof electrical connections in marine environments. Made from durable marine-grade polypropylene, this heavy-duty enclosure provides a secure and watertight solution for wiring installations on boats, yachts, and other watercraft. It features five screw-down terminals that can be individually fitted or combined, allowing for flexible configurations to accommodate up to ten cable connections. The box includes ten modular terminal blocks, each rated at 600 volts and 20 amps, capable of handling wire sizes from 28/0.08 to 12/3-3. This versatility makes it suitable for various electrical setups, ensuring safety and efficiency in demanding marine conditions.

Features:

• Provides 10 screw-down terminals for secure electrical connections

• Capable of accommodating up to 8 cables entering the box

• Watertight installation with an IP66 elastomeric membrane to prevent water ingress

• Upgradeable to IP68 with optional SB-2G cable seals (sold separately)

• Constructed from robust marine-grade polypropylene for durability

• Allows quick push-fit cables secured with sprung leaf retention that prevents wire damage

• Includes mounting hardware and installation manual for easy setup
