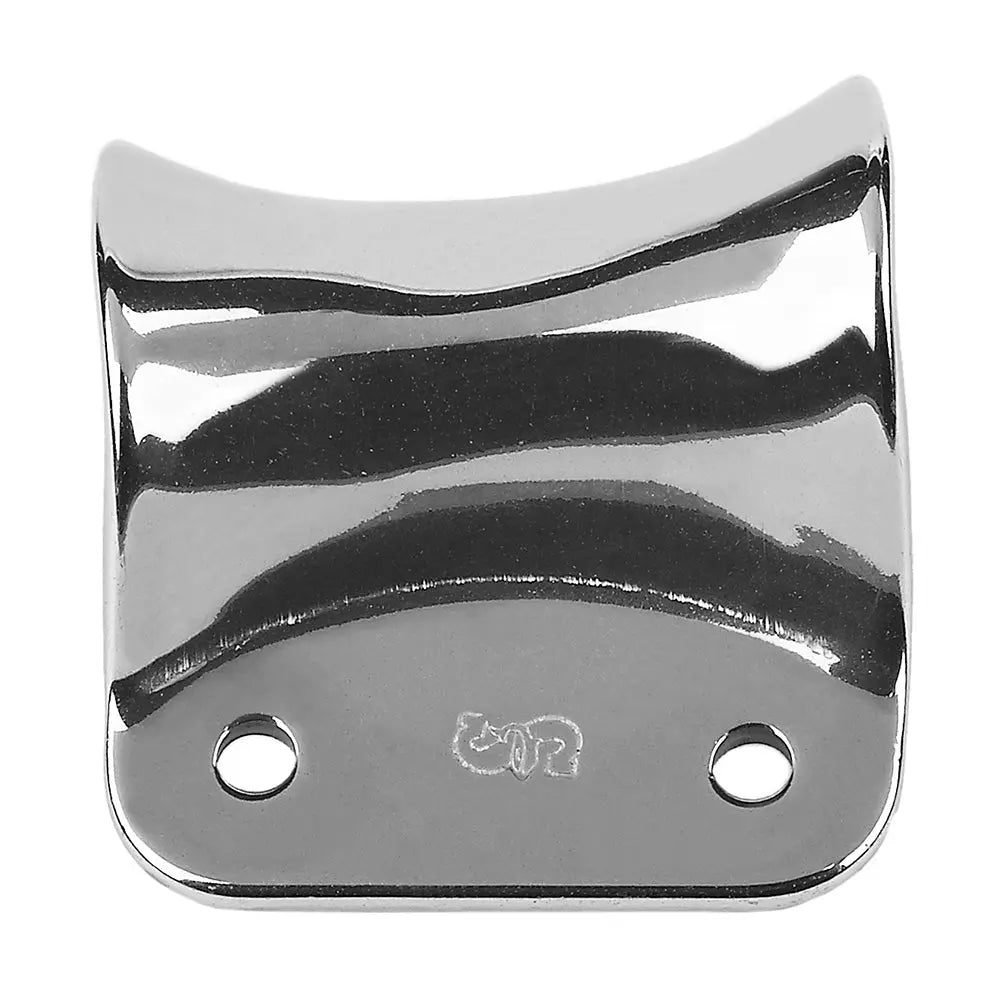

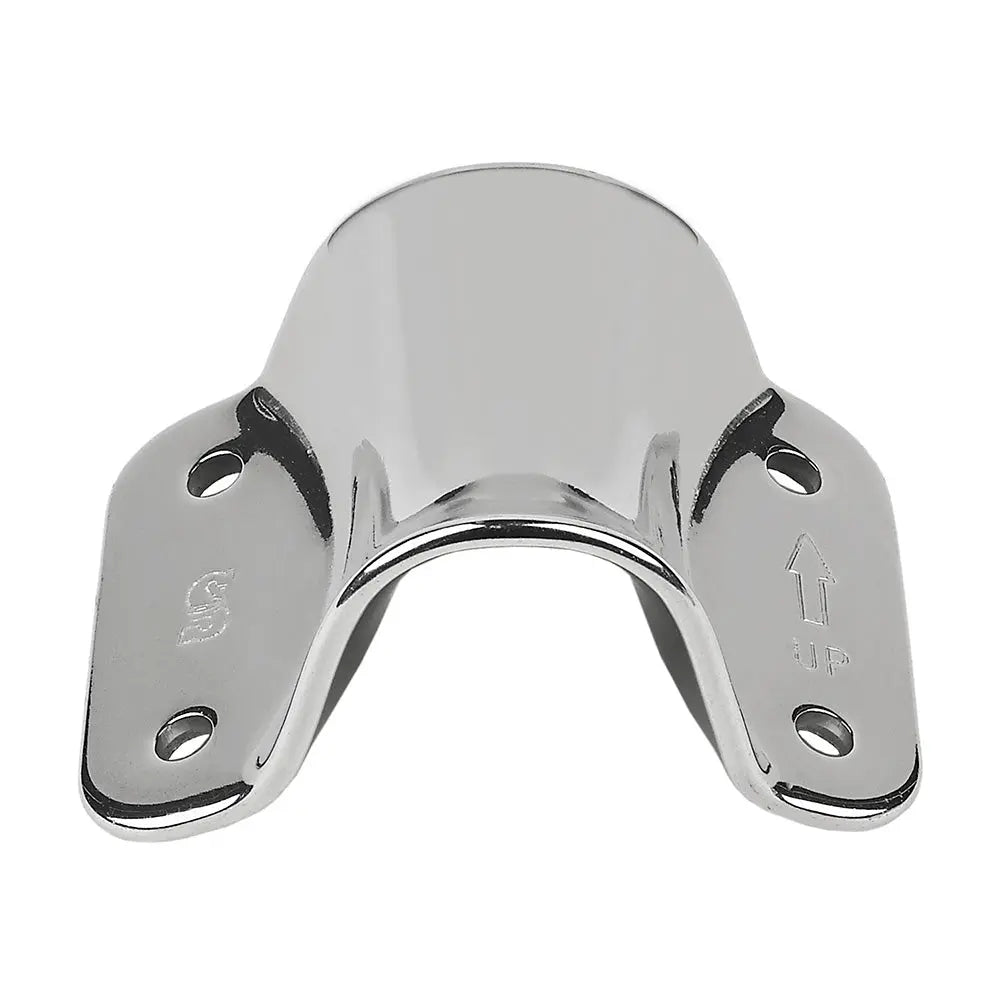

Schaefer Marine Furler Pull Back Bracket and Haylard Restrainer - Large (Part #78-75)

Furler Pull Back Bracket/Haylard Restrainer - Large

Halyard Restrainer mounts directly on the front of the mast below the Genoa Halyard sheave. Restrainer "deflects" halyard eliminating Halyard Wrap.

Halyard Restrainer appropriate for boats from 27' - 53'. Eliminates possibility of halyard wrap with furling systems when properly installed. For halyards up to 5/8" (16mm). Uses (4) #10 RH Fasteners. L = 2" (51mm), Width = 2-3/4" (70mm), SWL = 2000 lbs (907 kg), Weight 4 oz (114 grams)

The Schaefer Marine Furler Pull Back Bracket and Haylard Restrainer is designed for boats ranging from 27 to 53 feet, providing a reliable solution to prevent halyard wrap during furling operations. This large-sized restrainer mounts directly on the front of the mast below the Genoa halyard sheave, effectively deflecting the halyard to eliminate wrap issues and ensuring smooth furling performance. Constructed to accommodate halyards up to 5/8 inch (16mm) in diameter, it features a sturdy design capable of withstanding a static working load of 2000 lbs (907 kg).

Installation is straightforward with four #10 RH fasteners, making it suitable for a variety of sailing vessels. The unit measures approximately 2 inches in length and 2 3/4 inches in width, with a weight of just 4 ounces (114 grams), ensuring minimal added weight aloft. This component is essential for sailors seeking to enhance furling reliability and reduce maintenance caused by halyard wrap. Its durable construction and precise design make it a valuable addition to any sailboat's rigging system, especially when using furling systems that benefit from a dedicated halyard restrainer.

Designed by Schaefer Marine, this part combines quality and functionality, helping sailors maintain a hassle-free sailing experience. Whether upgrading existing gear or outfitting a new vessel, the Furler Pull Back Bracket and Haylard Restrainer offers a practical and effective solution for halyard management on mid-sized to larger sailboats.

Features:

• Mounts directly on the front of the mast below the Genoa halyard sheave

• Deflects halyard to prevent wrap during furling operations

• Suitable for boats from 27 to 53 feet in length

• Compatible with halyards up to 5/8 inch (16mm)

• Constructed with durable materials to withstand a static load of 2000 lbs (907 kg)

• Uses four #10 RH fasteners for secure installation

• Lightweight design at only 4 ounces (114 grams)
