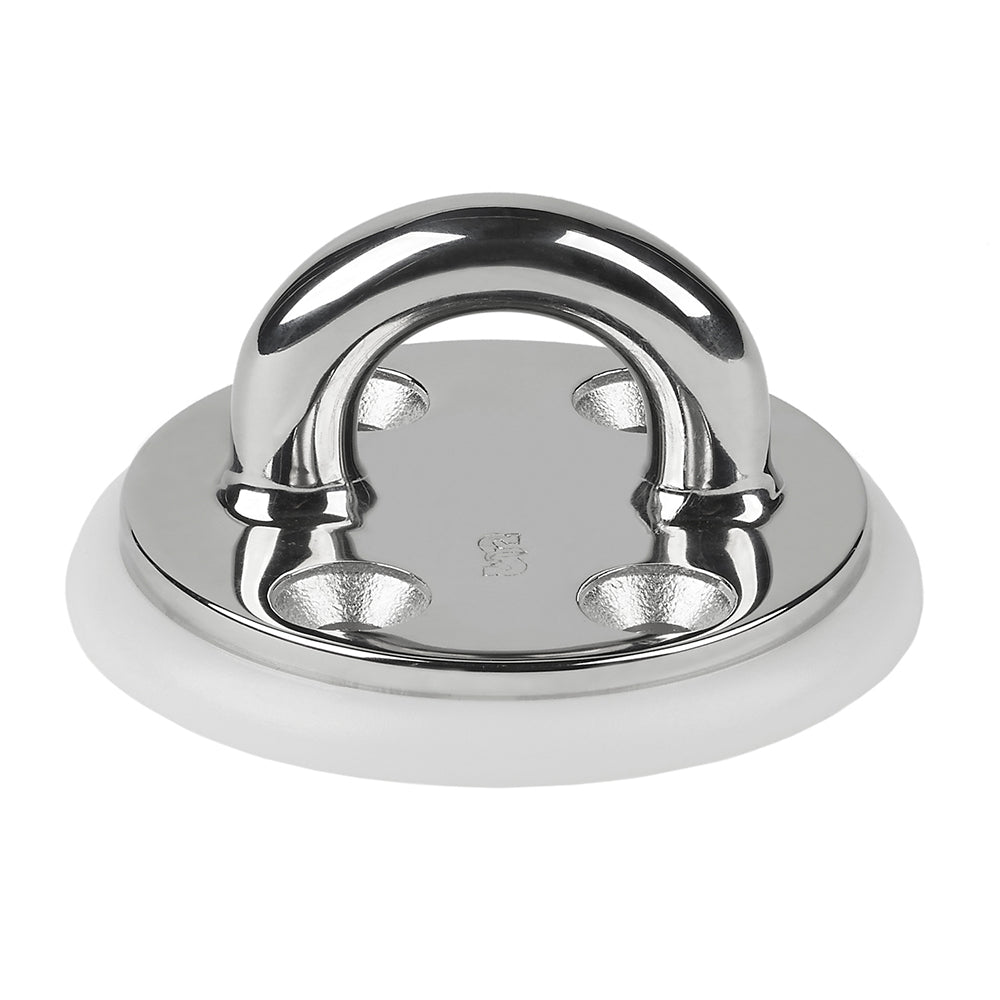

Schaefer Marine Investment Cast Pad Eye with 2-1/2-Inch OD Base, Part Number 78-07

Investment Cast Pad Eye - 2-1/2" OD Base

316 Stainless Steel includes delrin(tm) base. Order Backing Plate 97-53 separately.

Specifications:

• Eye Width 1" (25 mm)
• Eye Height 13/16" (21 mm)
• Eye Stock 3/8" (10 mm)
• Length 2-1/2" (64 mm)
• Width 2-1/2" (64 mm)
• Fasteners (4), 1/4" FH (6 mm)
• C/C A 1" (25 mm)
• C/C B 1-1/2" (38 mm)
• SWL 4000 lbs. (1800 kg)

The Schaefer Marine Investment Cast Pad Eye with a 2-1/2-inch outer diameter base offers a durable and reliable anchor point for marine and industrial applications. Crafted from high-quality 316 stainless steel, this pad eye provides excellent corrosion resistance and strength in demanding environments. The Delrin™ base ensures a secure fit and ease of installation, making it suitable for use on boats, docks, or other heavy-duty setups. This pad eye features a 1-inch wide eye opening and an eye height of 13/16 inches, providing ample space for various rigging and attachment needs. The eye stock measures 3/8 inches thick, ensuring durability and stability during use. Its overall length and width are both 2-1/2 inches, with four 1/4-inch (6 mm) fastener holes spaced with a center-to-center distance of 1 inch and 1-1/2 inches. With a Working Load Limit (WLL) of 4,000 pounds, this pad eye is suitable for securing heavy loads safely. It is designed for straightforward installation with sturdy fasteners, and the included specifications make it easy to plan your setup. Whether for marine rigging, cargo securing, or industrial applications, the Schaefer Marine investment cast pad eye offers a robust and corrosion-resistant solution that ensures safety and longevity in tough conditions. Please note that the backing plate is sold separately, allowing customization based on your specific requirements. This product is not oversized and does not require truck freight for shipping, making it a convenient choice for various projects.

Features:

• 316 stainless steel construction offers excellent corrosion resistance and durability

• Delrin™ base provides a secure and easy-to-install mounting platform

• Heavy-duty design with a working load limit of 4,000 lbs.

• Large 2-1/2-inch OD base with four 1/4-inch fastener holes for secure attachment

• Compact eye opening with a width of 1 inch and height of 13/16 inches for versatile rigging options
