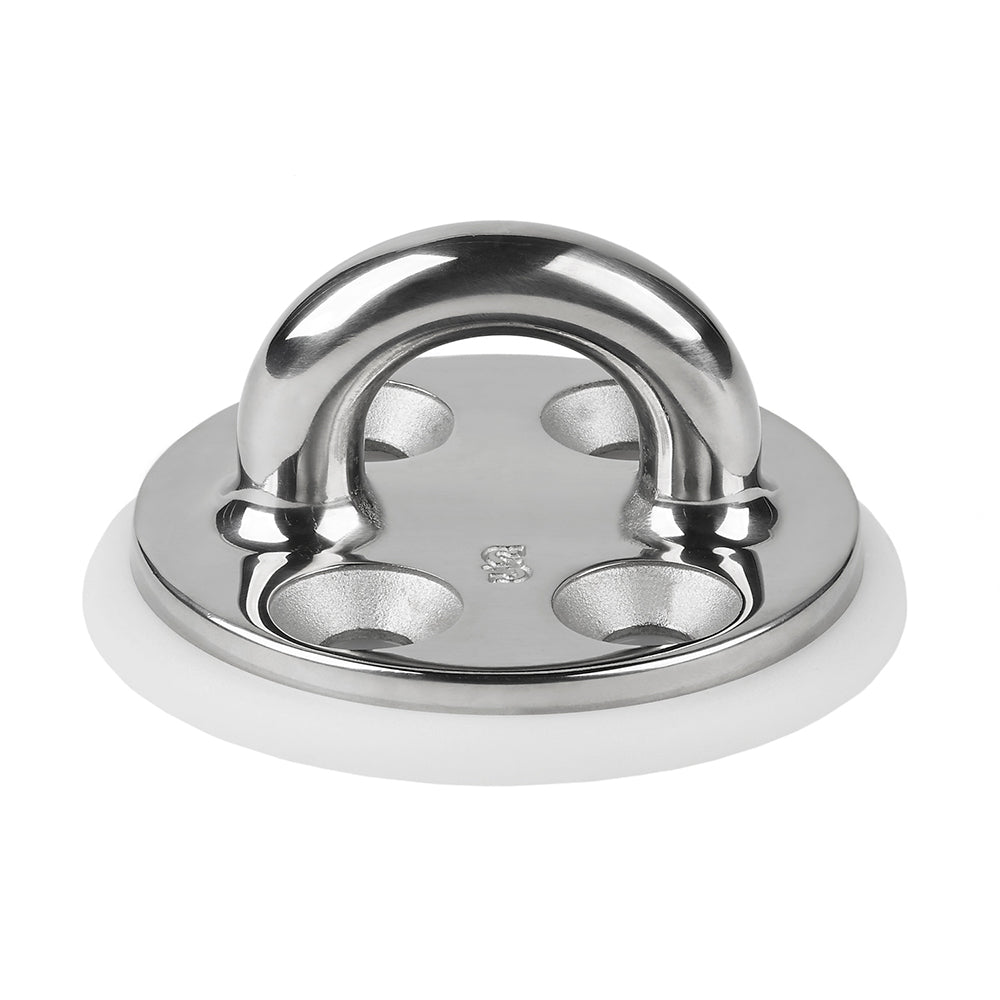

Schaefer Marine Investment Cast Pad Eye with 3 Inch OD Base – Heavy Duty Stainless Steel Anchor Point

Investment Cast Pad Eye - 3" OD Base

316 Stainless Steel includes delrin(tm) base. Order Backing Plate 97-54 separately.

Specifications:

• Eye Width 1-1/8" (29 mm)
• Eye Height 7/8" (22 mm)
• Eye Stock 1/2" (13 mm)
• Length 3" (76 mm)
• Width 3" (76 mm)
• Fasteners (4), 3/8" FH (10 mm)
• C/C A 1-1/8" (29 mm)
• C/C B 1-11/16" (43 mm)
• SWL 8500 lbs. (3800 kg)

The Schaefer Marine Investment Cast Pad Eye with a 3-inch outer diameter base is a robust anchoring component designed for demanding marine and industrial applications. Crafted from high-quality 316 stainless steel, this pad eye offers exceptional corrosion resistance and durability in harsh environments. The inclusion of a Delrin™ base provides added strength and stability, ensuring reliable performance over time. For optimal attachment, a backing plate (part number 97-54) is recommended and sold separately to enhance load distribution and secure fastening. The eye features a width of 1-1/8 inches and a height of 7/8 inches, with an eye stock thickness of 1/2 inch, providing sufficient capacity for various rigging needs. Overall, it measures approximately 3 inches in length and width, making it a versatile and compact choice for securing lines or hardware. The pad eye is designed to accommodate four fasteners, each 3/8 inch in diameter, with a center-to-center distance of 1-1/8 inches and 1-11/16 inches respectively, facilitating easy installation. With a Working Load Limit of 8,500 pounds, this pad eye supports heavy-duty lifting and anchoring operations, ensuring safety and reliability. The unit is not classified as oversized or truck freight, simplifying shipping and handling. Whether used on boats, docks, or industrial structures, the Schaefer Marine investment cast pad eye provides a dependable and corrosion-resistant solution for your securing needs.

Features:

• Heavy-duty 316 stainless steel construction for corrosion resistance

• Includes Delrin™ base for added stability and strength

• Designed for demanding marine and industrial use

• Secure attachment with four 3/8 inch fasteners

• Load capacity of 8,500 pounds for heavy-duty applications
