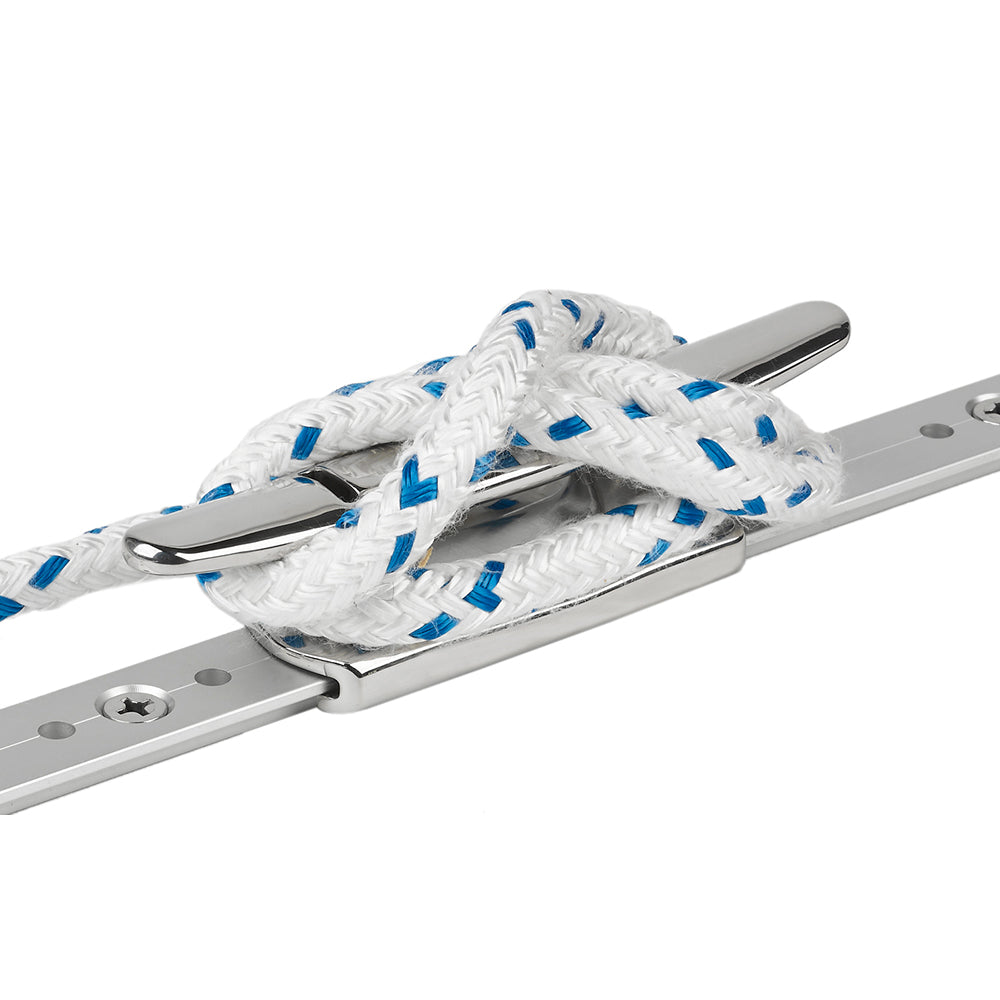

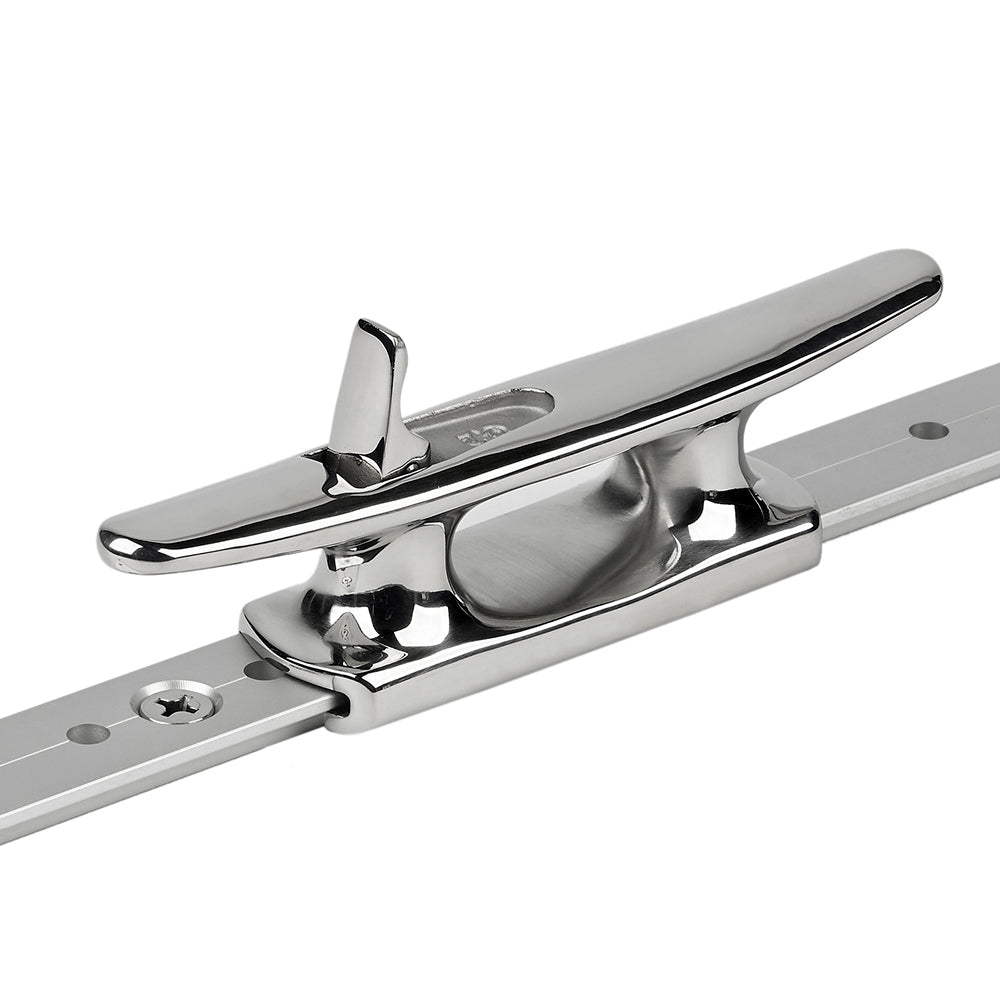

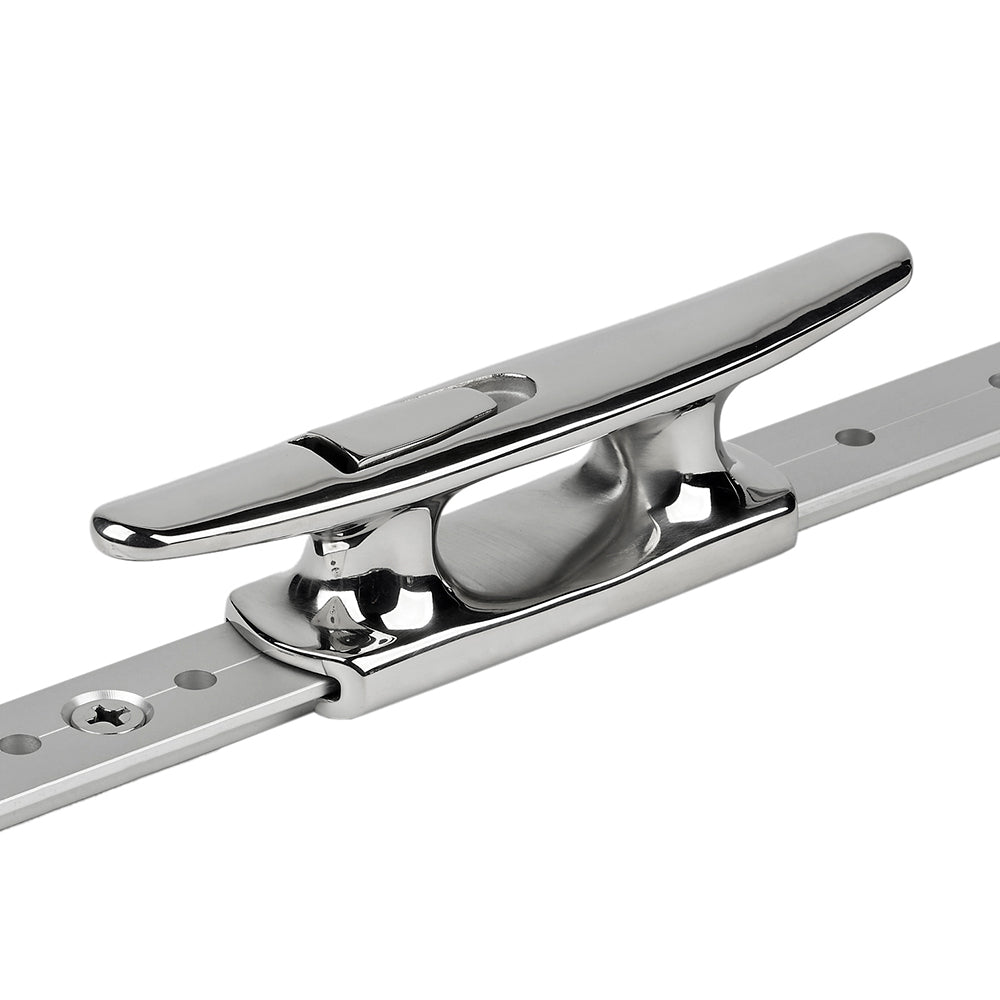

Schaefer Marine Mid-Rail Chock and Cleat Stainless Steel - 1-1/4 inch

Mid-Rail Chock/Cleat Stainless Steel - 1-1/4"

Chock cleats will fit Schaefer T-Track measuring 1-1/4" wide, 7/16" overall height, 3/16" "T" thickness and a base width of 11/16". They will not fit earlier versions of T-Track or some competitors models.

Specifications:

• Length 7-1/2" (190 mm)
• ID 1-3/4" (45 mm)
• Line Size 5/8" (16 mm)
• Track 1-1/4" x 3/16" (31 mm x 4.6 mm)
• Pin. Size .355
• SWL 4500 lbs. (2045 kg)
• Weight 1.5 lbs. (.68 kg)

The Schaefer Marine Mid-Rail Chock and Cleat is a durable stainless steel component designed for secure mooring and sailing applications. Measuring approximately 7.5 inches in length, this chock and cleat fits Schaefer T-Track systems with a width of 1-1/4 inches and a track height of 3/16 inches, making it ideal for various marine setups. Its robust construction ensures reliable performance under heavy loads, with a Safe Working Load of up to 4,500 pounds, providing peace of mind during demanding maritime operations. The stainless steel material offers excellent corrosion resistance, making it suitable for harsh marine environments, and its compact design allows for versatile installation where space is limited.

Features:

• Fits Schaefer T-Track measuring 1-1/4 inches wide

• Constructed from corrosion-resistant stainless steel

• Length: approximately 7-1/2 inches

• Safe Working Load of 4,500 pounds

• Designed for secure mooring and sailing applications

• Compact size with a base width of 11/16 inches

• Ideal for demanding marine environments
