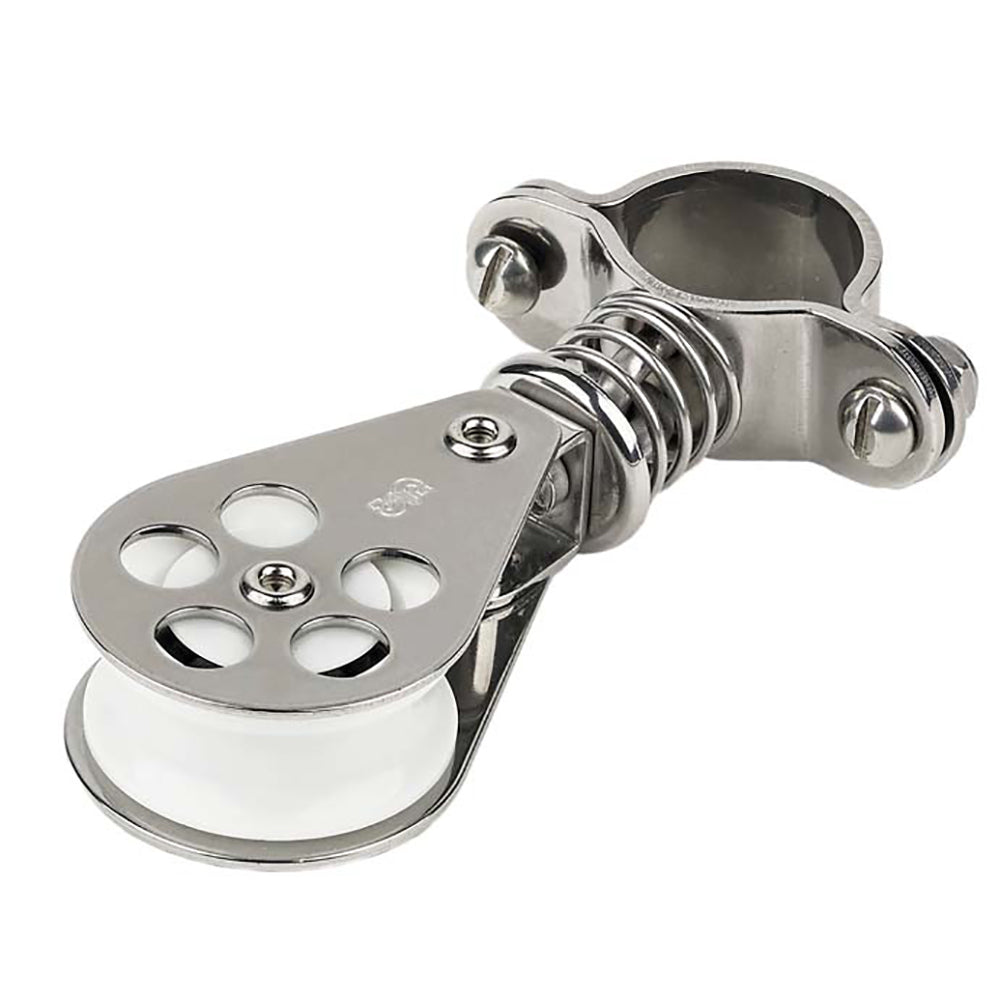

Schaefer Marine Pulpit Furling Lead Spring Loaded Block with 1-Inch Ball Bearing

Pulpit Furling Lead Spring Loaded Block - 1" Ball Bearing

The Stainless Steel spring guarantees maximum support for the block. Delrin ball bearing sheave ensures low-friction lead for your furling line.

Specifications:

• 1" (25mm) stanchions
• Length 4-11/32" (111mm)
• Width 1-9/16"(40mm)
• Safe Working Load 1000 lbs (450kg)
• Weight 4 oz (113g)
• Max line size 7/16" (11mm)
• Sheave diameter 1-7/16" (37mm)

The Schaefer Marine Pulpit Furling Lead Spring Loaded Block with 1-inch ball bearing is engineered for reliable support and smooth operation in sailing applications. Featuring a stainless steel spring, this block offers maximum support for your furling line, ensuring durability and consistent performance under load. The Delrin ball bearing sheave minimizes friction, allowing your furling line to glide effortlessly, which enhances ease of handling and reduces wear over time.

Designed for use with 1-inch (25mm) stanchions, this block measures approximately 4-3/8 inches long and 1-9/16 inches wide, making it suitable for a variety of sailboat configurations. It has a safe working load of 1,000 pounds (450kg), providing a robust solution for demanding sailing conditions. The weight of this block is just 4 ounces (113 grams), making it lightweight and easy to handle during installation and maintenance. The sheave has a diameter of about 1-7/16 inches (37mm), and it supports line sizes up to 7/16 inches (11mm), accommodating most furling lines used on cruising and racing vessels.

Constructed with high-quality materials, the Schaefer Marine Pulpit Furling Lead Block ensures long-lasting performance and resistance to harsh marine environments. Its spring-loaded design provides additional support and flexibility, making it an excellent choice for sailors seeking a dependable and smooth furling system component. Whether upgrading existing equipment or installing new furling systems, this block offers a reliable solution backed by Schaefer Marine's reputation for quality and innovation.

Features:

• Spring-loaded design with stainless steel spring for maximum support

• Delrin ball bearing sheave for low-friction line lead

• Supports 1-inch (25mm) stanchions

• Approximate length of 4-3/8 inches (111mm)

• Weight: 4 ounces (113 grams)

• Maximum line size of 7/16 inches (11mm)

• Sheave diameter: 1-7/16 inches (37mm)

• Safe working load of 1,000 pounds (450kg)
