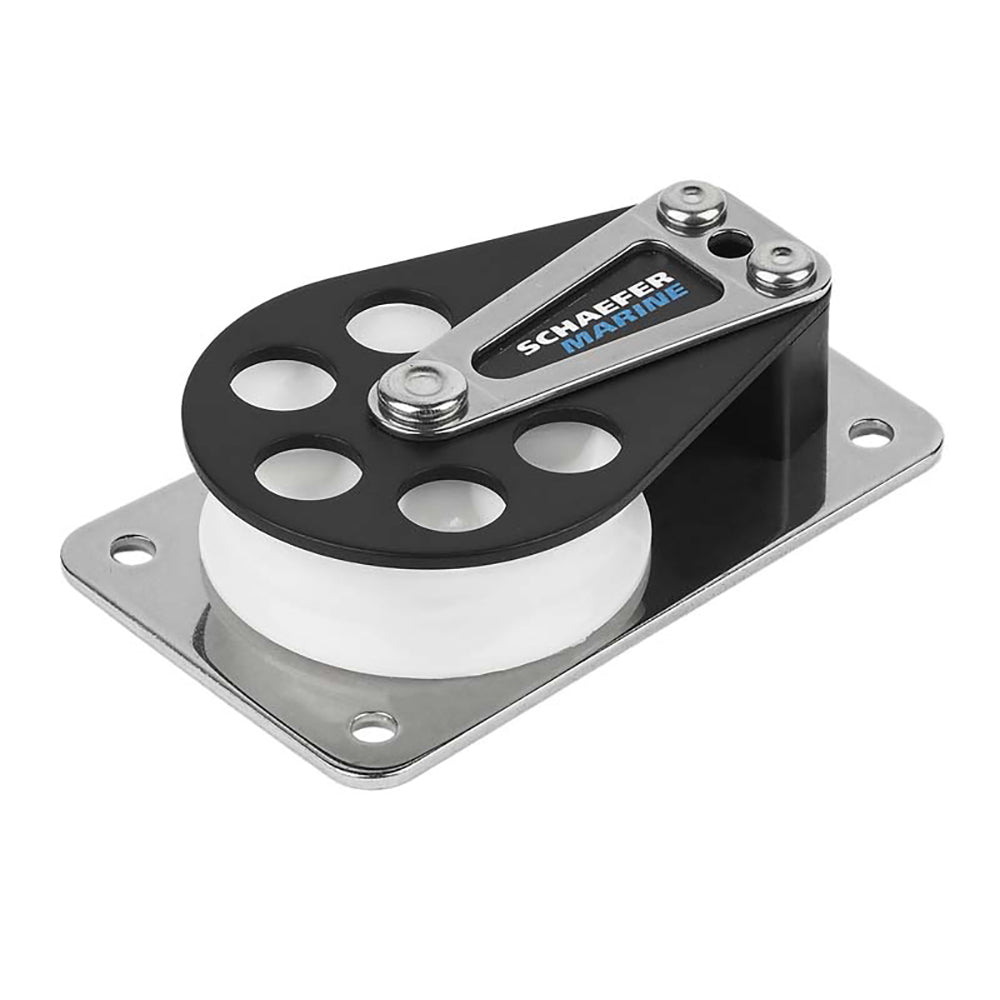

Schaefer Marine Series 5 Flat Base Aluminum Cheek with Delrin Sheave - Part 504-11

Series 5 Flat Base/Alum Cheek/Delrin Sheave

Delrin sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

• Sheave Diameter 2" (51 mm)
• Max. Line 7/16" (11 mm)
• Length 3-5/8" (92 mm)
• Width 2-7/32" (57 mm)
• Height 7/8" (22 mm)
• Fasteners (4) #10 RH (5 mm)
• C/C 3" (76 mm)
• SWL 1750 lbs. (795 kg)
• Weight 5.9 oz. (167g)
• Max. Line 7/16" (11mm)

The Schaefer Marine Series 5 Flat Base Aluminum Cheek with Delrin Sheave is designed for reliable performance in sailing and marine applications. Featuring a durable Delrin sheave, it ensures smooth operation and can handle high safe working loads, making it ideal for demanding rigging setups. The stainless steel base distributes loads over a large surface area, enhancing stability and reducing stress on attachment points. This combination of materials offers corrosion resistance and longevity in harsh marine environments. Its compact design makes it suitable for various rigging configurations, providing both strength and ease of use. Whether used on sailboats or other marine vessels, this sheave delivers dependable performance for line control and handling. The unit is engineered to accommodate lines up to 7/16 inches in diameter, with a maximum working load of 1,750 pounds, ensuring safety and durability during operation. Its lightweight construction allows for easy installation and handling without compromising strength or safety. The Schaefer Series 5 Flat Base Aluminum Cheek with Delrin Sheave is an essential component for boaters seeking a high-quality, corrosion-resistant sheave that balances performance with ease of maintenance.

Features:

• Delrin sheave for smooth operation and high safe working load

• Stainless steel base distributes loads over a large surface area

• Suitable for lines up to 7/16 inches (11 mm) in diameter

• Maximum working load of 1,750 pounds (795 kg)

• Compact design measuring approximately 3-5/8 inches in length

• Lightweight at 5.9 ounces (167 grams) for easy handling and installation

• Corrosion-resistant materials ideal for marine environments

• Four fasteners (size #10 RH, 5 mm) for secure attachment

• C/C distance of 3 inches (76 mm) for versatile mounting options
