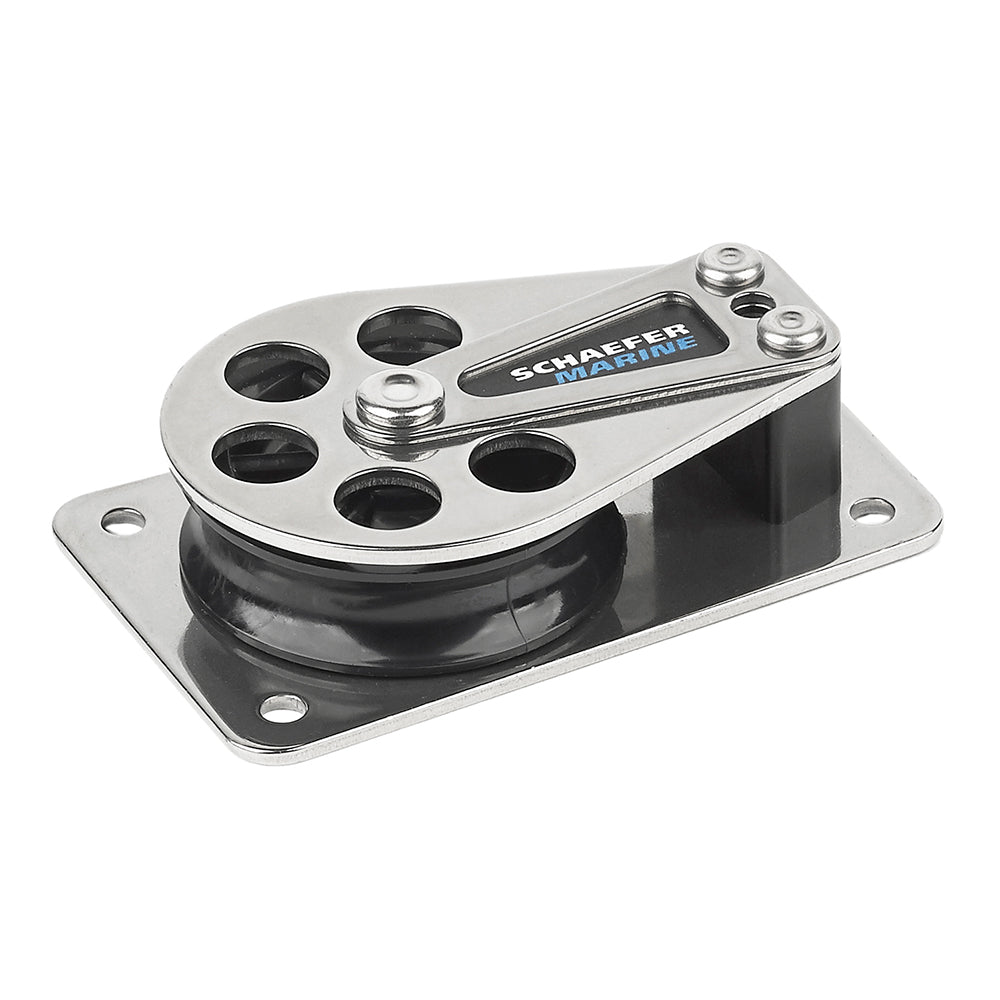

Schaefer Marine Series 5 Flat Base Cheek Block with Stainless Steel Cheeks

Series 5 Flat Base Cheek Block - Stainless Steel Cheeks

Series 5 Cheek Block with Stainless Steel cheek. Delrin sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

• Sheave Diameter 2" (51 mm)
• Max. Line 7/16" (11 mm)
• Length 3-5/8" (92 mm)
• Width 2-7/32" (57 mm)
• Height 7/8" (22 mm)
• Fasteners (4) #10 - RH (5 mm)
• C/C 3" (76 mm)
• SWL 1750 lbs. (795 kg)
• Weight 6.9 oz. (196 g)
• Max Line 7/16" (11mm)

The Schaefer Marine Series 5 Flat Base Cheek Block with Stainless Steel Cheeks offers a durable and reliable solution for marine and industrial rigging applications. Constructed with a stainless steel base, it effectively distributes loads over a large surface area, ensuring stability and safety during heavy-duty operations. The cheek block features a high-quality Delrin sheave that provides smooth line movement and minimizes wear, making it suitable for demanding environments. With a maximum working load of 1,750 lbs., this cheek block is engineered to handle significant loads while maintaining operational efficiency and safety. Its compact dimensions make it versatile for various rigging configurations, and it is designed for easy installation with four #10 RH fasteners, spaced 3 inches apart center to center. This cheek block is ideal for use with lines up to 7/16 inch in diameter, providing a robust and dependable component for your marine or industrial setup.

Features:

• Stainless Steel Base: Distributes load evenly for enhanced stability and durability

• Delrin Sheave: Ensures smooth operation and reduces line wear

• High Safe Working Load: Capable of handling up to 1,750 lbs.

• Compact Design: Measures approximately 3-5/8 inches in length and 2-7/32 inches in width

• Easy Installation: Comes with four #10 RH fasteners for secure mounting
