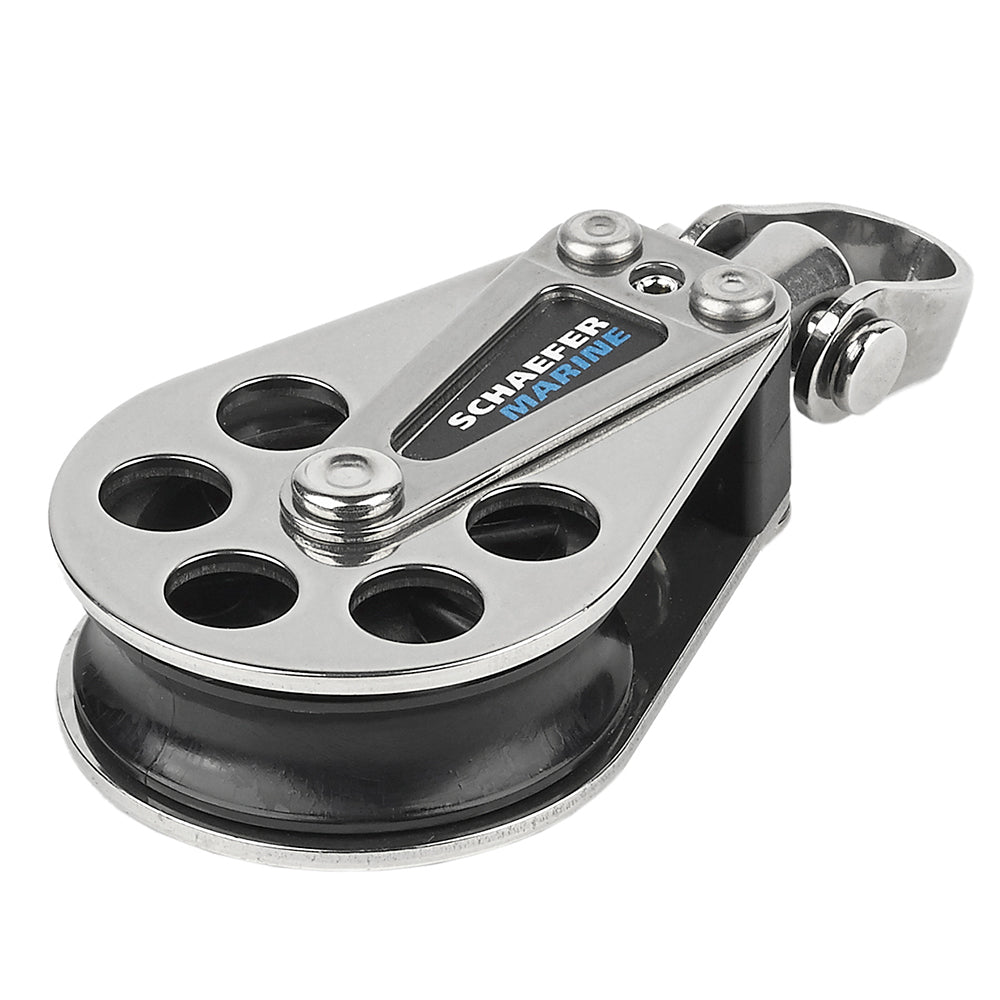

Schaefer Marine Single Stainless Steel Block with 51mm Sheave, Part 505-05

Single Stainless Steel Block - 51mm Sheave

Single block with stainless steel cheeks. Delrin sheave ensures smooth operation and high safe working load.

Specifications:

Sheave Dia. 2" (51mm)

Thickness 15/16" (24mm)

Width 2 1/8" (54mm)

Length 4 13/32" (112mm)

SWL 1750 lbs. (795kg)

Weight 7.1oz (201g)

Max Line 7/16" (11mm)

The Schaefer Marine Single Stainless Steel Block with a 51mm sheave offers durable performance and reliable operation for marine and industrial applications. Crafted with stainless steel cheeks, this block provides excellent corrosion resistance and strength in demanding environments. The Delrin sheave ensures smooth line movement and minimizes wear, making it suitable for high-load situations. With a safe working load of 1,750 pounds, it is designed to handle heavy-duty tasks while maintaining lightweight portability. The compact dimensions make it easy to install and use in various rigging configurations, whether for sailing or other marine activities. Its durable construction and high-quality materials make it a dependable choice for professional and recreational use alike. The block is suitable for lines up to 7/16 inch (11mm) in diameter, ensuring versatility across different applications. Whether upgrading existing rigging or installing new hardware, this stainless steel block provides longevity and dependable performance in saltwater and freshwater environments alike.

Features:

• Stainless steel cheeks for corrosion resistance and durability

• Delrin sheave for smooth operation and reduced line wear

• Safe working load of 1,750 lbs (795 kg)

• Compact design with a length of approximately 4 13/32 inches (112mm)

• Suitable for lines up to 7/16 inch (11mm) in diameter
