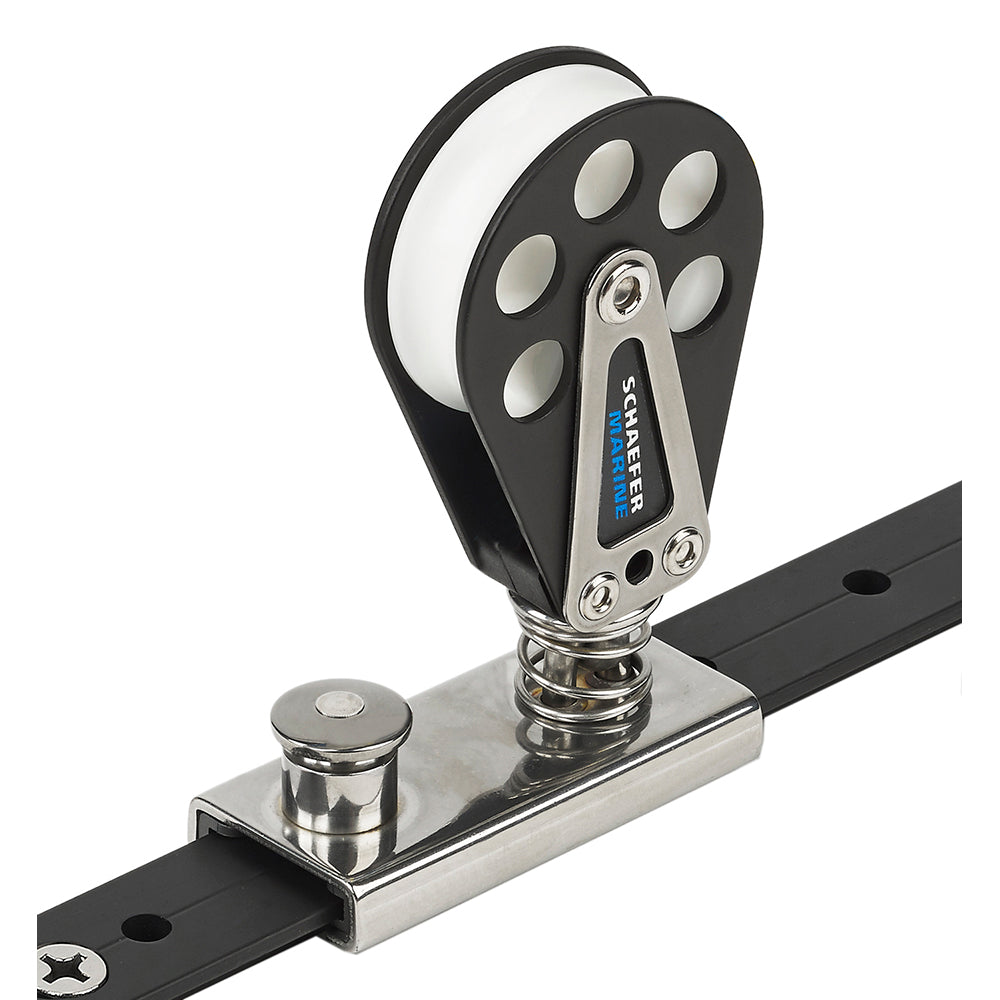

Schaefer Marine Spring Loaded Lined Aluminum Slide for 1-Inch T-Track (Part 504-82)

Spring Loaded/Lined Slide/Aluminum for 1" T-Track

Delrin sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

• Track Size 1" x 1/8" (25 mm x 3 mm)
• Max. Boat Length- 27' (8m)
• Max. Boat Weight- 5000 lbs. (2270 kgs)
• Sail Area- 315 sq. ft (29 m2)
• Sheave Diameter 2" (51 mm)
• Max Line 7/16" (11 mm)
• Length 3" (76 mm)
• Width 1-1/4" (31 mm)
• Height 4-5/32" (105 mm)
• Bearing Height 2-7/32" (56 mm)
• SWL 1750 lbs. (795 kg)
• Weight 7.0 oz. (198 g)

The Schaefer Marine Spring Loaded Lined Aluminum Slide (Part 504-82) is designed for smooth and reliable operation in marine applications. Featuring a durable Delrin sheave, this slide ensures efficient movement and can handle high safe working loads, making it suitable for boats up to 27 feet long with a maximum weight of 5,000 pounds. The anodized aluminum cheeks combined with a stainless steel slider provide enhanced durability and resistance to corrosion, ensuring long-lasting performance in harsh marine environments. The polyethylene liner and pin stop facilitate easy adjustments, allowing for precise positioning and secure hold during sailing or docking activities. This slide is compatible with 1-inch T-track systems and supports line diameters up to 7/16 inch, making it versatile for various rigging configurations. With a sheave diameter of 2 inches and a compact profile, it offers excellent clearance and smooth operation. The slide's lightweight design, weighing approximately 7 ounces, adds minimal weight to your rigging setup while providing maximum strength and reliability. Built to meet high safety standards, the Schaefer Marine slide is an essential component for enhancing your sailing or boating experience, combining durability, ease of use, and precise control. Whether upgrading existing rigging or designing new systems, this slide offers dependable performance in demanding marine conditions.

Features:

• Spring loaded and lined for smooth operation and easy adjustment

• Constructed with anodized aluminum cheeks and a stainless steel slider for corrosion resistance

• Delrin sheave ensures durability and high safe working load

• Polyethylene liner and pin stop facilitate precise adjustments

• Compatible with 1-inch T-track systems and supports line diameters up to 7/16 inch

• Supports boats up to 27 feet long and 5,000 pounds in weight

• Sheave diameter of 2 inches for efficient line handling

• Lightweight design at approximately 7 ounces for minimal added weight
