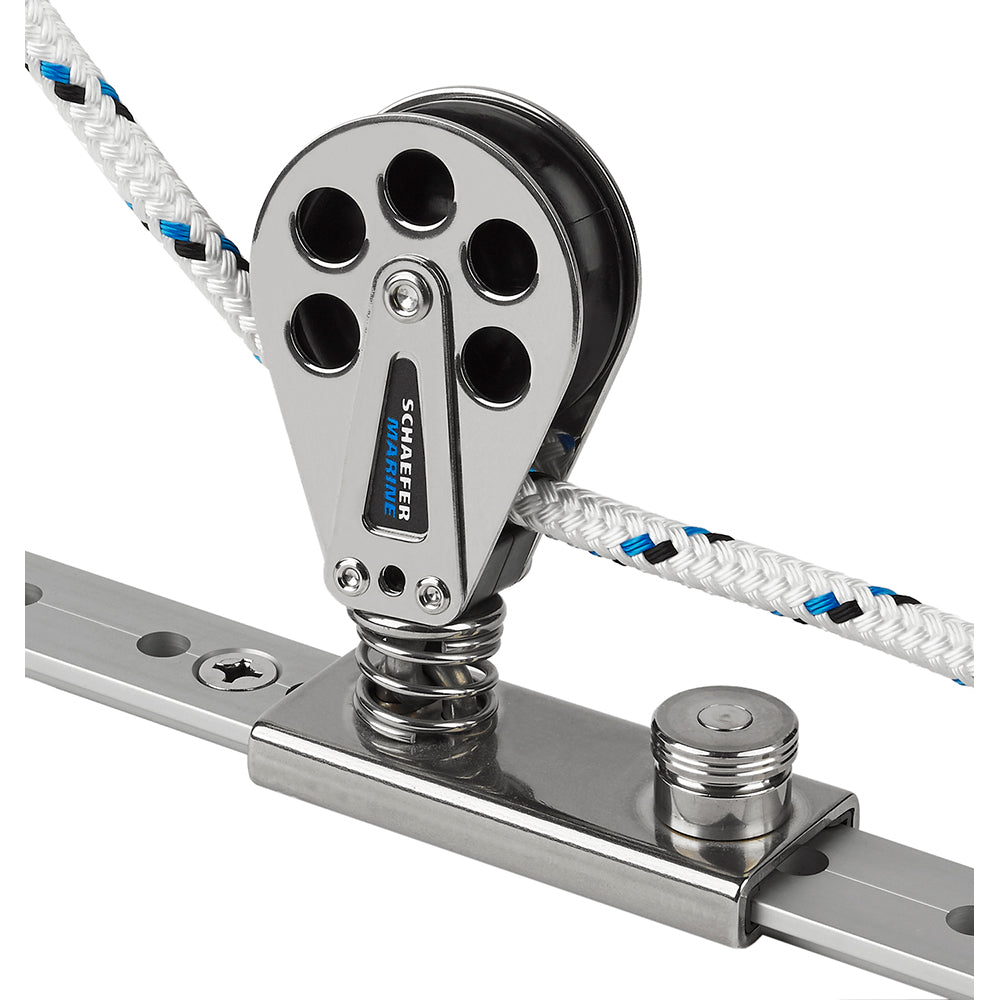

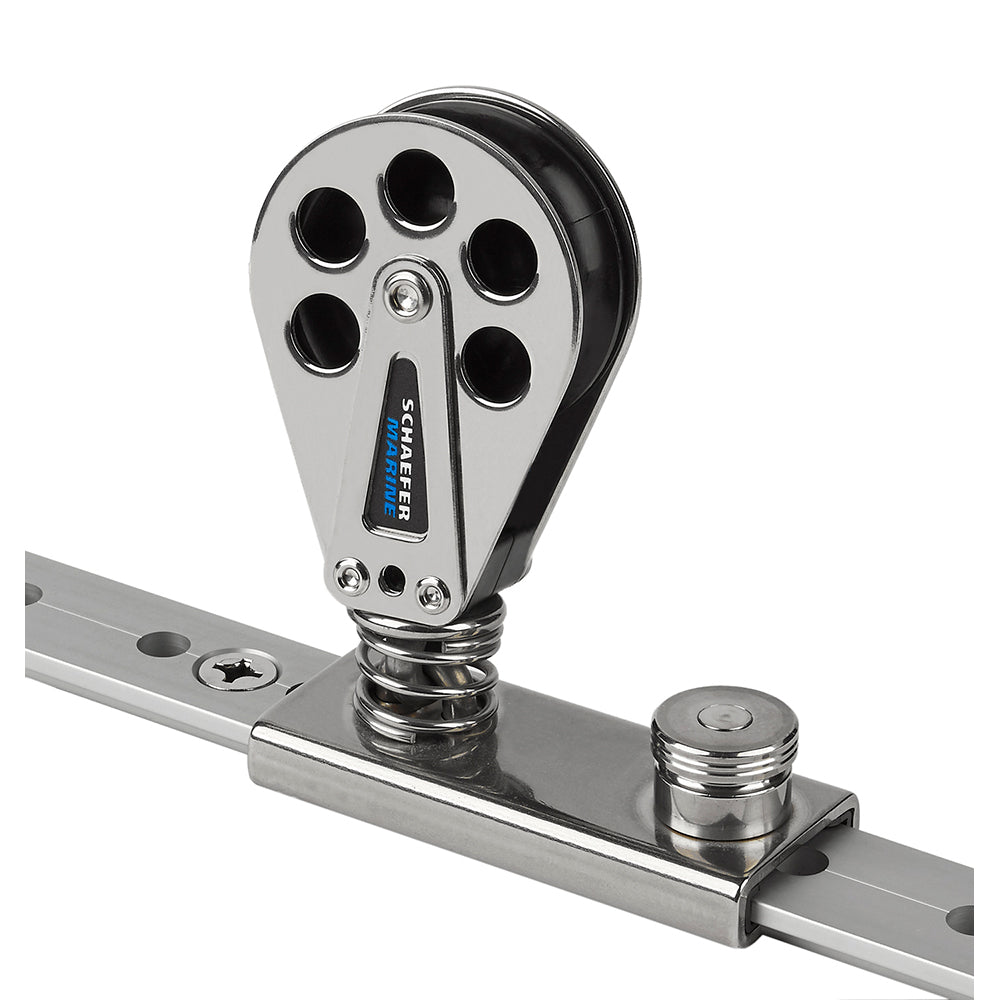

Schaefer Marine Spring Loaded Lined Stainless Steel Slide for 1-1/4 inch T-Track

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track

Delrin sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

• Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
• Max. Boat Length 33' (10 m)
• Max. Boat Weight 12000 lbs. (5455 kg)
• Max. Sail Area 520 sq. ft. (48 m2)
• Sheave Diameter 2-3/8" (60 mm)
• Max Line 1/2" (12 mm)
• Length 4" (102 mm)
• Width 1-9/16" (39 mm)
• Height 4-15/16" (126 mm)
• Bearing Height 2-3/8" (67 mm)
• SWL 2250 lbs. (1020 kg)
• Weight 14 oz. (397 g)

The Schaefer Marine Spring Loaded Lined Slide (Part Number 705-92) is designed for efficient and reliable sailing equipment. Built with durable stainless steel cheeks and slider, it provides exceptional corrosion resistance and long-lasting performance in marine environments. The slide features a Delrin sheave that ensures smooth operation under high load conditions, making it suitable for boats up to 33 feet in length and weighing up to 12,000 pounds. The polyethylene liner and pin stop facilitate easy adjustments, allowing for quick tuning to accommodate changing sailing conditions.
Ideal for applications requiring secure and smooth line handling, this slide is compatible with 1/2-inch lines and fits standard 1-1/4-inch T-tracks measuring 3/16 inch thick. The sheave diameter of 2-3/8 inches provides ample clearance for lines, reducing wear and increasing efficiency. With a weight of just 14 ounces and compact dimensions, this slide offers a balance of strength and ease of installation. The maximum sail area supported is 520 square feet, making it perfect for a variety of recreational and performance sailboats.
The Schaefer Marine slide combines robust construction with thoughtful design features to ensure reliable performance over time. Whether replacing existing hardware or installing new rigging components, this slide offers a high safety working load of 2,250 pounds, providing confidence during demanding sailing conditions. Its corrosion-resistant materials and precise engineering make it an excellent choice for sailors seeking durable, low-maintenance hardware that enhances sailing performance and safety.

Features:

• Spring loaded mechanism for secure line management

• Lined with polyethylene for smooth operation and easy adjustment

• Constructed with stainless steel cheeks and slider for corrosion resistance

• Delrin sheave ensures smooth operation under high loads

• Compatible with 1/2 inch lines and 1-1/4 inch T-tracks

• Supports boats up to 33 feet and 12,000 pounds

• Maximum sail area of 520 square feet

• Lightweight at 14 ounces for easy handling and installation

• Robust design with a safety working load of 2,250 pounds
