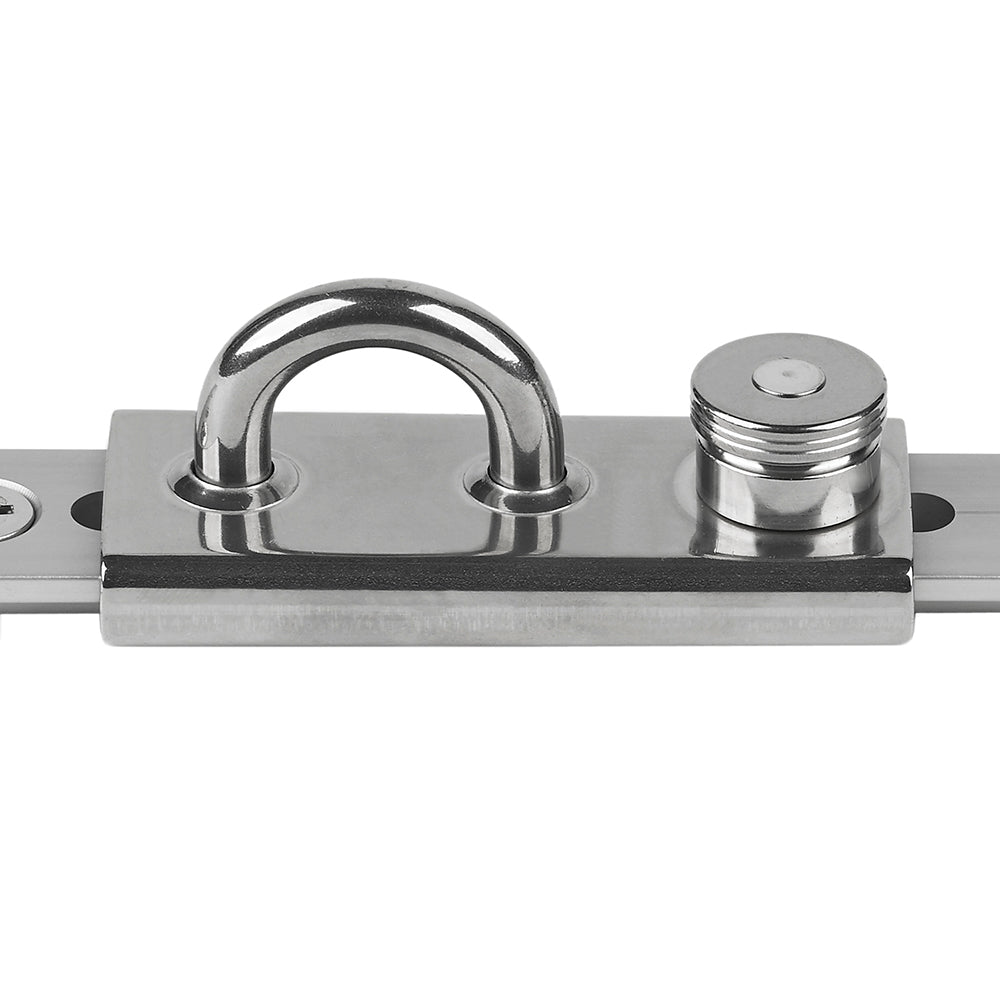

Schaefer Marine Stainless 1-1/4 inch T-Track Slider with Eye - Durable Marine Hardware

Stainless 1-1/4" T-Track Slider - Eye Slide/Lined

Specifications:

• Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
• Max. Boat Length 38' (10 m)
• Max. Boat Weight 12000 lbs. (5455 kg)
• Max. Sail Area 520 sq. ft. (48 m2)
• Length 4" (102 mm)
• Width 1-11/16" (43 mm)
• Height 1-3/4" (45 mm)
• Eye 1" (25 mm)
• Eye29/32" (23 mm)
• SWL 2500 lbs. (1134 kg)
• Weight 7.5 oz (213 g)

The Schaefer Marine Stainless 1-1/4 inch T-Track Slider with Eye is designed for reliable performance in marine applications. Crafted from high-quality stainless steel, this slider ensures resistance to corrosion and saltwater exposure, making it ideal for boat rigging, sailboat hardware, and other marine equipment. The track size measures 1-1/4 inches by 3/16 inches, providing a sturdy and smooth sliding mechanism that supports up to 2,500 pounds of load capacity. With a maximum boat length of 38 feet and weight capacity of 12,000 pounds, this slider is suitable for a wide range of vessel sizes and configurations. The eye size of 1 inch and dimensions of approximately 4 inches in length, 1-11/16 inches in width, and 1-3/4 inches in height make it versatile for various rigging setups. Weighing just 7.5 ounces, it combines durability with lightweight design for easy handling and installation. The Schaefer Marine T-Track Slider is engineered to withstand harsh marine environments while providing smooth, dependable operation. Whether you're upgrading existing hardware or constructing new rigging systems, this stainless steel slider offers strength, corrosion resistance, and ease of use, making it an essential component for sailors and boat owners seeking long-term performance and reliability.

Features:

• Track Size: 1-1/4 inches by 3/16 inches (32 mm x 5 mm)

• Max Boat Length: 38 feet (10 meters)

• Max Boat Weight Capacity: 12,000 pounds (5455 kg)

• Max Sail Area: 520 square feet (48 square meters)

• Overall Length: 4 inches (102 mm)

• Width: 1-11/16 inches (43 mm)

• Height: 1-3/4 inches (45 mm)

• Eye Diameter: 1 inch (25 mm)

• Swivel Eye Size: 29/32 inches (23 mm)

• Safe Working Load (SWL): 2,500 pounds (1134 kg)

• Weight: 7.5 ounces (213 grams)

• Material: Marine-grade stainless steel for corrosion resistance
