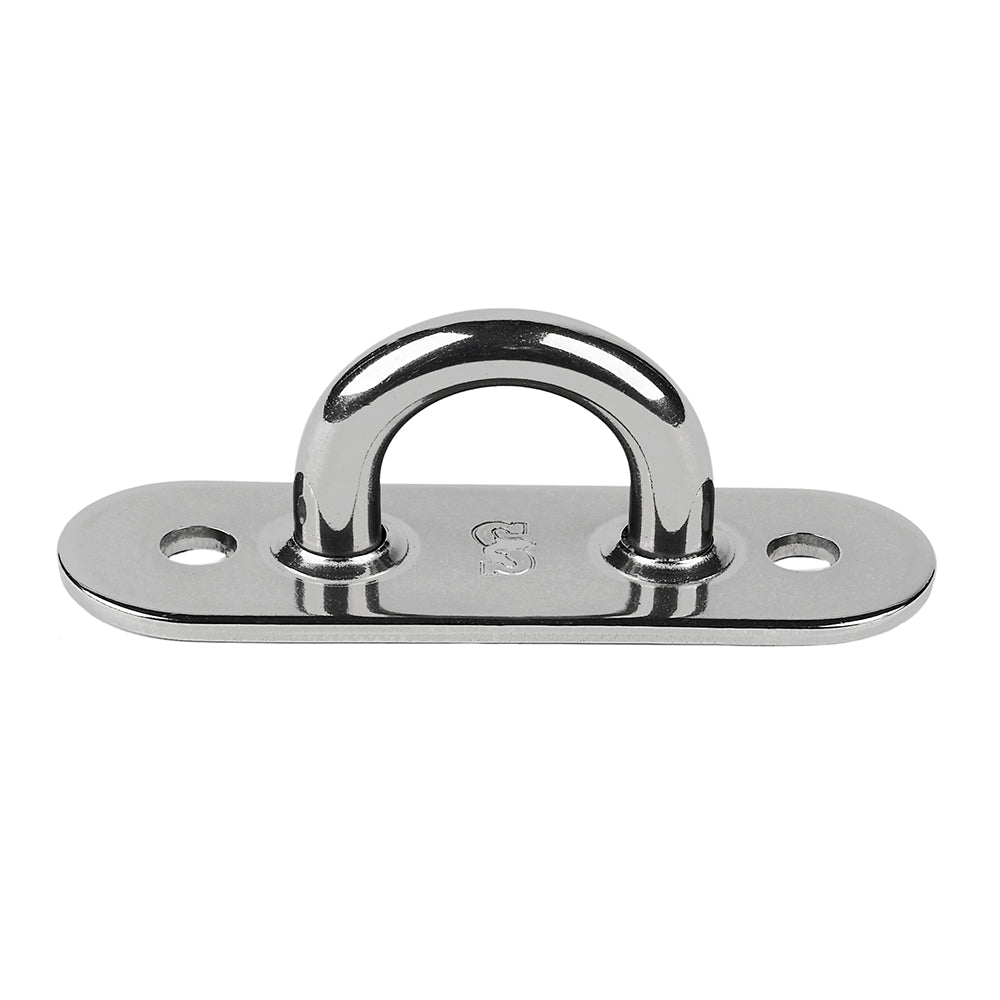

Schaefer Marine Stainless Steel Welded Pad Eye 3"L x 1"W for Heavy-Duty Marine Applications

Stainless Steel Welded Pad Eye - 3"L x 1"W

Specifications:

• Eye Width 7/8" (22 mm)
• Eye Height 7/8" (22 mm)
• Eye Stock 1/4" (6 mm)
• Length 3" (76 mm)
• Width 1" (25 mm)
• Fasteners (2), 1/4" RH (6 mm)
• C/C 2-3/16" (55 mm)
• SWL 2500 lbs. (1135 kg)
• Weight 3.25 oz. (92 g)

The Schaefer Marine Stainless Steel Welded Pad Eye, part number 78-01, is a reliable and durable hardware component designed for demanding marine environments. Crafted from high-quality stainless steel, this pad eye measures 3 inches in length and 1 inch in width, providing a secure attachment point for lifting, rigging, or securing loads aboard boats and ships. The eye opening features a 7/8-inch diameter, while the eye stock is 1/4 inch thick, ensuring strength and longevity in harsh conditions. Each pad eye includes two 1/4-inch right-hand threaded fasteners, facilitating straightforward installation and robust connection. With a working load limit of 2,500 pounds, it is suitable for various heavy-duty marine tasks, including securing sails, rigging, or anchoring equipment. Weighing approximately 3.25 ounces, this component combines strength with lightweight performance, making it ideal for applications where minimizing weight is critical. Designed by Schaefer Marine, this welded pad eye offers corrosion resistance, durability, and ease of use, ensuring long-term reliability in saltwater environments. Whether outfitting a new vessel or upgrading existing hardware, this stainless steel pad eye provides a trusted solution for secure and dependable rigging connections across a range of marine applications.

Features:

• Material: Made from corrosion-resistant stainless steel for durability in marine environments

• Dimensions: 3 inches in length and 1 inch in width, with an eye diameter of 7/8 inch

• Heavy-Duty Load Capacity: Supports up to 2,500 pounds, suitable for demanding applications

• Fasteners: Comes with two 1/4-inch right-hand threaded fasteners for secure attachment

• Lightweight: Weighs approximately 3.25 ounces for ease of handling and installation

• Design: Welded construction for enhanced strength and reliability

• Application: Ideal for lifting, rigging, and securing loads on boats, ships, and other marine equipment
