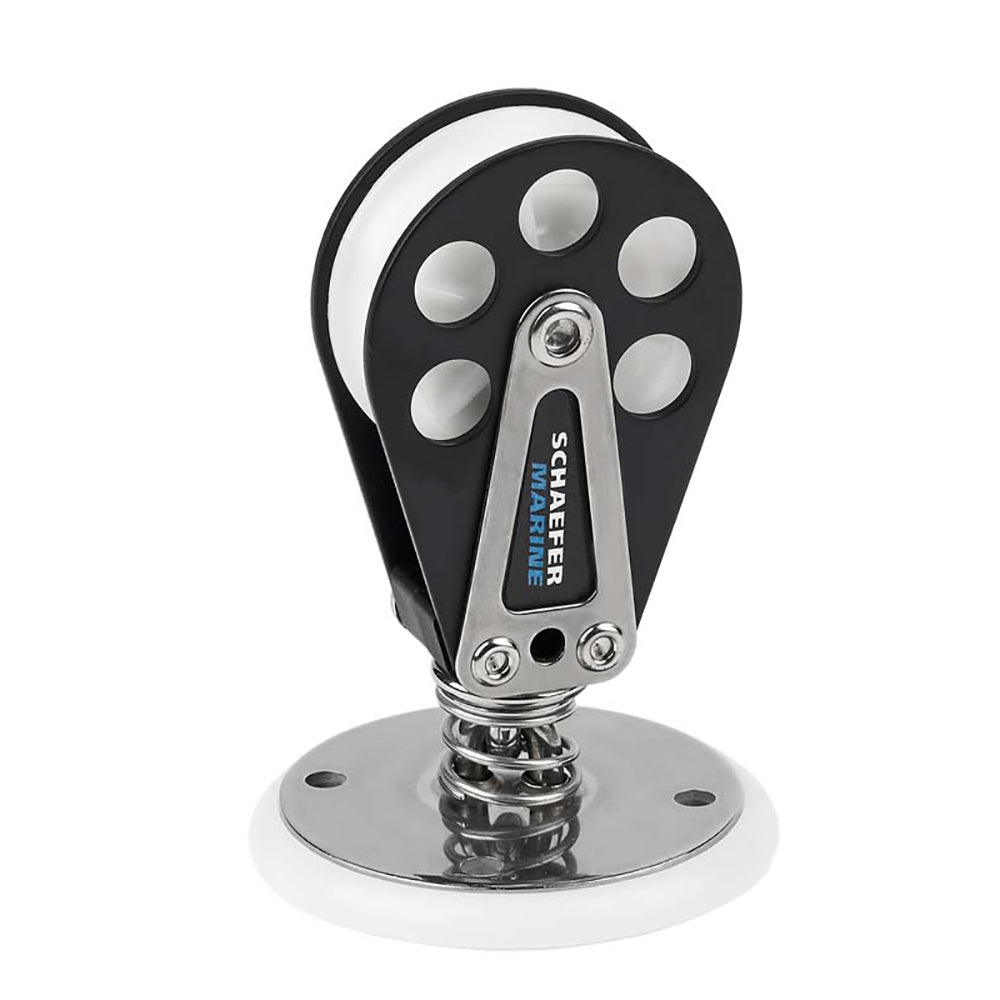

Schaefer Marine Stand-Up Swivel with Aluminum Cheeks, Part 504-62

Stand-Up Swivel with Aluminum Cheeks

Delrin sheave ensures smooth operation and high safe working load.

Specifications:

• Sheave Dia. 2" (51 mm)
• Max Line 7/16" (11 mm)
• Diameter includes urethane base 2-7/8" (73 mm)
• Height 4-1/32" (103 mm)
• H2 2-3/32" (54 mm)
• Fastener Size (4), #10 RH (5 mm)
• C/C 1-12/31" (36 mm)
• SWL 1750 lbs. (790 kg)
• Weight Alum. 7.0 oz. (198 g)
• #97-48 BACKING PLATE SOLD SEPARATELY

The Schaefer Marine Stand-Up Swivel with Aluminum Cheeks is designed for reliable performance in demanding marine applications. Featuring a durable Delrin sheave, this swivel ensures smooth operation and can handle a safe working load of up to 1,750 pounds. Its aluminum cheeks provide strength and corrosion resistance, making it suitable for harsh environments. The swivel's sheave has a diameter of 2 inches, accommodating lines up to 7/16 inch in diameter, with a urethane base total diameter of approximately 2-7/8 inches. Its overall height measures around 4 inches, and the H2 dimension is just over 2 inches. The fastener size is #10 RH (5 mm), with a center-to-center distance of approximately 1-12/31 inches. Weighing only 7 ounces, this swivel is lightweight yet robust, ideal for marine rigging and lifting applications. Please note that the #97-48 backing plate is sold separately. Designed for ease of installation and high performance, the Schaefer Stand-Up Swivel is a dependable choice for boaters and marine professionals seeking durable hardware that withstands the rigors of the sea.

Features:

• Durable Delrin sheave for smooth operation

• Aluminum cheeks for corrosion resistance and strength

• Maximum safe working load of 1,750 lbs

• Sheave diameter of 2 inches suitable for lines up to 7/16 inch

• Overall height approximately 4 inches for versatile installation
