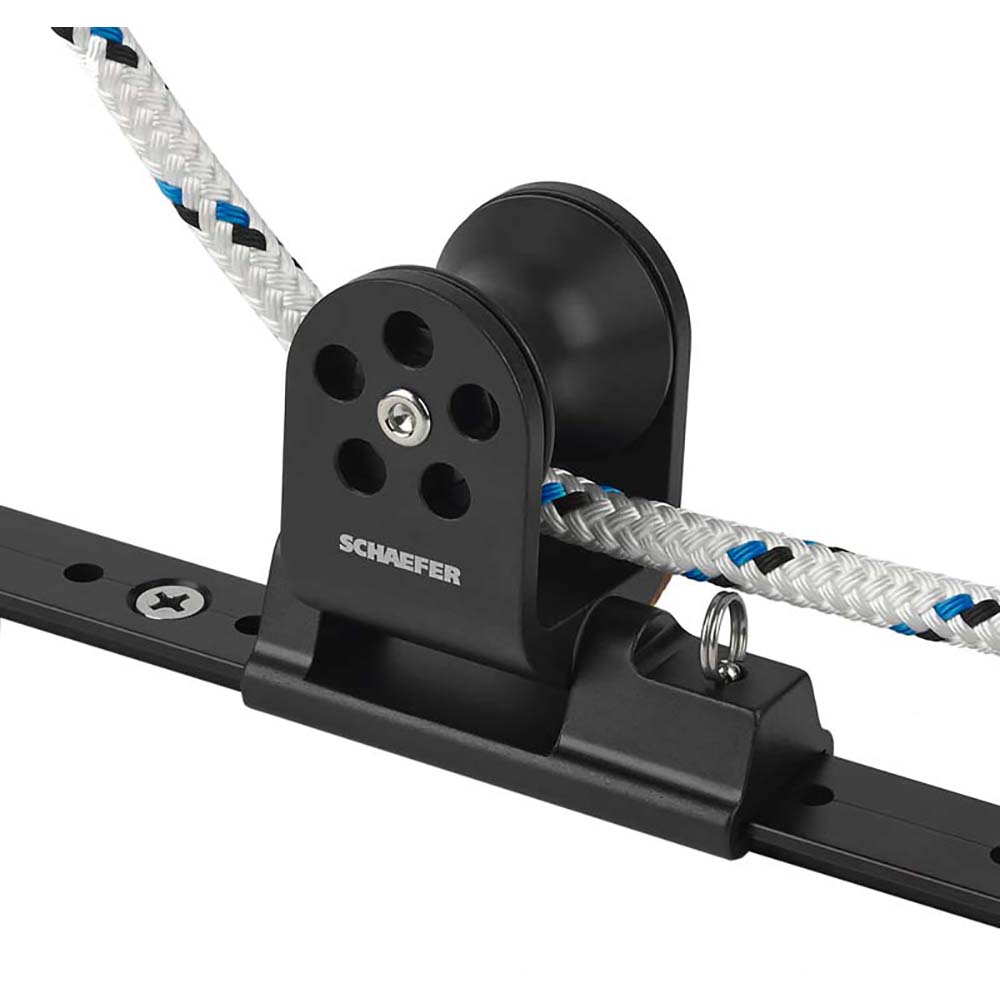

Schaefer Marine Twin Sheet Lead 25x3MM - Black for Sailboats Up to 29 Feet

Twin Sheet Lead 25x3MM - Black

32-77 Twin Sheet Lead block. The anodized aluminum body is machined from 6061-T6 aluminum and articulates to ensure a proper lead. Anodized aluminum sheave runs on Nomex/Teflon bearing for a low-friction high strength sheave. Pin stop makes adjustment simple.

Features:

• Track Size 1" x 1/8" (25 mm x 3 mm)
• Boat Size Up To LOA 29'
• Disp. 5000 lbs.
• Sail Area 315 sq. ft (8m, 2270 kg, 29 m2)
• Sheave Dia. 1-1/2" (38 mm)
• Max Line (2) 1/2" (13 mm)
• L 3-1/2" (89 mm)
• W 1-11/32" (34 mm)
• H 3-9/32" (83 mm)
• Bearing Height 1-29/32" (49 mm)
• SWL 2500 lbs. (1135 kg)
• Weight 10 oz. (284 g)

The Schaefer Marine Twin Sheet Lead 25x3MM in black is designed to optimize sailboat performance by providing a reliable and adjustable lead system. Crafted from durable anodized 6061-T6 aluminum, this lead block features an articulation mechanism that ensures a proper lead angle for improved sail control. The anodized aluminum sheave operates smoothly on a Nomex/Teflon bearing, offering low friction and high strength for efficient sailing. The inclusion of a pin stop simplifies adjustments, allowing for quick and precise modifications to suit varying sailing conditions. Its robust construction and thoughtful design make it suitable for boats up to 29 feet in length, capable of handling a maximum line diameter of 1/2 inch with a working load limit of 2,500 pounds. The sheave's 1-1/2 inch diameter ensures smooth operation, reducing wear on lines and enhancing overall sailing performance. Compact yet powerful, this lead block weighs only 10 ounces, making it easy to handle and install without adding unnecessary weight to your vessel. Whether you're upgrading existing rigging or installing a new lead system, the Schaefer Twin Sheet Lead 25x3MM provides durability, ease of adjustment, and reliable performance for serious sailors seeking optimal sail control.

Features:

• Track Size: 1 inch x 1/8 inch (25 mm x 3 mm)

• Suitable for boats up to 29 feet LOA

• Maximum line capacity: 1/2 inch (13 mm)

• Displacement: 5,000 lbs.

• Designed for sail area up to 315 sq. ft (8 m), 2,270 kg, 29 m²

• Sheave Diameter: 1-1/2 inch (38 mm)

• Weight: 10 oz. (284 g)

• Bearing height: 1-29/32 inch (49 mm)

• SWL (Safe Working Load): 2,500 lbs. (1,135 kg)
