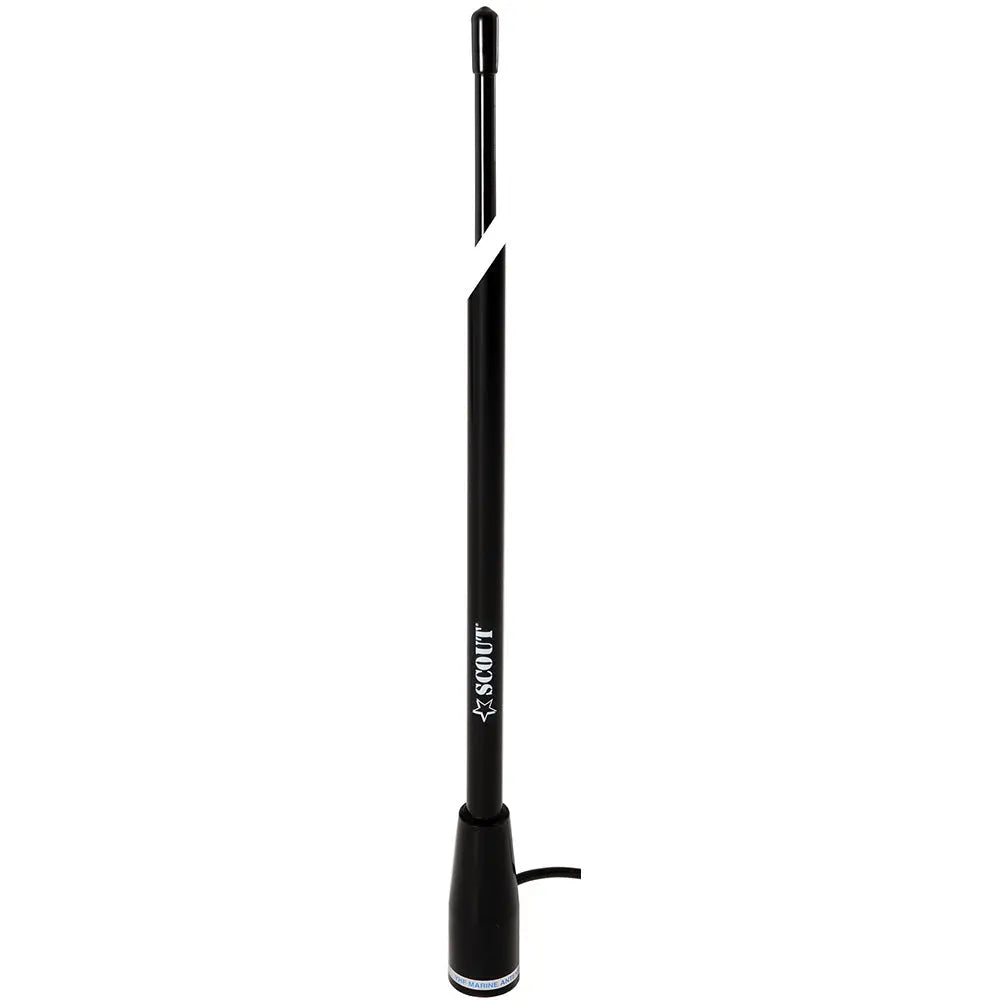

Scout 5' Black VHF Antenna with 3dB Gain and 5M RG-58 Coax - Model PF AN NVHF00004T

5 Black VHF Antenna 3dB Nylon Ferrule with 5M RG-58 Coax KS-22

Theres no need to introduce this classic of marine communication. The antenna that has become a standard for users now meets the excellence of the patent 100% WATERPROOF.

Its built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and its ice white colored with a high gloss anti-UV filter to prevent color deterioration.

The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.

Features:

• Foam injected 100% WATERPROOF IP69
• AntiUV high gloss finish
• 5 m coaxial cable RG 58 CU MIL

Specifications:

• Frequency: 156-162 MHz
• Impedance: 50 ohms
• Electrical length: 1/2
• V.S.W.R.: < 1,5:1
• Polarization: Vertical
• Gain: 3 dB
• Max power input: 50 W
• DC ground: Yes
• Whip material: Fiberglass
• Coaxial cable: 5 m (16,4) RG 58 CU MIL
• Mounting: 1 x 14 thread
• Length: 1,5 m (5)
• Weight: 0,39 kilo

The Scout 5-foot Black VHF Antenna with 3dB gain and integrated 5-meter RG-58 coaxial cable offers reliable marine communication performance. Designed with durability and waterproofing in mind, this antenna features a fiberglass whip that is 1.4mm thick, fully foam injected with Scout's patented IP69 waterproof technology, ensuring it withstands harsh marine environments. Its high-gloss anti-UV white finish maintains color integrity over time, making it suitable for prolonged outdoor use. The inclusion of a 5-meter RG-58 MIL cable and a PL-259 connector simplifies installation, allowing for a seamless setup on various vessels. This antenna operates within the frequency range of 156-162 MHz, with a 50-ohm impedance and a maximum input power of 50W, making it ideal for VHF communication needs. Its vertical polarization and electrical length of half a wavelength contribute to optimal signal transmission and reception. The sturdy fiberglass whip and waterproof design make this antenna an essential component for marine communication systems that demand durability and performance. The Scout PF AN NVHF00004T is specially engineered to deliver clear, consistent signals for safety and navigation while withstanding the rigors of marine environments.
