Scout Wave 4-Inch White Omnidirectional TV Antenna with 25dB Gain and 10M Coax Cable

Wave 4 White TV Antenna Omnidirectional 25dB Gain with 10M, 75ohm, Cable

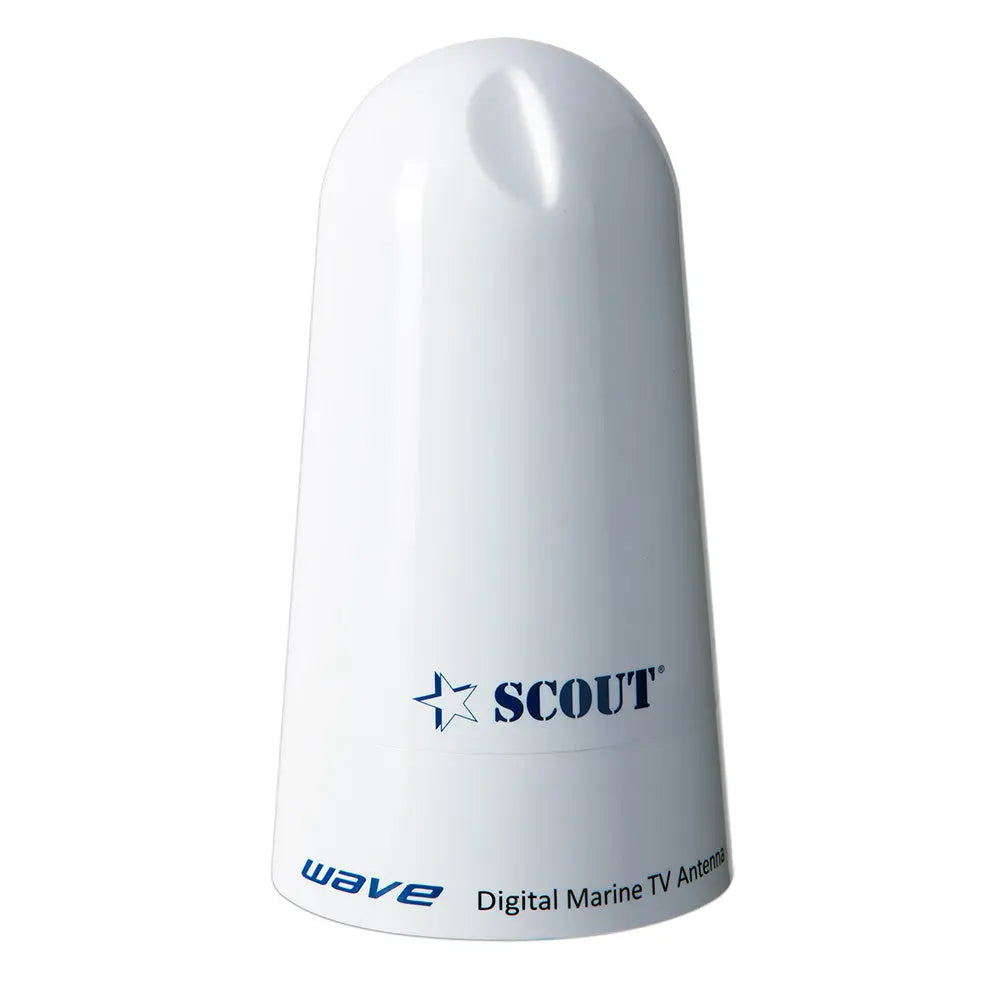

The Scout Wave is a compact-sized omnidirectional TV/FM antenna of only 105 mm (4) diameter and 200 mm (8) height, designed to receive all available analogue and digital terrestrial TV, FM signals through a 360-degree radius, ideal for any type of boat.

Omnidirectional design eliminates the time needed to locate the direction of the TV and radio transmitter, and the built-in high-gain amplifier (25 dB) with low noise figure guarantees an excellent picture quality, both on horizontal and vertical polarization. The splitter/power inserter included with the antenna allows you to connect two devices at the same time, a TV or an FM radio.

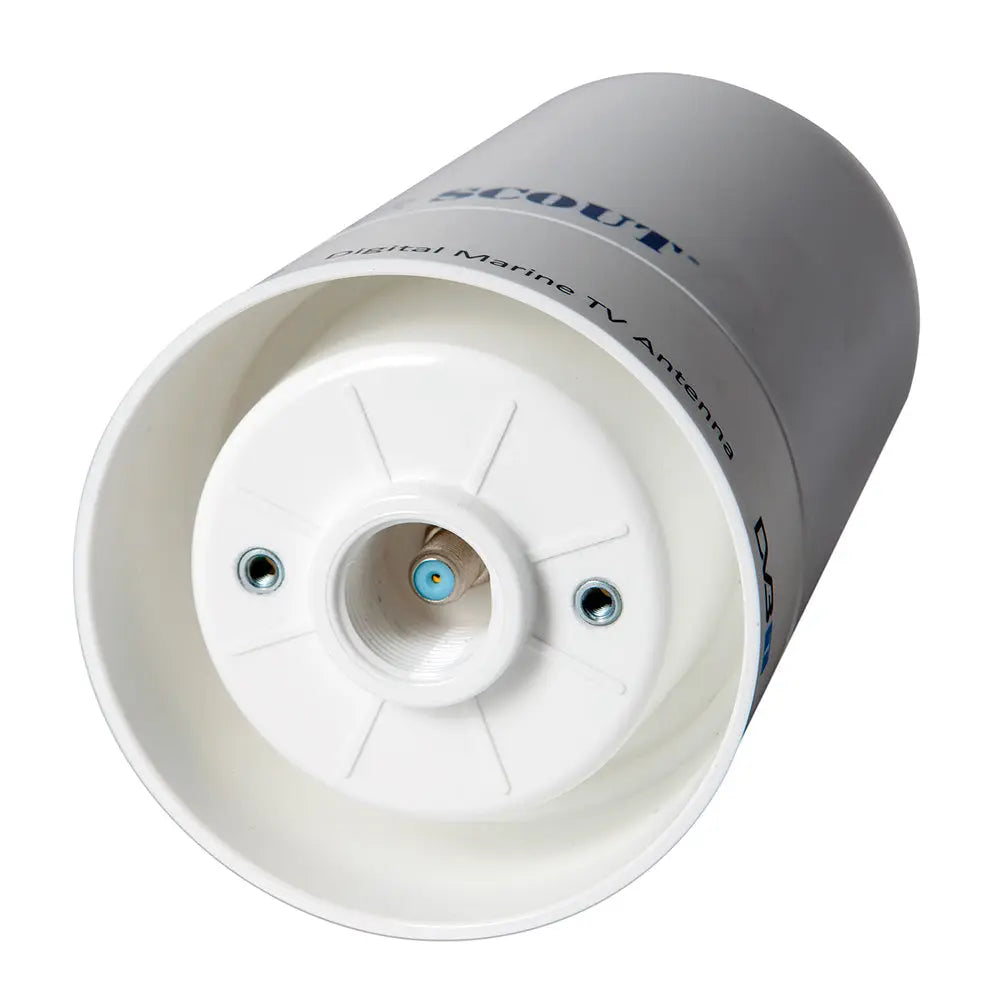

The waterproof casing is UV-inhibited, to avoid color deterioration, and easy to install both on standard 1 x 14 threaded mounts and on deck as a permanent, through-hole mount solution (onto a non-metal surface or enclosure).

Wave is supplied together with the complete installation set that includes:

• 12V power inserter/splitter 2 outputs
• 12V fused power cable
• Coax cable 75 Ohm 10 m (33)
• TV cable 1 m (3.3)
• F-type connector (2 pcs)
• Screw (2 pcs)
• Washer (4 pcs)
• Grower washer (2 pcs)
• Nut (4 pcs)

Wiring of the whole system is easy and fast, and thanks to the 2-output power inserter, you can connect the TV and FM radio to the same antenna.

The exclusive design, the compact size of only 11 cm in diameter, and the superior picture quality make the Wave the perfect choice for boaters who want to enjoy premium TV and radio on board.

Features:

• Compact size
• Excellent picture quality
• Built-in high-gain amplifier (25 dB)
• Easy to install (mount/deck)

Specifications:

• Reception: Omnidirectional 360
• Frequency Range: 40-860 MHz
• Impedance: 75 ohms
• Channels: 2-69
• Gain: 25 dB
• Input power: 12V DC
• Noise: <1.7 dB
• Output: 2
• Connectors: F
• Antenna diameter: 11 cm (4)
• Height: 20 cm (8)
• Material: UV-resistant ASA

The Scout Wave 4-inch White TV Antenna is a compact, high-performance solution designed for marine environments, offering reliable reception of all available terrestrial TV and FM signals. Its omnidirectional design provides 360-degree coverage, eliminating the need to aim the antenna and ensuring effortless signal reception on boats of any size. Crafted from UV-resistant ASA material, the antenna withstands harsh outdoor conditions while maintaining its appearance. The built-in high-gain amplifier with 25 dB gain amplifies signals effectively, delivering crisp picture quality on both horizontal and vertical polarizations. The included splitter and power inserter allow you to connect a TV and FM radio simultaneously, simplifying installation and enhancing on-board entertainment options. The antenna's easy mounting options include standard threaded mounts and deck through-hole solutions suitable for non-metal surfaces, making setup quick and straightforward. Supplied with a complete installation kit—comprising a 12V power inserter, fused power cable, 10-meter coax cable, TV cable, F-type connectors, screws, washers, and nuts—this antenna is ready for reliable use right out of the box. Its compact size, measuring only 4 inches in diameter and 8 inches in height, makes it an unobtrusive addition to any vessel. Whether anchored or cruising, the Scout Wave antenna ensures you enjoy high-quality TV and radio reception with minimal effort, thanks to its superior design and robust components.

Features:

• Compact size for easy integration on boats

• Excellent picture and radio signal quality

• Built-in high-gain amplifier with 25 dB gain

• Omnidirectional reception for 360-degree signal coverage

• Simple installation with multiple mounting options
