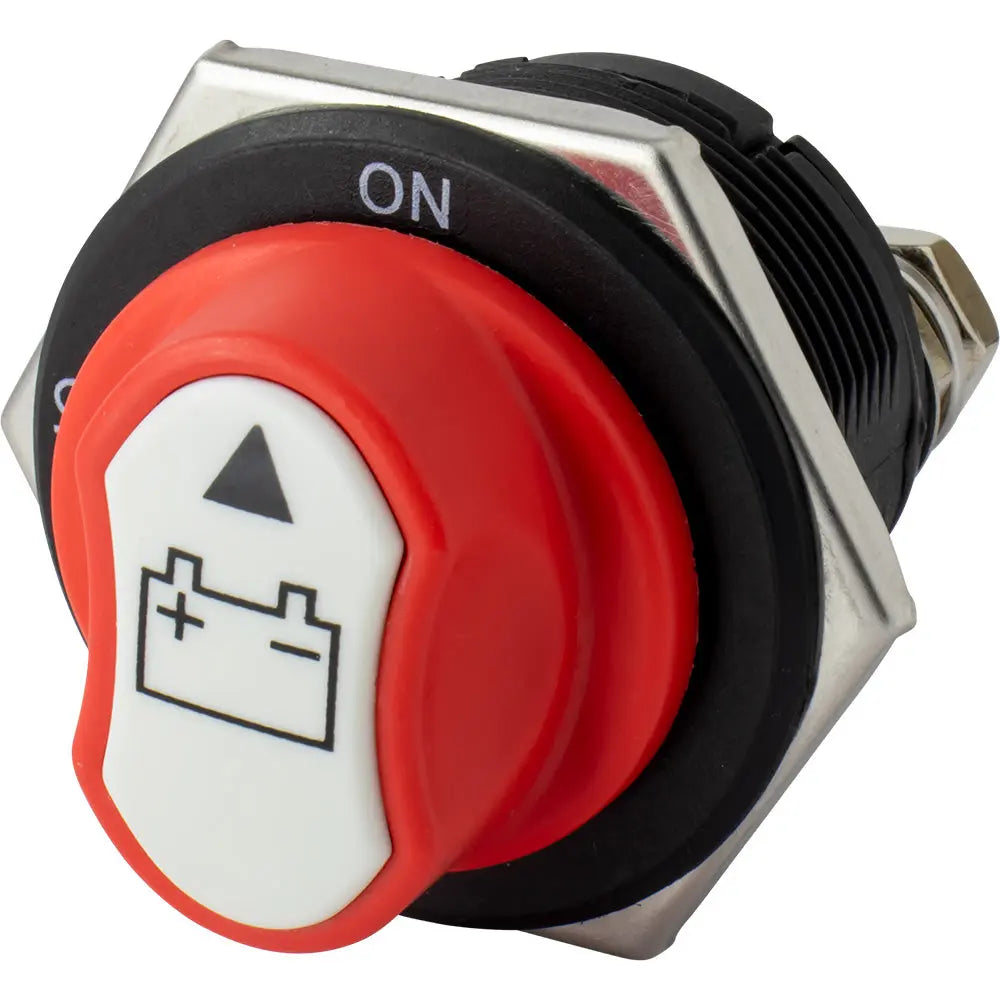

Sea-Dog Mini Battery Switch Key with Removable Knob - 32V, 300A

Mini Battery Switch Key with Removable Knob - 32V 300A

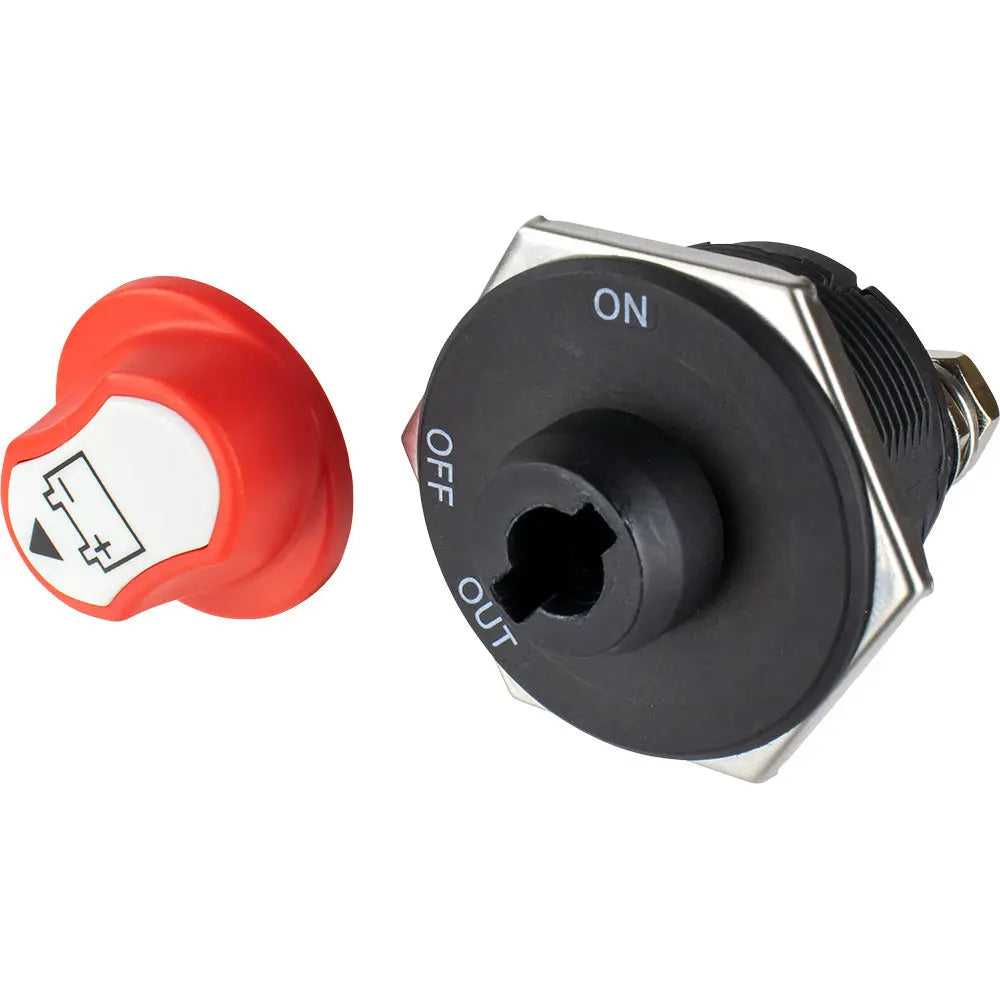

These Mini Battery Switches feature a removable knob for extra security. To remove, simply twist the cap to the OUT position and pull. Mini footprint makes it ideal for close quarters. The 422730-1 is rated at 300A continuous and 1000A cranking amps. Installation is as easy as drilling a 2-1/16" hole for the 422730-1, inserting the socket body, tightening the locking nut, and connecting the wires.

Features:

• 3 Switch positions: On, off, and out
• Constructed of machined brass and injection molded nylon

Specifications:

• Switch Face Width: (inch) 2-1/16"
• Volts: 32
• Amps: 300
• Stud Diameter: (inch) 5/16"

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Sea-Dog Mini Battery Switch Key with Removable Knob offers a compact and secure solution for controlling power in tight spaces. Designed for 32-volt systems, this switch is rated at 300 amps continuous and can handle up to 1000 amps during cranking, making it suitable for various marine and automotive applications. Its mini footprint allows for installation in confined areas where space is limited, simplifying wiring and mounting tasks. The removable knob feature enhances security by preventing unauthorized use; simply twist the cap to the OUT position and pull to remove the knob, reducing the risk of accidental operation or theft. Installation involves drilling a 2-1/16-inch hole, inserting the socket body, tightening the locking nut, and connecting the wires, making it straightforward even for those with basic installation experience. The switch's construction includes machined brass for durability and injection-molded nylon for electrical insulation, ensuring long-lasting performance under demanding conditions. With three switch positions—On, Off, and Out—it provides flexible control over power circuits, enhancing safety and operational convenience. This switch is ideal for marine, RV, or other vehicular applications where space efficiency and security are priorities. Please note the warning regarding chemical exposure, as the product contains substances known to the State of California to cause health risks. For additional safety information, visit P65Warnings.gov.

Features:

• Three switch positions: On, Off, and Out

• Removable knob for enhanced security

• Constructed of machined brass and injection-molded nylon

• Compact footprint for close-quarters installation

• Rated at 300 amps continuous and 1000 amps cranking

• Easy installation with a 2-1/16-inch mounting hole
