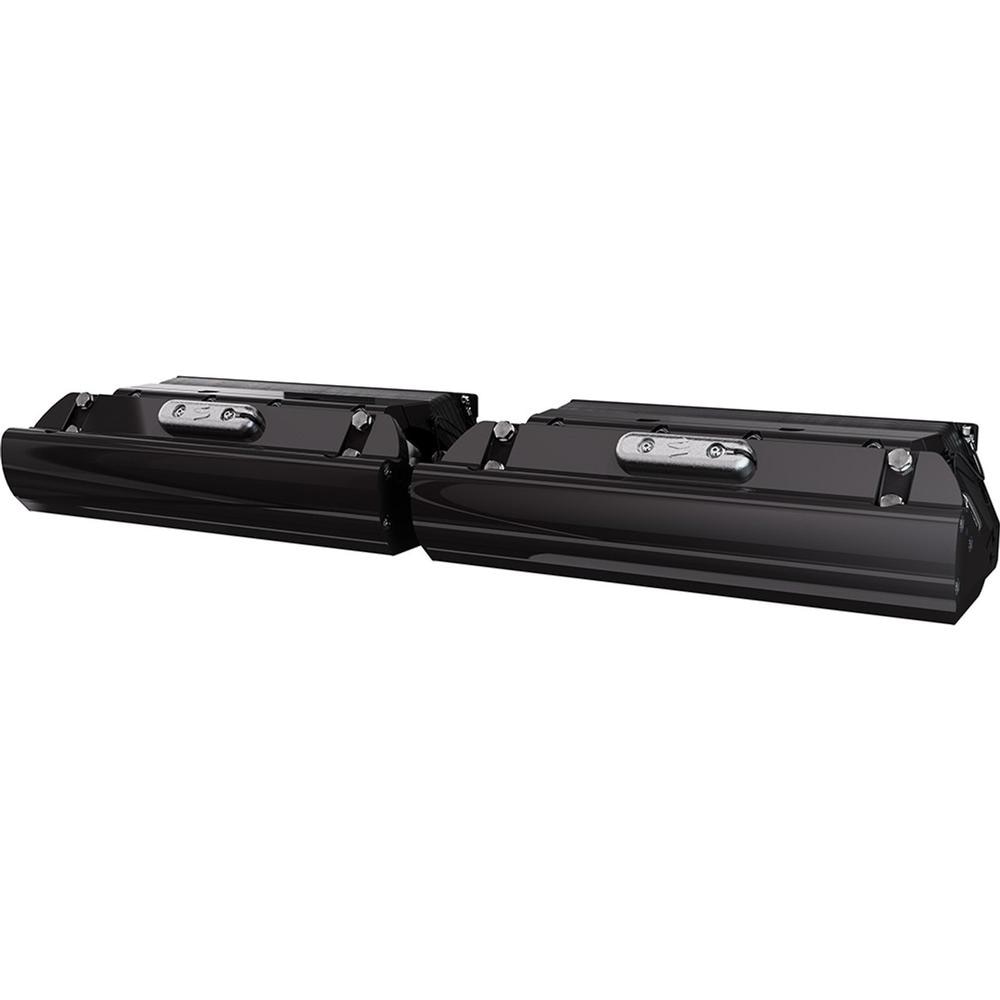

Seakeeper Ride 750 Quad Kit Without Keypad, Model 90882

The Seakeeper Ride 750 Quad Kit Without Keypad is a Vessel Attitude Control System designed for boats from 37 to 42 feet. Model 90882 uses four controllers per system to provide transom-mounted control of pitch, roll, and yaw. Its compact quad-controller configuration is intended for applications where transom space is limited while delivering the same span as two larger Seakeeper Ride 750 controllers.

Rotary blades deploy at a rate of up to 300 millimeters per second and make up to 100 adjustments every second. Proprietary inertial sensing hardware, software, and control technology monitor vessel behavior across all three axes and command blade deployment to counteract motion before it is felt. The system operates automatically, with no buttons to push or constant manual adjustments required.

Seakeeper Ride can eliminate up to 70% of underway pitch and roll, helping provide improved comfort, control, and confidence while boating. Automatic list control helps keep the deck level despite uneven or moving weight distribution, while automatic heeling-angle adjustment during turns supports a more comfortable ride and improved performance. The Trim Command Curve automatically sets the boat to its optimal running angle at a given speed.

The controllers mount to the boat's transom below the waterline. The drive train is completely sealed in a dry, greased environment, with no mechanical exposure to saltwater. The system uses 12-volt power and draws 14 to 16 amps at cruising speeds. This kit is supplied without a keypad.

Features:

• Boat Size: Designed for boats from 37 to 42 feet.
• Configuration: Four controllers per system for applications with limited transom space.
• Motion Control: Controls pitch, roll, and yaw through automatic blade deployment.
• Blade Response: Rotary blades deploy at up to 300 millimeters per second and make up to 100 adjustments every second.
• Automatic Operation: Proprietary sensing hardware and software predict and counteract vessel motion without constant manual adjustments.
• Motion Reduction: Can eliminate up to 70% of underway pitch and roll.
• List Control: Automatically manages list caused by uneven or moving weight distribution.
• Turn Control: Automatically adjusts the boat's heeling angle during turns.
• Trim Management: Trim Command Curve automatically sets the boat to its optimal running angle at a given speed.
• Saltwater Protection: Drive train is sealed in a dry, greased environment without mechanical exposure to saltwater.
• Power Requirement: Uses 12-volt power and draws 14 to 16 amps at cruising speeds.
• Keypad: Kit is supplied without a keypad.
